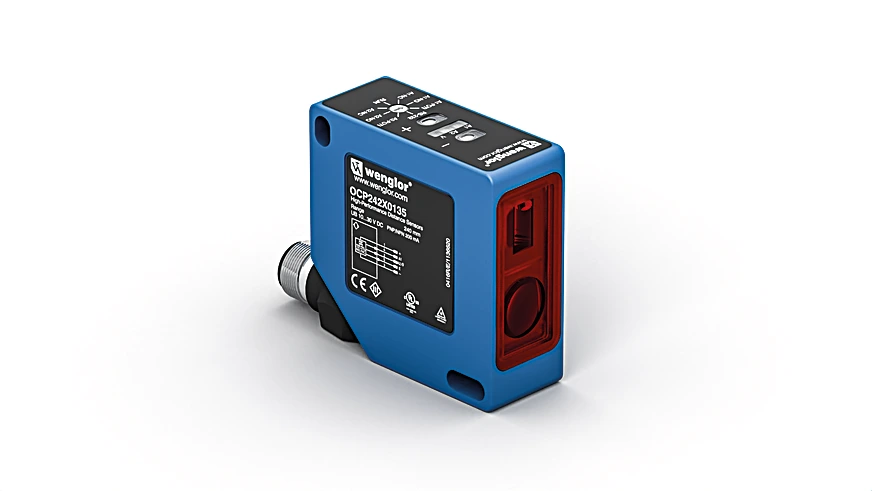

Wenglor OCP242X0135 Laser Distance Sensor Triangulation

Features

• Minimal switching hysteresis
• Switching point independent of material, color and brightness
• CMOS line array
• Highly accurate switching distance
• Range: 240 mm
• Setting Range: 40 to 240 mm
• Switching Hysteresis: < 0.5 %
• Light Source: Laser (red)
• Wavelength: 655 nm
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 1
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: see table 1
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 50 mA
• Switching Frequency: 300 Hz
• Response Time: 1.7 ms
• On-/Off-Delay (RS-232): 0 to 1 s
• Temperature Drift: < 15 µm/K
• Temperature Range: -13°F to 140°F
• Number of Switching Outputs: 2
• Switching Output Voltage Drop: < 1.5 V
• Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes

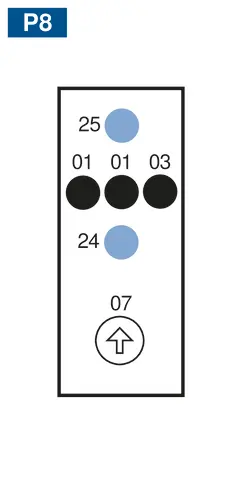

• Teach Mode: HT, VT, FT, TP
• Transmission rate: 9,600 Bd
• Protection Class: III
• FDA Accession Number: 1120718-000
• Setting Method: Teach-In
• Housing Material: Plastic, ABS, Plastic, PC
• Degree of Protection: IP67

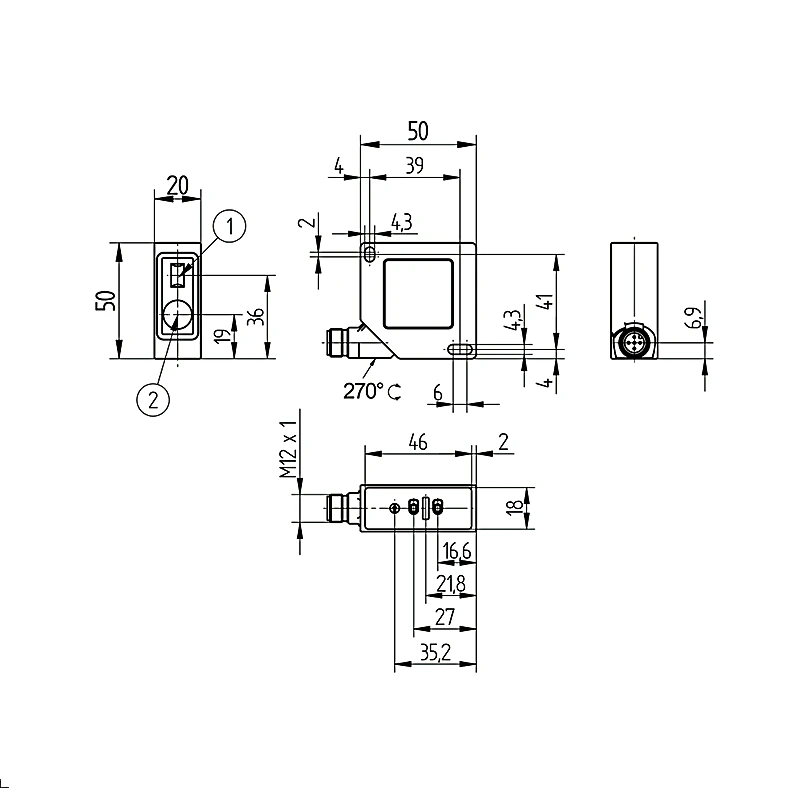

• Connection: M12 × 1; 4-pin
• Optic Cover: Plastic, PMMA
• Weight: 43 g
• MTTFd (EN ISO 13849-1): 918.59 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• Error Output: yes
• PNP NO: yes
• RS-232 with Adapterbox: yes
• External teach-in input: yes

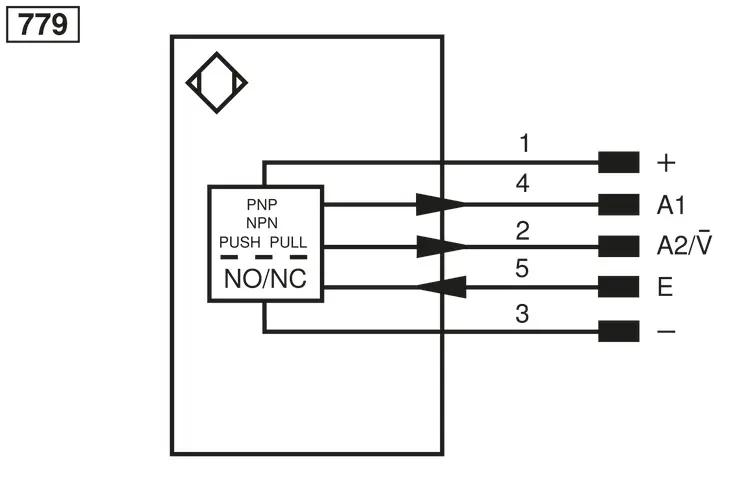

• Output: Error Output, Push-pull, NPN, PNP
• Circuit: NC, NC/NO, NO
• Other parameters: Off-delay, On-delay, Exposure time, Laser light, Switching hysteresis, Teach-in mode
• Detection Range: 40 mm, 240 mm
• Spot Size: 0,4 × 0,9 mm, 1,1 × 2,3 mm
• Complementary Products: Protective Housing ZSV-0x-01, Adapterbox A232, Set Protective Housing ZSP-NN-02, Software, Dust extraction tube
