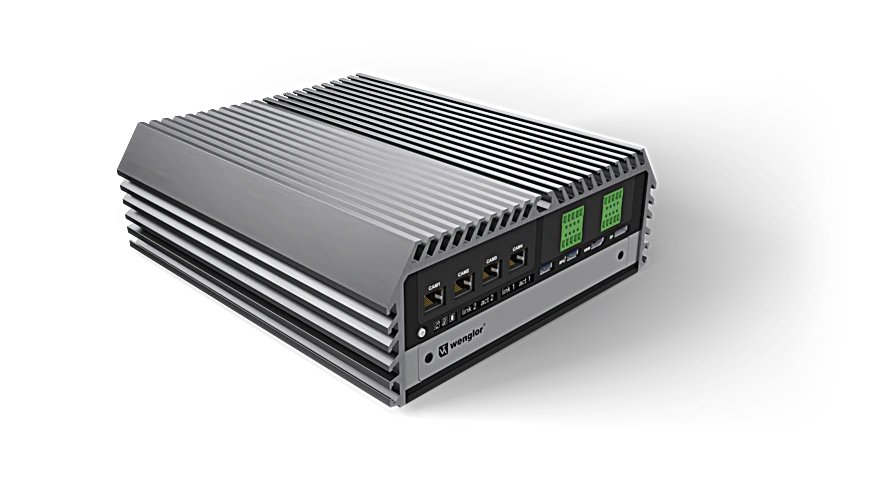

Wenglor MVCV001 Machine Vision Controller uniVision Robotics
Machine Vision Controller uniVision Robotics.
Overview
Features
- Wear and noise reduction thanks to passive, fanless cooling
- Increase efficiency by connecting up to 16 devices simultaneously

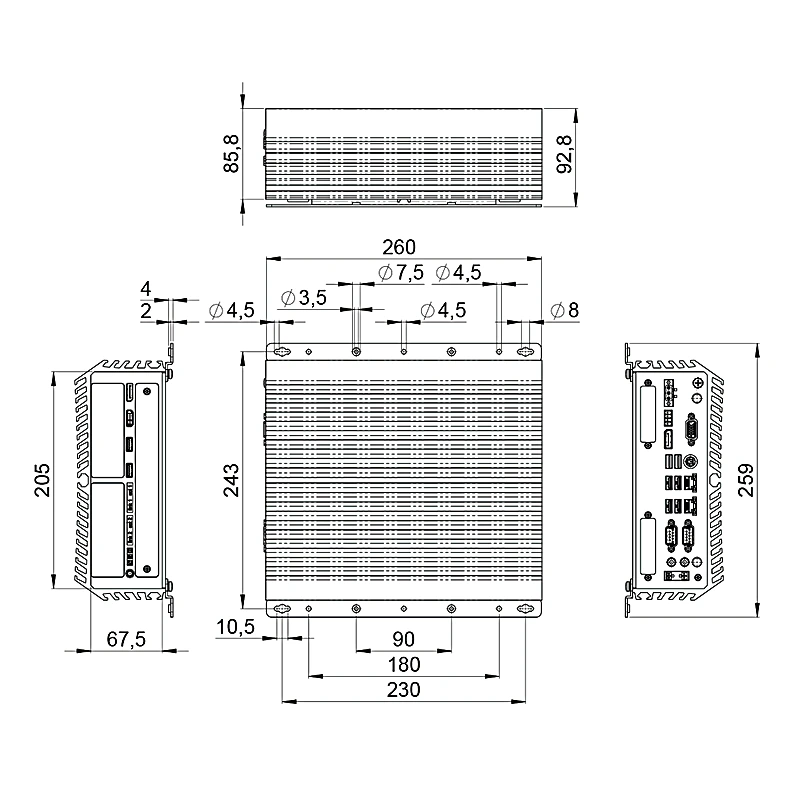

- Compact housing in 86 × 227 × 260 mm format
- Configurable uniVision software for evaluating images from machine vision cameras and height profiles from 2D/3D profile sensors
- Supply Voltage: 9 to 48 V DC
- Current Consumption (Ub = 24 V): < 5 A
- Max. power loss: 90 W
- Temperature Range: 32°F to 113°F
- Number of Digital Inputs: 8
- Number of USB 2.0 interfaces: 2
- Number of USB 3.0 interfaces: 6
- Number of CAM ports RJ45: 4
- Number of LAN ports RJ45: 2
- Number of display port interfaces: 2
- Number of VGA ports: 1
- Number of HDMI ports: 1
- Number of PS/2 ports: 1
- General protocols: Ethernet TCP/IP / UDP / FTP
- Housing Material: Aluminum, anodised
- Degree of Protection: IP40
- Wall mounting: yes
- Weight: 5,133 g
- MTTFd (EN ISO 13849-1): 42.4 a
- Software: uniVision 3
- License package: uniVision Robotics
- Processor: Intel® Core i7
- Clock Frequency: 4.4 GHz
- RAM: 16 GB
- Hard disk: 128 GB SSD
- Linux: yes
- NPN NO: yes
- Complementary Products: 2D/3D Profile Sensors MLSL/MLWL, BBVK/BBZK machine vision camera, Software, Machine vision controller license upgrade, EHSS001 Switch, Monitor ZNNG026, Key Pad Z0044
Description
The machine vision controller is a CPU for evaluating data from image processing products. Initial startup is also quick and easy with the pre-installed and powerful image processing software. A large number of interfaces are available for outputting results, allowing up to 16 devices to be connected simultaneously. The uniVision Robotics license upgrade expands the functional scope of the machine vision controller (MVC) software to interfaces for robotic weld seam tracking and robotic vision. This enables the MVC and robots to communicate directly.
