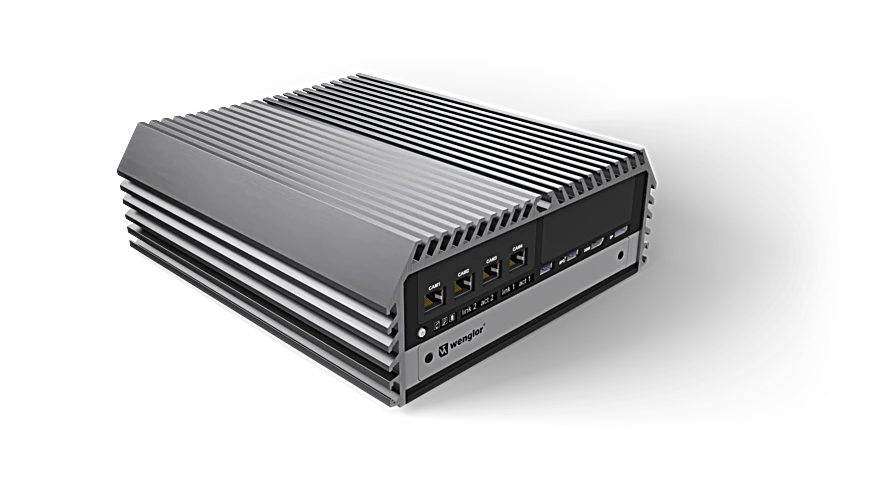

Wenglor MVCP101 Machine Vision Controller uniVision Script

Machine Vision Controller uniVision Script.

$22,792.00
Part Number
  • MVCP101
Highlights...

Features

  • Wear and noise reduction thanks to passive, fanless cooling
  • Increase efficiency by connecting up to 16 devices simultaneously

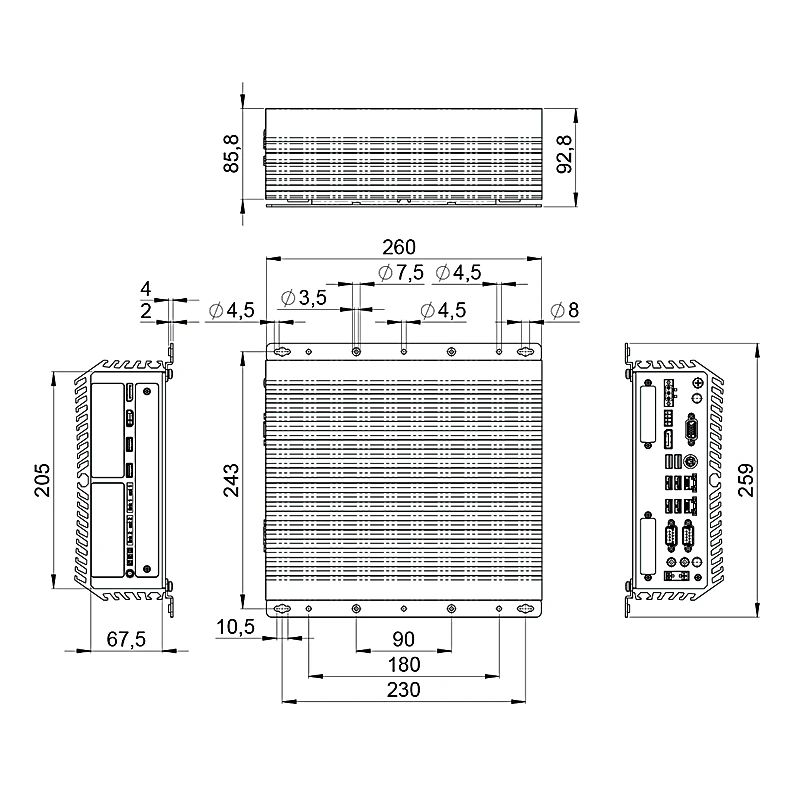

  • Compact housing in 86 × 227 × 260 mm format
  • Configurable uniVision software for evaluating images from machine vision cameras and height profiles from 2D/3D profile sensors
  • Supply Voltage: 9 to 48 V DC
  • Current Consumption (Ub = 24 V): < 5 A
  • Max. power loss: 90 W
  • Temperature Range: 32°F to 113°F
  • Number of USB 2.0 interfaces: 2
  • Number of USB 3.0 interfaces: 6
  • Number of CAM ports RJ45: 4
  • Number of LAN ports RJ45: 2
  • Number of RTE ports RJ45: 2
  • Number of display port interfaces: 2
  • Number of VGA ports: 1
  • Number of HDMI ports: 1
  • Number of PS/2 ports: 1
  • Industry protocols: EtherCAT / PROFINET I/O, CC-C / EtherNet/IP™
  • General protocols: Ethernet TCP/IP / UDP / FTP
  • Housing Material: Aluminum, anodised
  • Degree of Protection: IP40
  • Wall mounting: yes
  • Weight: 5,133 g
  • MTTFd (EN ISO 13849-1): 42.4 a
  • Software: uniVision 3
  • License package: uniVision Script
  • Processor: Intel® Core i7
  • Clock Frequency: 4.4 GHz
  • RAM: 16 GB
  • Hard disk: 128 GB SSD
  • Linux: yes
  • NPN NO: yes
  • Complementary Products: 2D/3D Profile Sensors MLSL/MLWL, BBVK/BBZK machine vision camera, Software, Machine vision controller license upgrade, EHSS001 Switch, Monitor ZNNG026, Key Pad Z0044
The machine vision controller is a CPU for evaluating data from image processing products. Quick initial startup is made possible by the pre-installed and powerful easy-to-use image processing software. A large number of interfaces are available for outputting results, allowing up to 16 devices to be connected simultaneously. Thanks to the uniVision Script license package, users can switch flexibly between parametrization and programming solutions. Seamless integration of HALCON scripts enables secure and flexible data exchange.
