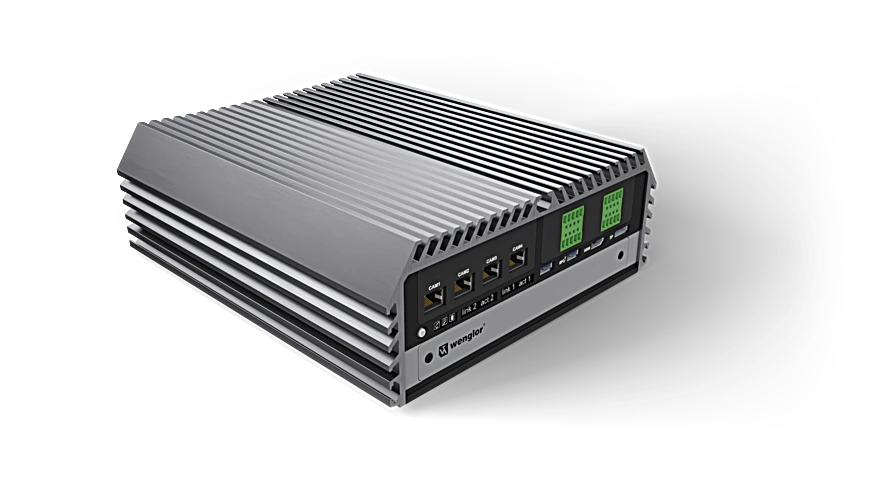

Wenglor MVCM001 Machine Vision Controller uniVision

Machine Vision Controller uniVision.

$12,628.00
Part Number
  • MVCM001
Highlights...

Features

  • Wear and noise reduction thanks to passive, fanless cooling
  • Increase efficiency by connecting up to 16 devices simultaneously

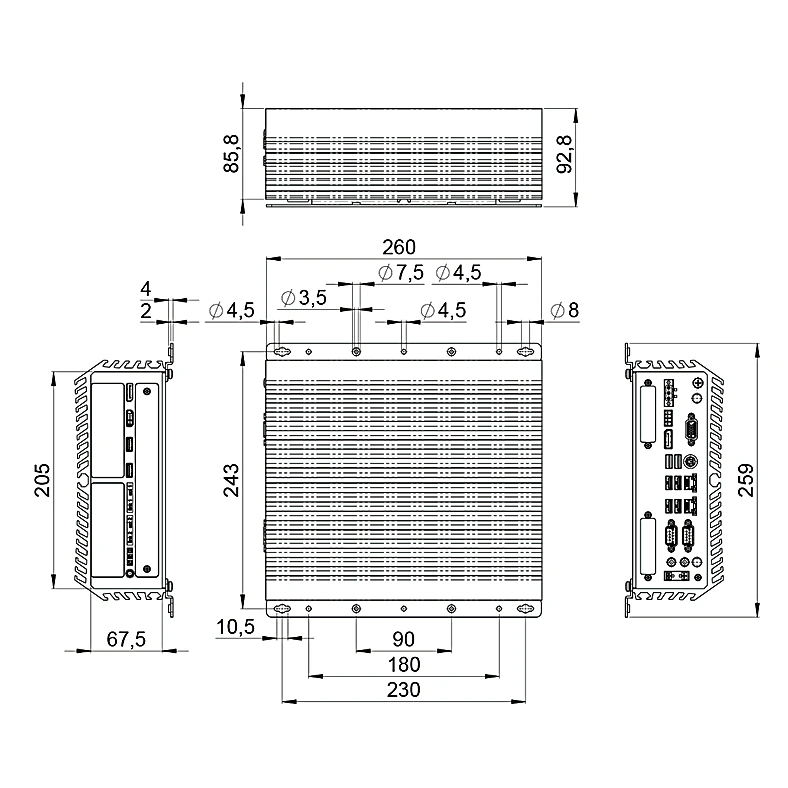

  • Compact housing in 86 × 227 × 260 mm format
  • Configurable uniVision software for evaluating images from machine vision cameras and height profiles from 2D/3D profile sensors
  • Supply Voltage: 9 to 48 V DC
  • Current Consumption (Ub = 24 V): < 5 A
  • Max. power loss: 90 W
  • Temperature Range: 32°F to 113°F
  • Number of Digital Inputs: 8
  • Number of USB 2.0 interfaces: 2
  • Number of USB 3.0 interfaces: 6
  • Number of CAM ports RJ45: 4
  • Number of LAN ports RJ45: 2
  • Number of display port interfaces: 2
  • Number of VGA ports: 1
  • Number of HDMI ports: 1
  • Number of PS/2 ports: 1
  • General protocols: Ethernet TCP/IP / UDP / FTP
  • Housing Material: Aluminum, anodised
  • Degree of Protection: IP40
  • Wall mounting: yes
  • Weight: 5,133 g
  • MTTFd (EN ISO 13849-1): 42.4 a
  • Software: uniVision 3
  • License package: uniVision
  • Processor: Intel® Core i7
  • Clock Frequency: 4.4 GHz
  • RAM: 16 GB
  • Hard disk: 128 GB SSD
  • Linux: yes
  • NPN NO: yes
  • Complementary Products: 2D/3D Profile Sensors MLSL/MLWL, BBVK/BBZK machine vision camera, Software, Machine vision controller license upgrade, EHSS001 Switch, Monitor ZNNG026, Key Pad Z0044
The machine vision controller is a CPU for evaluating data from image processing products. Initial startup is also quick and easy with the pre-installed and powerful image processing software. A large number of interfaces are available for outputting results, allowing up to 16 devices to be connected simultaneously. Additional software modules can be added at any time using upgrade licenses.
