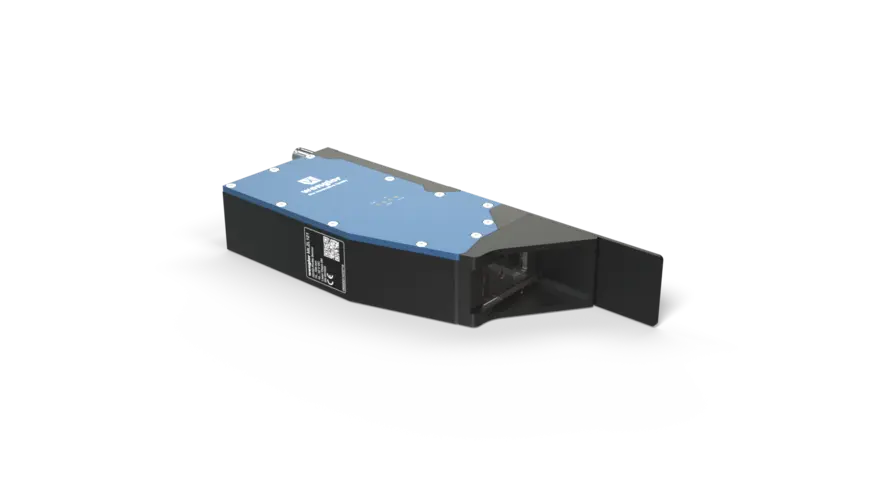

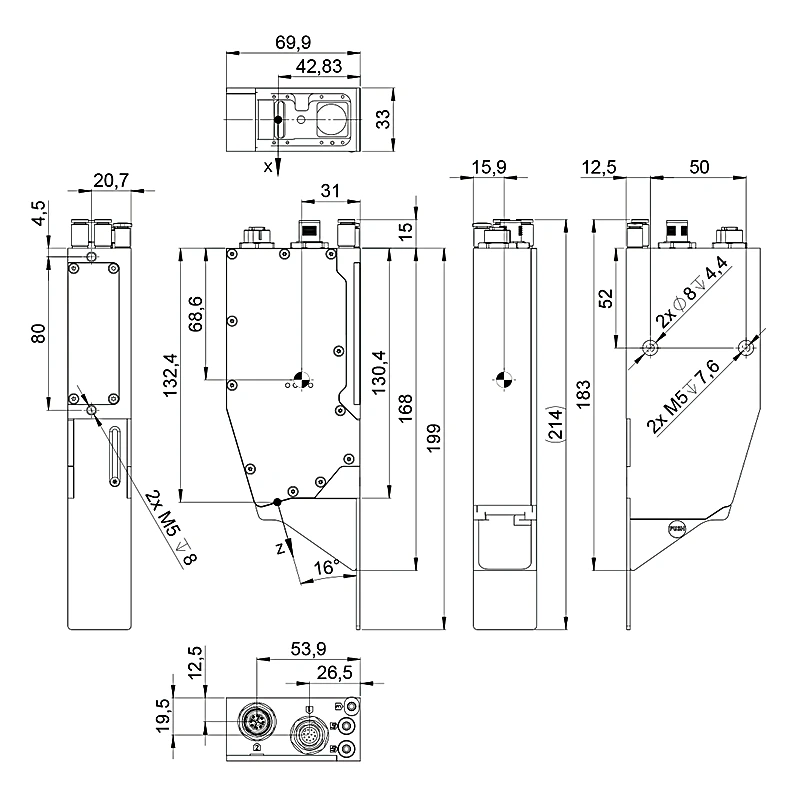

Wenglor MLZL121 2D/3D Profile Sensor

Features

• Easy integration
• High profile quality for high process reliability
• Integrated cooling/rinsing
• Compact and robust format (IP67)
• Optional integrated data evaluation for tracking point determination

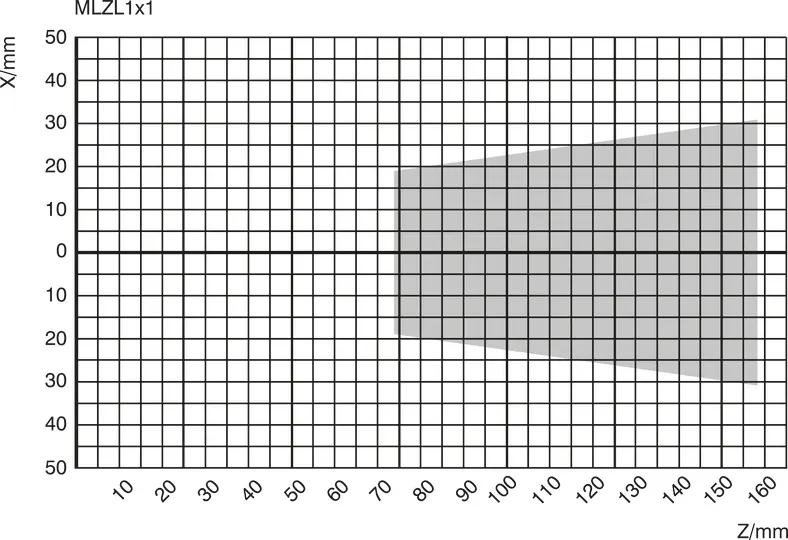

• Working range Z: 74 to 158 mm
• Measuring range Z: 84 mm
• Measuring range X: 38 to 62 mm
• Linearity Deviation: 65 µm
• Resolution Z: 8.3 to 32.5 µm
• Resolution X: 32 to 64 µm
• Light Source: Laser (red)
• Wavelength: 690 nm
• Laser Class (EN 60825-1): 2
• Temperature Range: 32°F to 113°F
• Storage temperature: -4°F to 158°F
• EMC: DIN EN 61000-6-2; 61000-6-4
• Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 6 g (10 to 55 Hz)
• Atmospheric humidity: 5 to 95%, non-condensing
• Supply Voltage: 18 to 30 V DC
• Current Consumption (Ub = 24 V): 300 mA
• Measuring Rate: 200 to 4,000 /s
• Subsampling: 800 to 4,000 /s
• Inputs/Outputs: 4
• Switching Output Voltage Drop: < 1.5 V
• Switching Output/Switching Current: 100 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Interface: Ethernet TCP/IP
• Transmission rate: 100/1000 Mbit/s
• Protection Class: III
• FDA Accession Number: 2210378-000

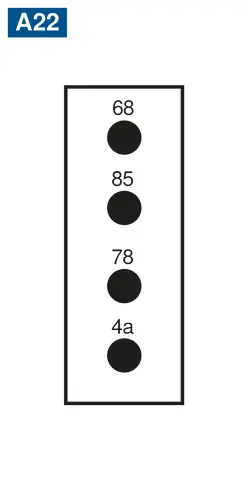

• Setting Method: Web server
• Housing Material: Aluminum, anodised
• Degree of Protection: IP67

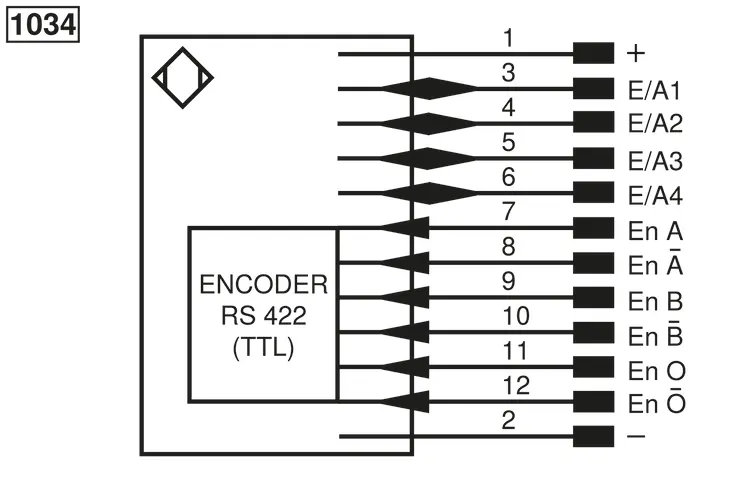

• Connection: M12 × 1; 12-pin

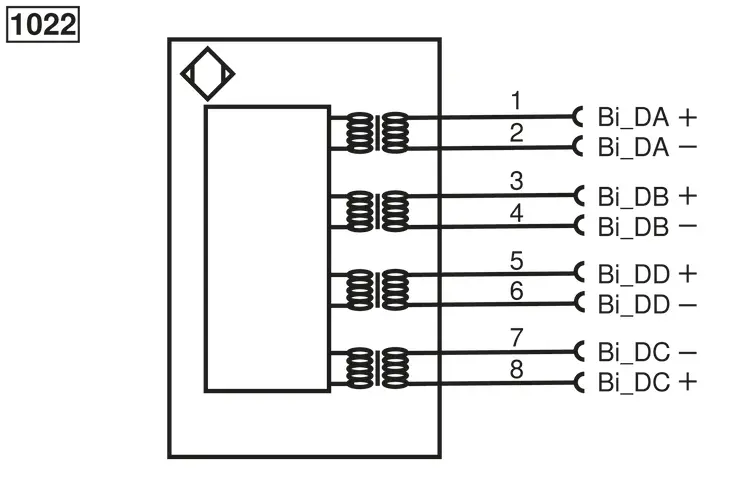

• Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
• Optic Cover: Plastic, PMMA
• Weight: 574 g
• MTTFd (EN ISO 13849-1): 186.11 a
• Scope of delivery: ZLSE010
• Configurable as PNP/NPN/Push-Pull: yes
• Switchable to NC/NO: yes
• Push-Pull: yes
• Output: Push-pull, NPN, PNP
• Circuit: NC, NC/NO, NO
• Complementary Products: Control Unit, EHSS001 Switch, Software, ZLSE012 Protective screen retainer, Connection cables, Machine Vision Controller MVC
