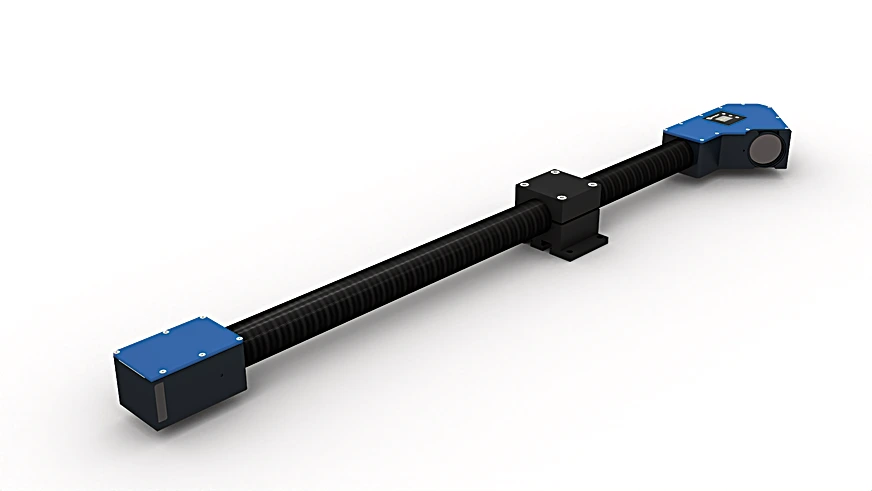

Wenglor MLWL135 2D/3D Profile Sensor

2D/3D Profile Sensor.

$32,274.00
Part Number
  • MLWL135
Highlights...

Features

  • Up to 12 million measuring points per second
  • Optimized profile quality thanks to HDR function
  • Precise measuring range resolution X (> 2000 measuring points)
  • Blue light for applications on metal, organic or semi-transparent materials
  • Working range Z: 600 to 1,400 mm
  • Measuring range Z: 800 mm

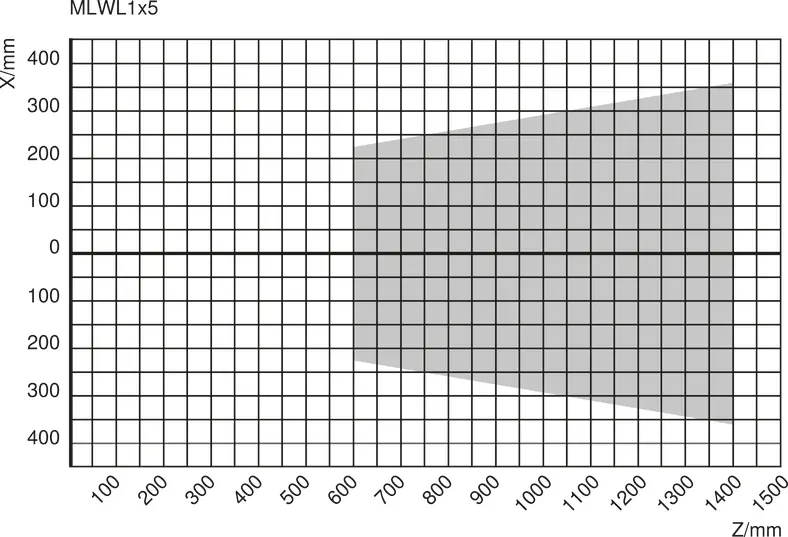

  • Measuring range X: 450 to 720 mm
  • Linearity Deviation: 200 µm
  • Resolution Z: 28 to 67 µm
  • Resolution X: 235 to 361 µm
  • Light Source: Laser (blue)
  • Wavelength: 405 nm
  • Service Life (T = 77°F): 20,000 h
  • Laser Class (EN 60825-1): 2
  • Temperature Range: 32°F to 113°F
  • Storage temperature: -4°F to 158°F
  • Max. Ambient Light: 5,000 Lux
  • EMC: DIN EN 61000-6-2; 61000-6-4
  • Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
  • Vibration resistance per DIN IEC 60068-2-6: 6 g (10 to 55 Hz)
  • Atmospheric humidity: 5 to 95%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): 330 mA
  • Measuring Rate: 175 to 6,000 /s
  • Subsampling: 350 to 6,000 /s
  • Inputs/Outputs: 4
  • Switching Output Voltage Drop: < 1.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: Ethernet TCP/IP
  • Transmission rate: 100/1000 Mbit/s
  • Protection Class: III
  • FDA Accession Number: 1710273-000

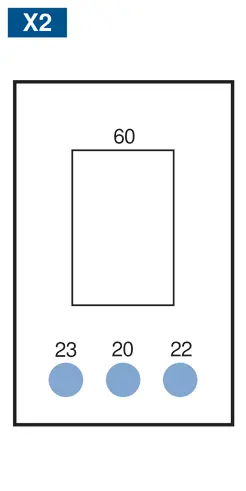

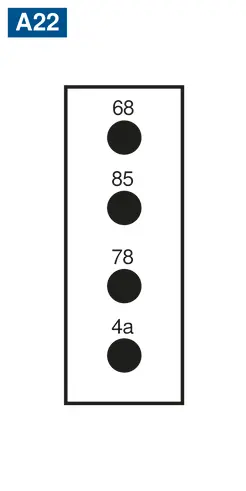

  • Setting Method: Web server
  • Housing Material: Aluminum, anodised
  • Degree of Protection: IP67
  • UL Enclosure Type: 1

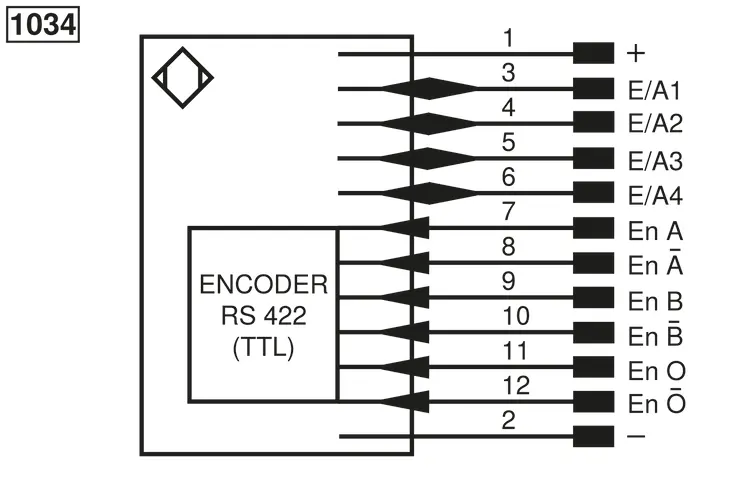

  • Connection: M12 × 1; 12-pin

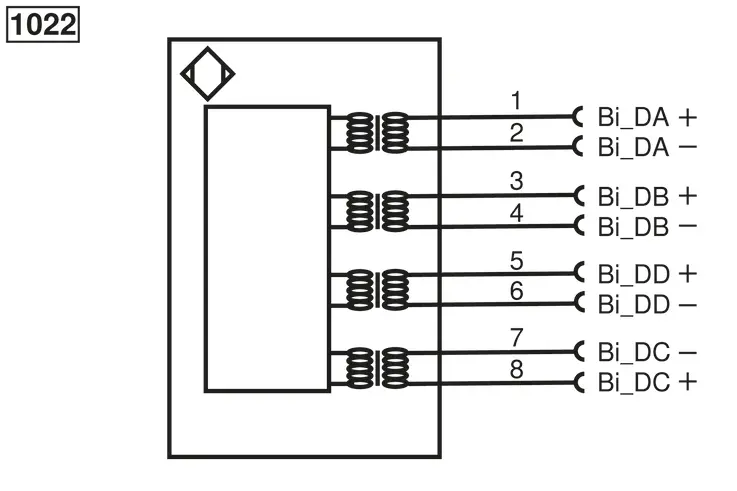

  • Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
  • Optic Cover: Glass

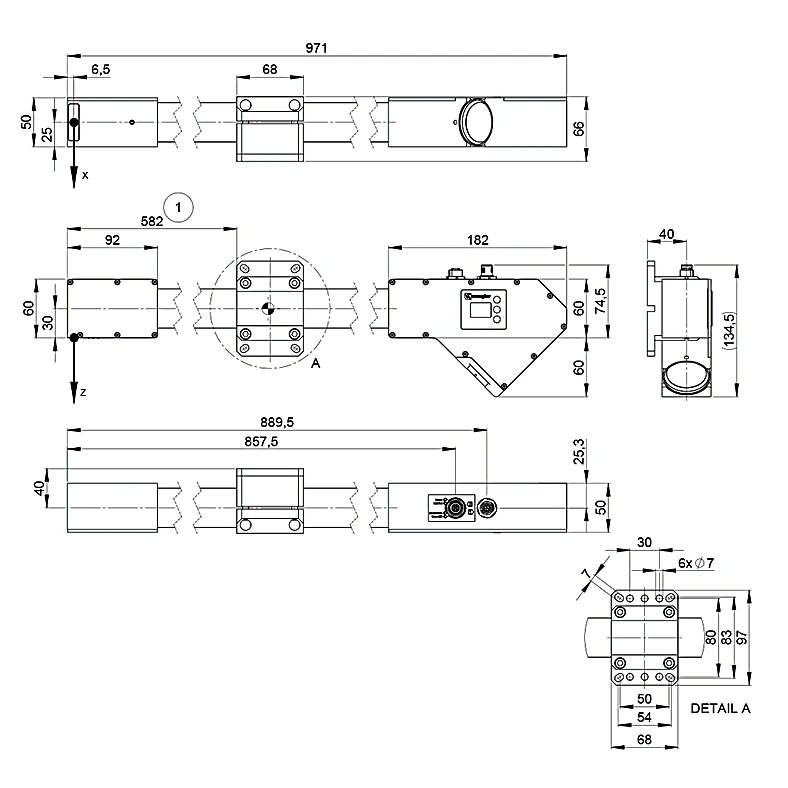

  • Weight: 3,110 g
  • Push-Pull: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Complementary Products: Control Unit, EHSS001 Switch, Cooling Unit ZLWK003, Protective Screen Retainer ZLWS003, Software, Connection cables, Machine Vision Controller MVC, ZLWY001 positioning clamp
2D/3D Profile Sensors project a laser line onto the object to be detected and generate an accurate, linearized height profile with an internal camera which is set up at a triangulation angle. Thanks to its uniform, open interface, the weCat3D series can be incorporated by means of the DLL program library or the GigE Vision standard without an additional control unit. Alternatively, wenglor offers its own software packages for implementing your application.
