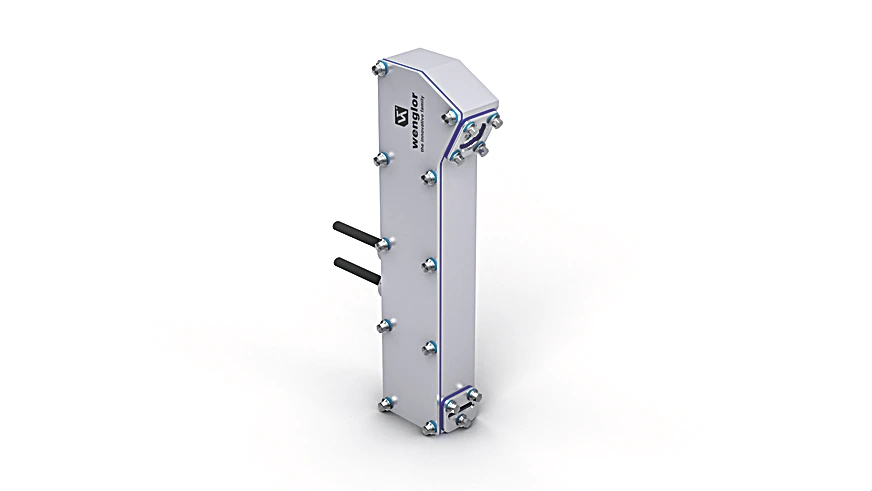

Wenglor MLWL033 2D/3D Profile Sensor

2D/3D Profile Sensor.

$38,530.00
Part Number
  • MLWL033
Highlights...

Features

  • Up to 12 million measuring points per second
  • Blue light for applications on metal, organic or semi-transparent materials
  • IP69K
  • Ecolab

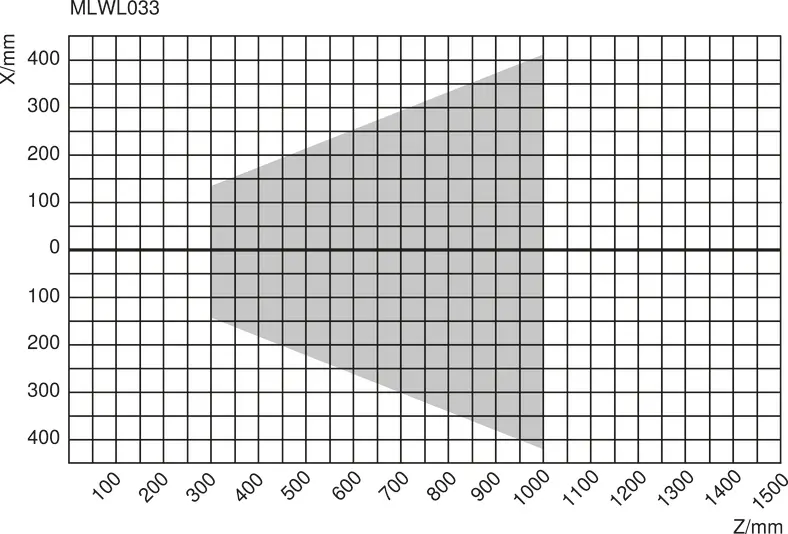

  • Working range Z: 300 to 1,000 mm
  • Measuring range Z: 700 mm
  • Measuring range X: 280 to 830 mm
  • Linearity Deviation: 175 µm
  • Resolution Z: 27 to 162 µm
  • Resolution X: 181 to 446 µm
  • Light Source: Laser (blue)
  • Wavelength: 405 nm
  • Service Life (T = 77°F): 20,000 h
  • Laser Class (EN 60825-1): 2
  • Temperature Range: 32°F to 113°F
  • Storage temperature: -4°F to 158°F
  • Max. Ambient Light: 5,000 Lux
  • EMC: DIN EN 61000-6-2; 61000-6-4
  • Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
  • Vibration resistance per DIN IEC 60068-2-6: 6 g (10 to 55 Hz)
  • Atmospheric humidity: 5 to 95%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): 300 mA
  • Measuring Rate: 180 to 6,000 /s
  • Subsampling: 350 to 6,000 /s

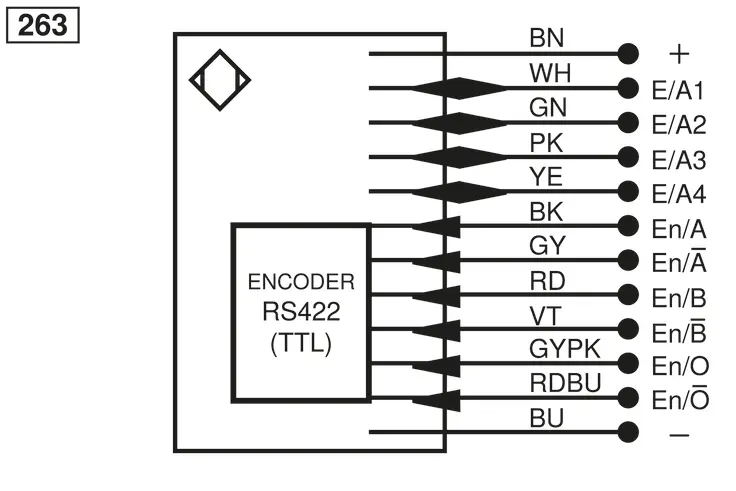

  • Inputs/Outputs: 4
  • Switching Output Voltage Drop: < 1.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes

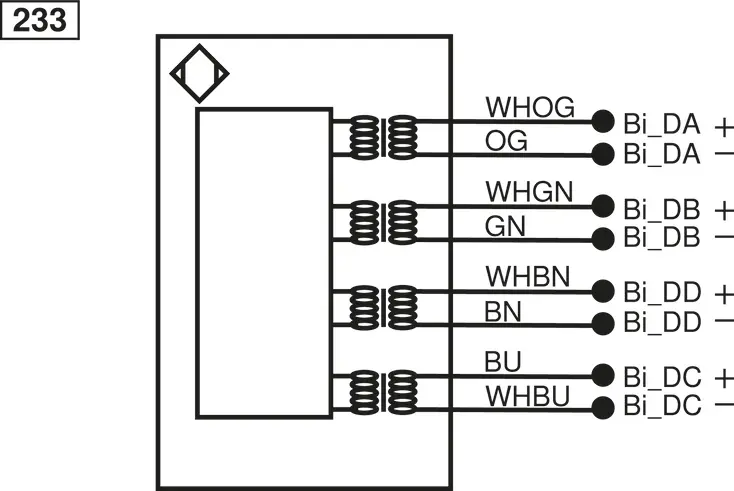

  • Interface: Ethernet TCP/IP
  • Transmission rate: 100/1000 Mbit/s
  • Protection Class: III
  • FDA Accession Number: 2110262-000

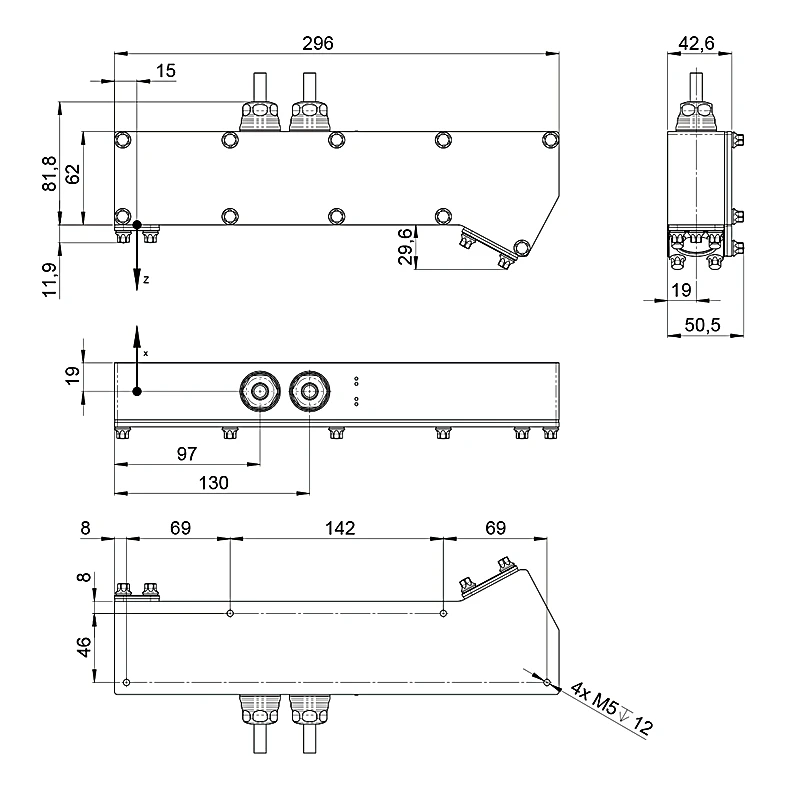

  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Degree of Protection: IP69K
  • Cable length (L): 5 m
  • Cable Jacket Material: Plastic, TPE
  • Bending Radius: 87 mm
  • Optic Cover: Plastic, PMMA
  • Weight: 4,900 g
  • MTTFd (EN ISO 13849-1): 161.86 a
  • Push-Pull: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Complementary Products: Control Unit, Software, EHSS001 Switch, Machine Vision Controller MVC
2D/3D Profile Sensors project a laser line onto the object to be detected and generate an accurate, linearized height profile with an internal camera which is set up at a triangulation angle. Thanks to its uniform, open interface, the weCat3D series can be incorporated by means of the DLL program library or the GigE Vision standard without an additional control unit. Alternatively, wenglor offers its own software packages for implementing your application.
