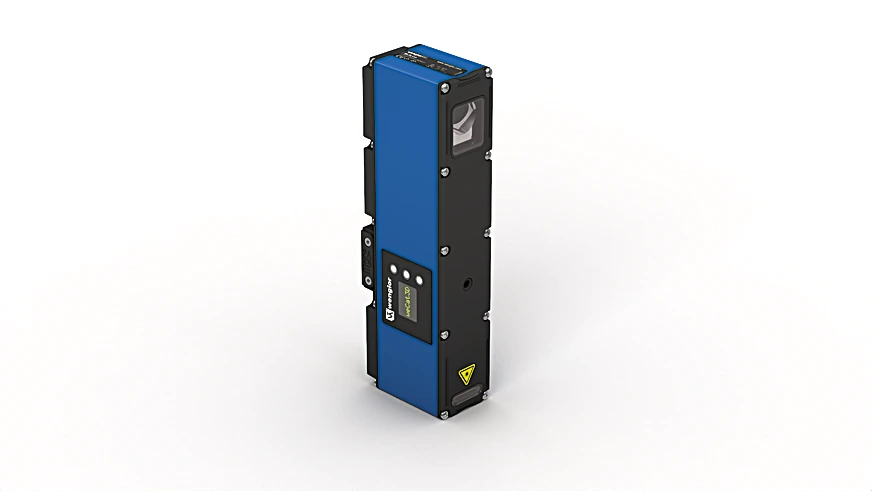

Wenglor MLSL226 2D/3D Profile Sensor

2D/3D Profile Sensor.

$14,006.00
Part Number
  • MLSL226
Highlights...

Features

  • Up to 3.6 million measuring points per second
  • Compact, lightweight design – even suitable for robot applications
  • Precise measuring range resolution X (> 1200 measuring points)

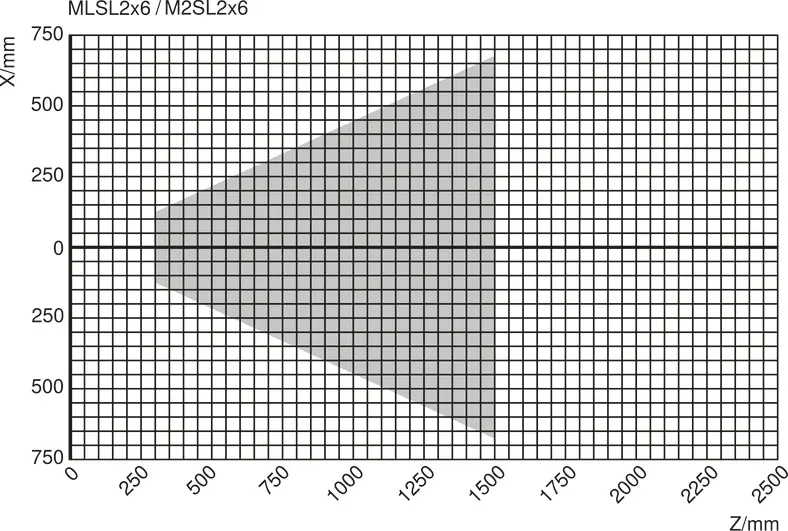

  • Working range Z: 300 to 1,500 mm
  • Measuring range Z: 1,200 mm
  • Measuring range X: 250 to 1,350 mm
  • Linearity Deviation: 600 µm
  • Resolution Z: 60 to 990 µm
  • Resolution X: 270 to 1,170 µm
  • Light Source: Laser (red)
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 20,000 h
  • Laser Class (EN 60825-1): 2
  • Temperature Range: 32°F to 113°F
  • Storage temperature: -4°F to 158°F
  • Max. Ambient Light: 5,000 Lux
  • EMC: DIN EN 61000-6-2; 61000-6-4
  • Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
  • Vibration resistance per DIN IEC 60068-2-6: 6 g (10 to 55 Hz)
  • Atmospheric humidity: 5 to 95%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): 300 mA
  • Measuring Rate: 200 to 4,000 /s
  • Subsampling: 800 to 4,000 /s
  • Inputs/Outputs: 4
  • Switching Output Voltage Drop: < 1.5 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: Ethernet TCP/IP
  • Transmission rate: 100/1000 Mbit/s
  • Protection Class: III
  • FDA Accession Number: 1710959-000

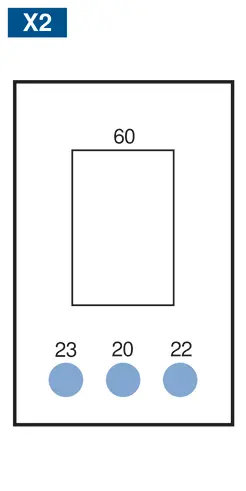

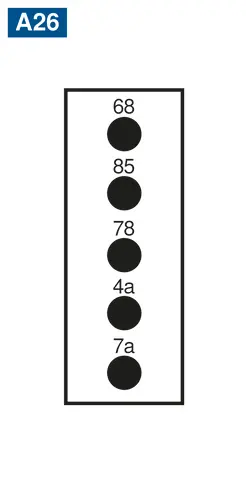

  • Setting Method: Web server
  • Housing Material: Aluminum, powder-coated, Plastic, ABS
  • Degree of Protection: IP67
  • UL Enclosure Type: 1

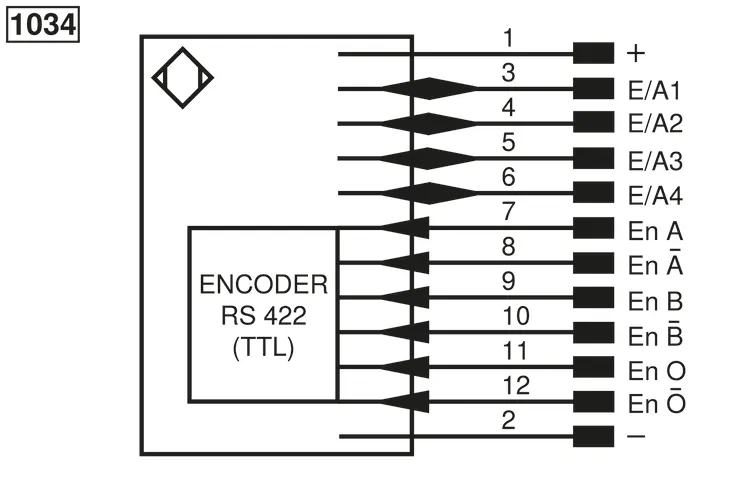

  • Connection: M12 × 1; 12-pin

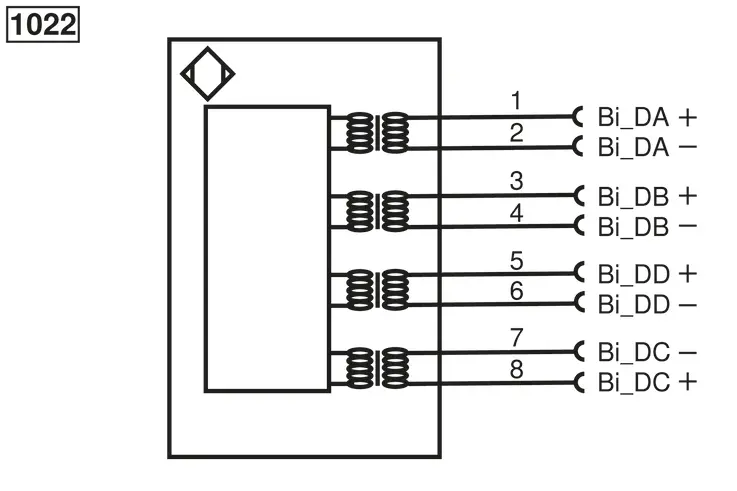

  • Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
  • Optic Cover: Plastic, PMMA

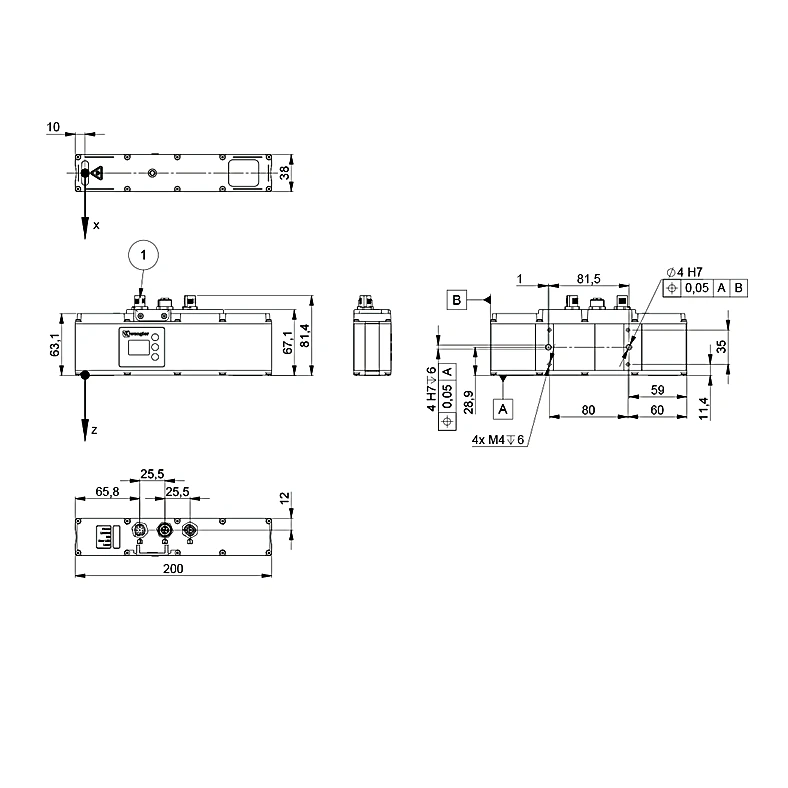

  • Weight: 835 g
  • Push-Pull: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Complementary Products: Control Unit, EHSS001 Switch, Cooling Unit ZLSK001, Protective Screen Retainer ZLSS002, Software, Connection cables, Machine Vision Controller MVC
2D/3D Profile Sensors project a laser line onto the object to be detected and generate an accurate, linearized height profile with an internal camera which is set up at a triangulation angle. Thanks to its uniform, open interface, the weCat3D series can be incorporated by means of the DLL program library or the GigE Vision standard without an additional control unit. Alternatively, wenglor offers its own software packages for implementing your application.
