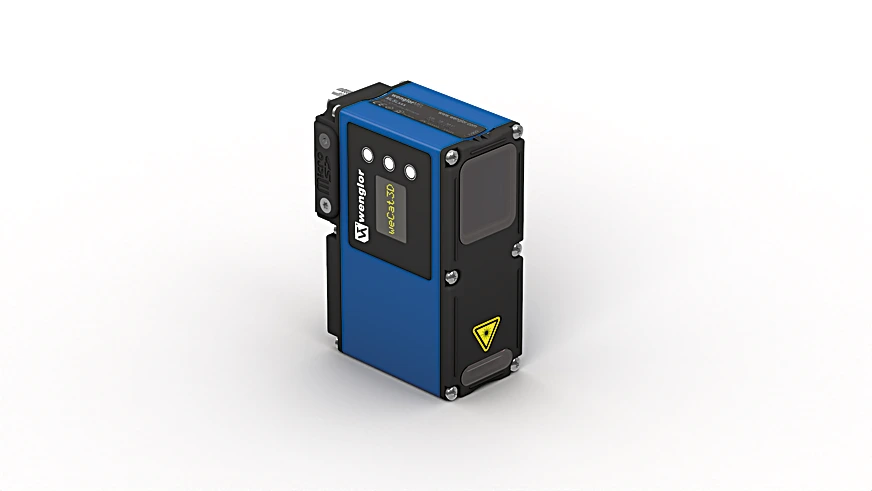

Wenglor MLSL123S50 2D/3D Profile Sensor

Features

• Precise measurement from leg length < 10 mm
• Smart profile sensor with uniVision and pre-installed application for angle measurement
• Stable measurement results regardless of the material characteristics
• Fully integrated with the systems of the most common control manufacturers

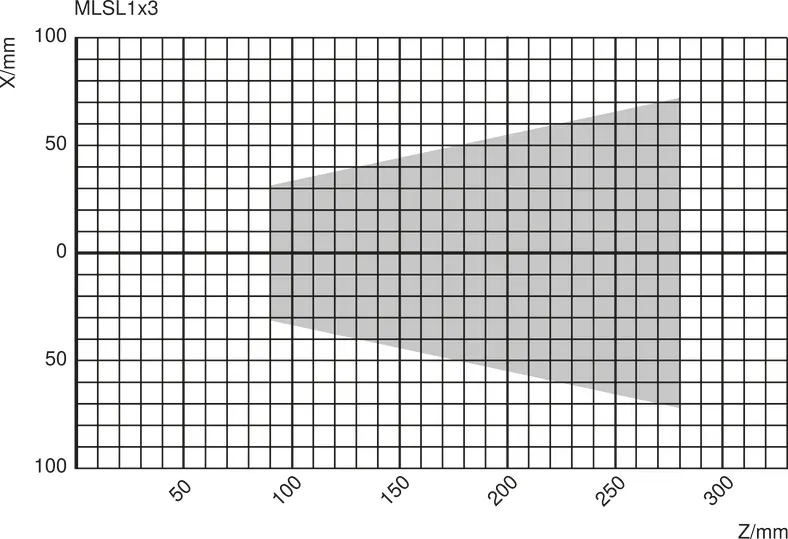

• Working range Z: 90 to 280 mm
• Measuring range Z: 190 mm
• Measuring range X: 62 to 145 mm
• Linearity Deviation: 95 µm
• Resolution Z: 9.4 to 49 µm
• Resolution X: 54 to 123 µm
• Light Source: Laser (red)
• Wavelength: 660 nm
• Laser Class (EN 60825-1): 2
• Temperature Range: 32°F to 113°F
• Storage temperature: -4°F to 158°F
• Max. Ambient Light: 5,000 Lux
• EMC: DIN EN 61000-6-2; 61000-6-4
• Shock resistance per DIN IEC 68-2-27: 30 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 6 g (10 to 55 Hz)
• Atmospheric humidity: < 90%, non-condensing
• Supply Voltage: 18 to 30 V DC
• Current Consumption (Ub = 24 V): 300 mA
• Measuring Rate: 200 to 4,000 /s
• Subsampling: 800 to 4,000 /s
• Inputs/Outputs: 4
• Switching Output Voltage Drop: < 1.5 V
• Switching Output/Switching Current: 100 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Interface: Ethernet TCP/IP
• Transmission rate: 100/1000 Mbit/s
• Protection Class: III
• FDA Accession Number: 1610450-004
• Setting Method: Web server
• Housing Material: Aluminum, powder-coated, Plastic, ABS
• Degree of Protection: IP67

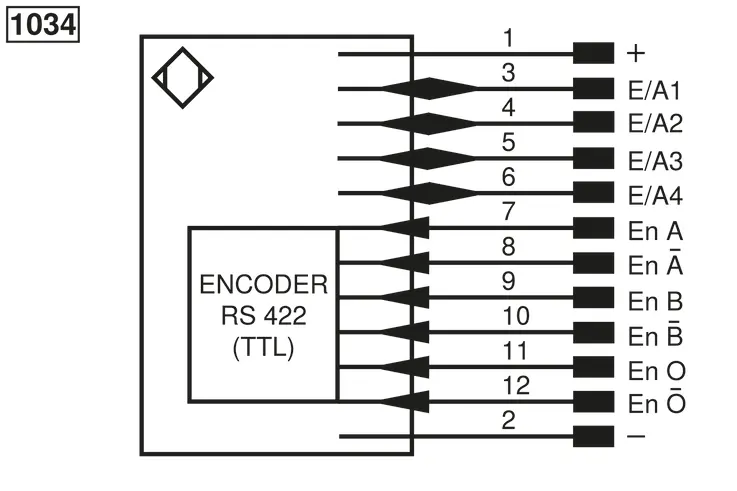

• Connection: M12 × 1; 12-pin

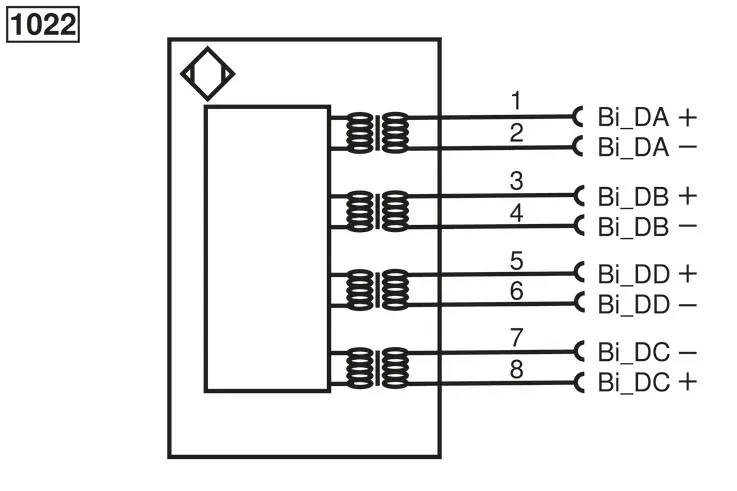

• Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
• Optic Cover: Plastic, PMMA
• Weight: 418 g
• Push-Pull: yes
• Output: Push-pull, NPN, PNP
• Circuit: NC, NC/NO, NO
• Complementary Products: Cooling Unit ZLSK001, Protective Screen Retainer ZLSS001, Protective Housing ZLSS003
