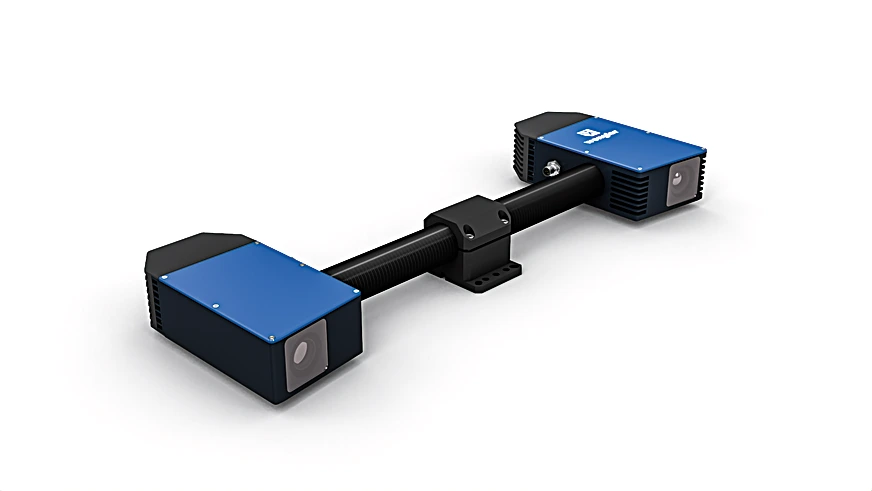

Wenglor MLBS115 3D Sensor

Features

• 5 MP resolution
• Easy integration via SDK or GigE Vision
• High point cloud quality with up to four 3D point clouds per second
• Integrated 3D point cloud calculation
• Working range Z: 1,750 to 2,750 mm
• Measuring range Z: 1,000 mm
• Measuring range X: 1,300 mm
• Measuring range Y: 1,000 mm
• Resolution Z: 61 to 151 µm
• Resolution X/Y: 605 to 950 µm
• Camera Resolution: 5 MP
• Light Source: LED (blue)
• Wavelength: 457 nm
• Service Life (T = 77°F): 20,000 h
• Risk Group (EN 62471): 2
• Temperature Range: 32°F to 104°F
• Storage temperature: 23°F to 158°F
• Max. Ambient Light: 5,000 Lux
• EMC: DIN EN 61000-6-2; 61000-6-4
• Atmospheric humidity: 5 to 95%, non-condensing
• Supply Voltage: 18 to 30 V DC
• Max. Current Consumption (Ub = 24 V): 3.5 A
• Acquisition time: 0.22 to 0.5 s
• Inputs/Outputs: 4
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Interface: Ethernet TCP/IP
• Protection Class: III
• Setting Method: Web server
• Housing Material: Aluminum, anodised, Plastic, ABS
• Degree of Protection: IP67

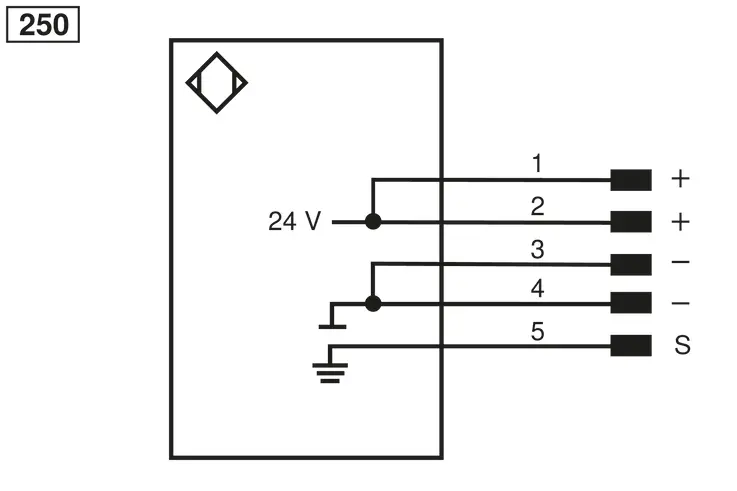

• Type of Connection Power: M12 × 1; 5-pin

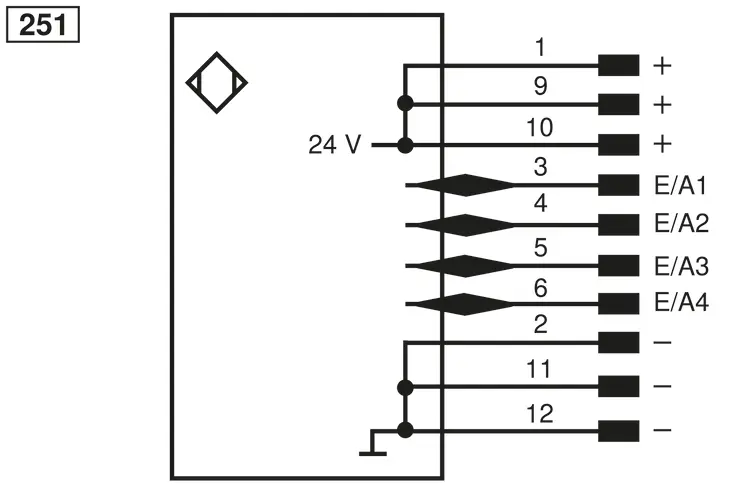

• Type of connection digital I/O ports: M12 × 1; 12-pin

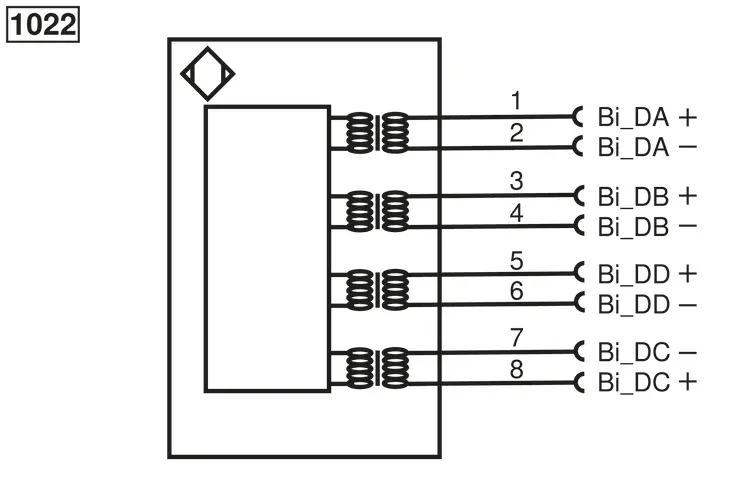

• Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
• Optic Cover: Plastic, PMMA
• Weight: 3,594 g
• MTTFd (EN ISO 13849-1): 71.32 a
• Complementary Products: ZLWY001 positioning clamp
