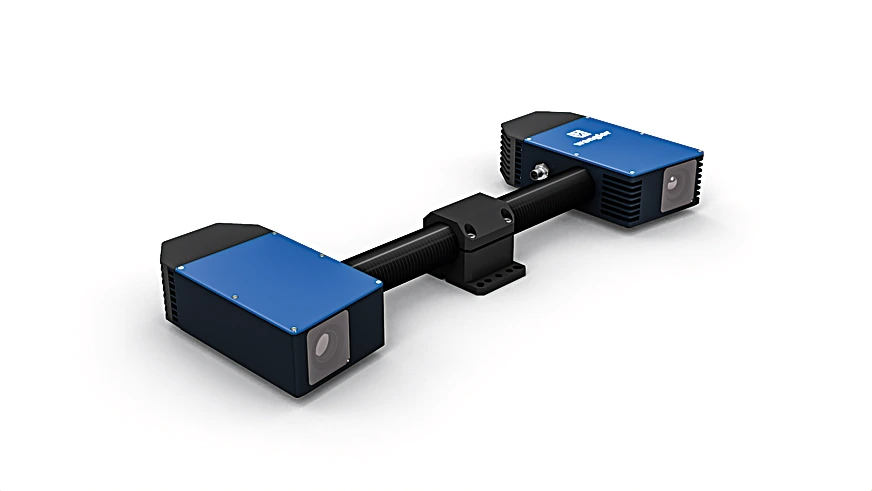

Wenglor MLBS112 3D Sensor

3D Sensor.

$32,383.00
Part Number
  • MLBS112
Highlights...

Features

  • 5 MP resolution
  • Easy integration via SDK or GigE Vision
  • High point cloud quality with up to four 3D point clouds per second
  • Integrated 3D point cloud calculation
  • Working range Z: 1,550 to 2,050 mm
  • Measuring range Z: 500 mm
  • Measuring range X: 750 mm
  • Measuring range Y: 560 mm
  • Resolution Z: 34 to 60 µm
  • Resolution X/Y: 335 to 442 µm
  • Camera Resolution: 5 MP
  • Light Source: LED (blue)
  • Wavelength: 457 nm
  • Service Life (T = 77°F): 20,000 h
  • Risk Group (EN 62471): 2
  • Temperature Range: 32°F to 104°F
  • Storage temperature: 23°F to 158°F
  • Max. Ambient Light: 5,000 Lux
  • EMC: DIN EN 61000-6-2; 61000-6-4
  • Atmospheric humidity: 5 to 95%, non-condensing
  • Supply Voltage: 18 to 30 V DC
  • Max. Current Consumption (Ub = 24 V): 3.5 A
  • Acquisition time: 0.22 to 0.5 s
  • Inputs/Outputs: 4
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Interface: Ethernet TCP/IP
  • Protection Class: III
  • Setting Method: Web server
  • Housing Material: Aluminum, anodised, Plastic, ABS
  • Degree of Protection: IP67

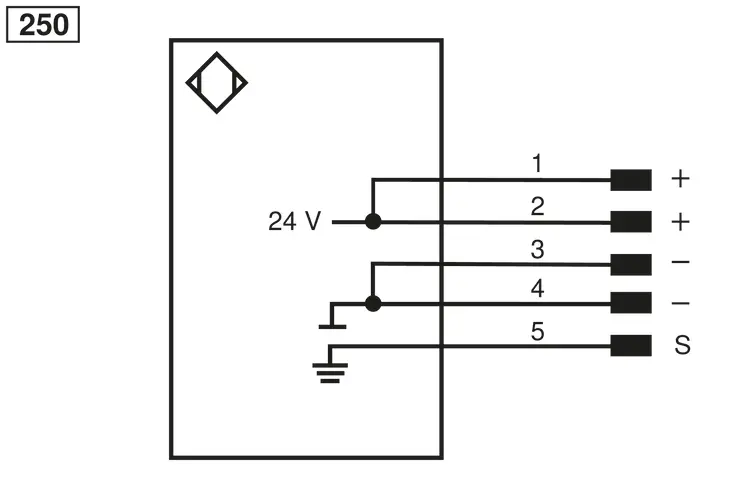

  • Type of Connection Power: M12 × 1; 5-pin

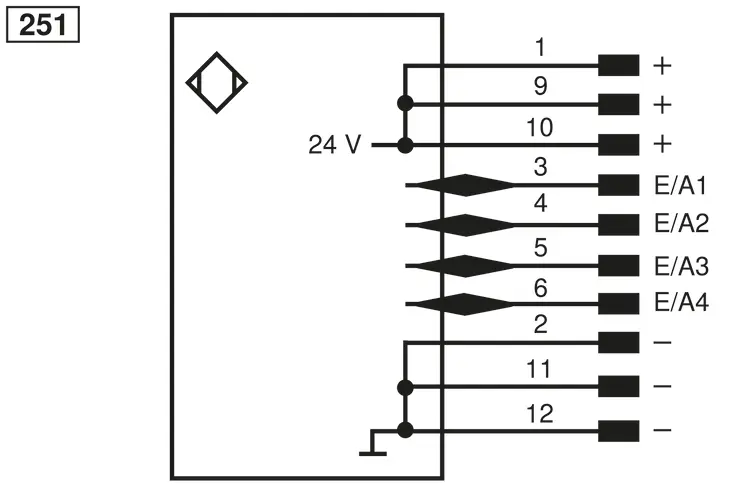

  • Type of connection digital I/O ports: M12 × 1; 12-pin

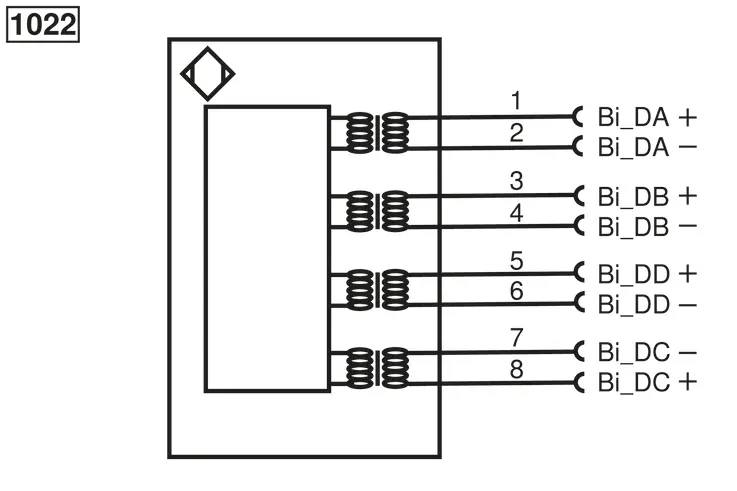

  • Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
  • Optic Cover: Plastic, PMMA
  • Weight: 3,505 g
  • MTTFd (EN ISO 13849-1): 71.32 a
  • Complementary Products: ZLWY001 positioning clamp
The three variants of the ShapeDrive MLBS series are optimally designed for crates and pallets with their symmetrical design and large measuring volumes. The robust design makes the MLBS sensors suitable for use in industrial environments. With its fast Ethernet interface and three measuring ranges, ShapeDrive G4 is distinguished by great diversity and high speed.
