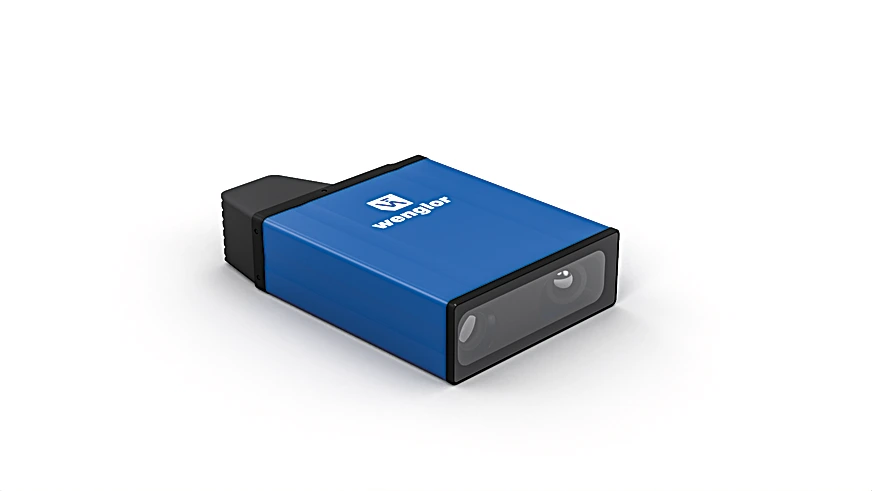

Wenglor MLAS114 3D Sensor

Features

• 5 MP resolution
• Easy integration via SDK or GigE Vision
• High point cloud quality with up to four 3D point clouds per second
• Integrated 3D point cloud calculation
• Working range Z: 400 to 600 mm
• Measuring range Z: 200 mm
• Measuring range X: 240 mm
• Measuring range Y: 200 mm
• Resolution Z: 13 to 30 µm
• Resolution X/Y: 115 to 172 µm
• Camera Resolution: 5 MP
• Light Source: LED (blue)
• Wavelength: 457 nm
• Service Life (T = 77°F): 20,000 h
• Risk Group (EN 62471): 2
• Temperature Range: 32°F to 104°F
• Storage temperature: 23°F to 158°F
• Max. Ambient Light: 5,000 Lux
• EMC: DIN EN 61000-6-2; 61000-6-4
• Atmospheric humidity: 5 to 95%, non-condensing
• Supply Voltage: 18 to 30 V DC
• Max. Current Consumption (Ub = 24 V): 2.5 A
• Acquisition time: 0.22 to 0.5 s
• Inputs/Outputs: 4
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Interface: Ethernet TCP/IP
• Protection Class: III
• Setting Method: Web server
• Housing Material: Aluminum, anodised, Aluminum, powder-coated, Plastic, PA
• Degree of Protection: IP67

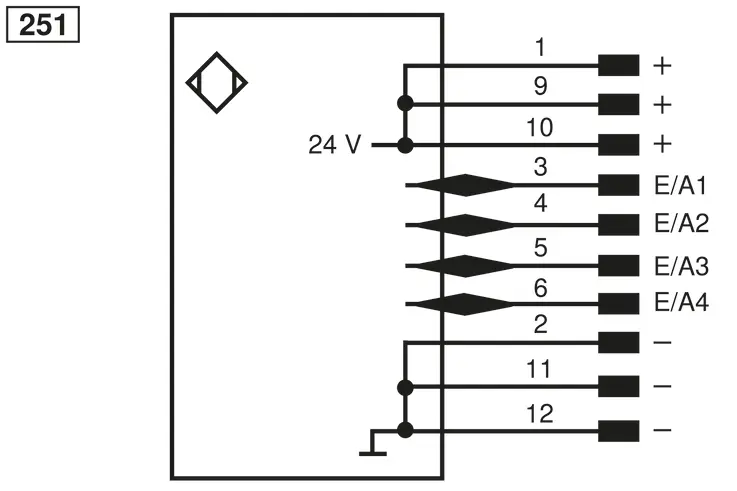

• Connection: M12 × 1; 12-pin

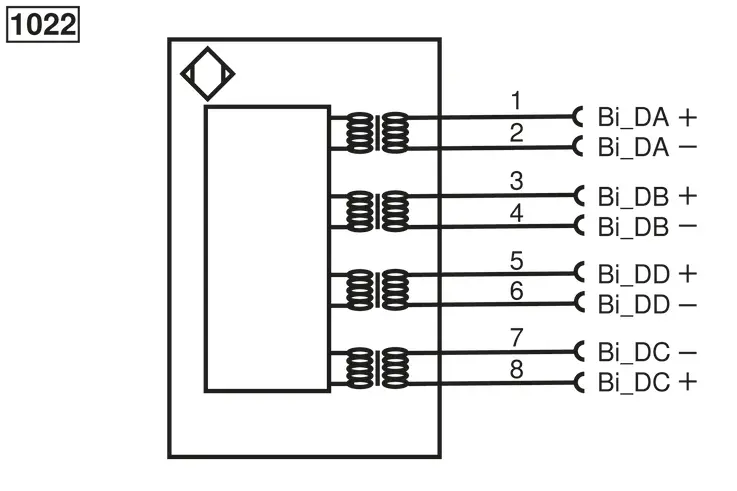

• Type of Connection Ethernet: M12 × 1; 8-pin, X-cod.
• Optic Cover: Plastic, PMMA
• Weight: 1,953 g
• MTTFd (EN ISO 13849-1): 71.35 a
