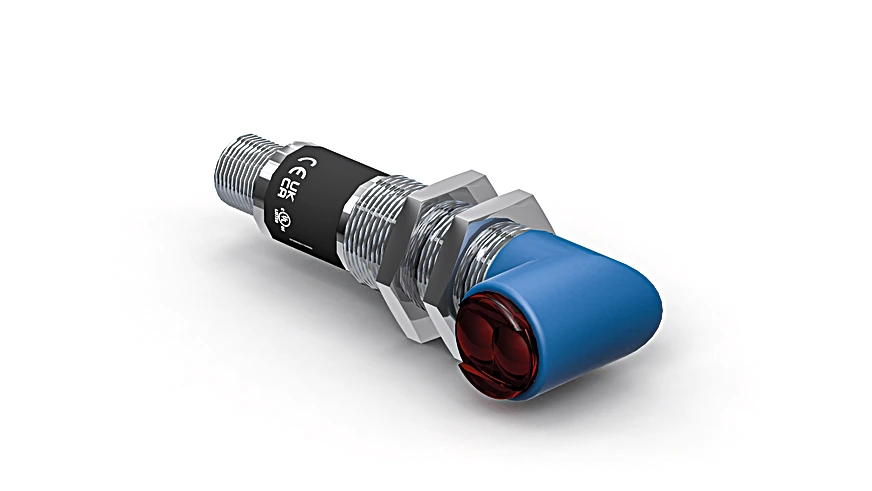

Wenglor LW86PCT3 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$216.00
Part Number
  • LW86PCT3
Highlights...

Features

  • Stainless steel housing
  • Teach-in, external teach-in
  • Range: 6,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 5 °
  • Optics: Two-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 2 kHz
  • Response Time: 250 µs
  • On-/Off-Delay (RS-232): 0 to 5 s
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: NT, MT
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V2A (1.4305/303), Plastic, PBT
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 39 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut, 1 × sensor
  • PNP NC: yes
  • External teach-in input: yes
  • RS-232 with Adapterbox: yes
  • Circuit: NC, NC/NO, NO
  • Other parameters: Off-delay, On-delay
  • RQ100BA: 0.02 to 6 m
  • RE18040BA: 0.02 to 3.3 m
  • RQ84BA: 0.01 to 4.5 m
  • RR84BA: 0.02 to 4.5 m
  • RE9538BA: 0.02 to 1.5 m
  • RE6151BM: 0.01 to 4.5 m
  • RE6151BA: 0.02 to 2.3 m
  • RR50_A: 0.02 to 4 m
  • RE6040BA: 0.02 to 4 m
  • RE8222BA: 0.01 to 2 m
  • RR34_M: 0.01 to 2.4 m
  • RE3220BM: 0.01 to 1.6 m
  • RE6210BM: 0.01 to 1.6 m
  • RR25_M: 0.02 to 1.6 m
  • RR25KP: 0.02 to 1.4 m
  • RR21_M: 0.01 to 1.6 m
  • ZRAE02B01: 0.02 to 3 m
  • ZRME01B01: 0.02 to 1 m
  • ZRME03B01: 0.02 to 2.8 m
  • ZRMR02K01: 0.02 to 1.1 m
  • ZRMS02_01: 0.01 to 1.5 m
  • RF505: 0.06 to 1.6 m
  • RF255: 0.06 to 1.2 m
  • RF508: 0.06 to 1.6 m
  • RF258: 0.06 to 1.2 m
  • ZRDF__K01: 0.06 to 4 m
  • Complementary Products: Reflector, Reflector Foil, Adapterbox A232, PNP-NPN Converter BG2V1P-N-2M, Software
A reflector must be used in combination with these sensors. They can be installed in all kinds of industrial environments thanks to ample functional reserve. Even reflective objects can be reliably recognized through the use of polarized light.
