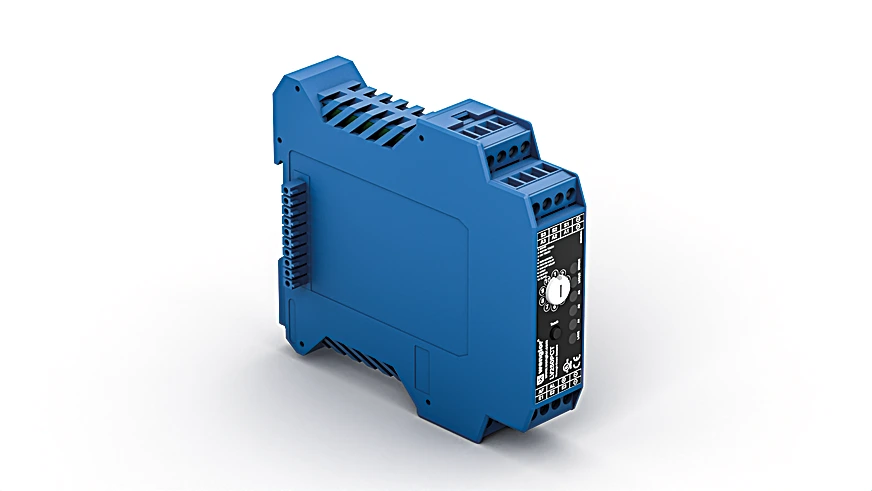

Wenglor LV250PCTS896 Control Unit for Through-Beam Sensors

Features

• Teach-in, external teach-in
• AND-OR logic
• Cascadable
• Master-slave operating mode
• Range: 25,000 mm
• Sensor Type: Control unit
• Supply Voltage: 18 to 30 V
• Current Consumption (Ub = 24 V): 120 mA
• Switching Frequency: 250 Hz
• Response Time: 4 ms
• On-/Off-Delay: 50 ms
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 200 mA
• Error Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Teach Mode: NT, MT
• cascadable: yes
• Logic Output: AND / OR
• External teach-in input: yes
• Protection Class: III
• Setting Method: Teach-In
• Housing Material: Plastic
• Degree of Protection: IP20
• DIN-Rail mounting: 35 mm
• Weight: 201 g
• Scope of delivery: 1 × initial start-up instructions, 1 × controller
• PNP NO/NC switchable: yes
