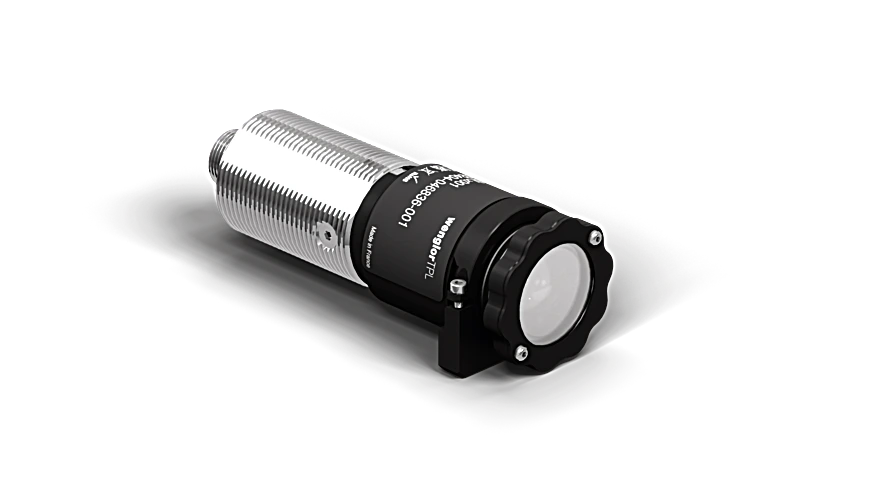

Wenglor LSLR001 Spot Light red light

Features

• Continuous mode or strobe mode synchronized with the camera
• Homogeneous illumination of small areas
• Compact M30 standard design with IP67 degree of protection and zoom lens
• Light Source: Red Light
• Wavelength: 630 nm
• Risk Group (EN 62471): 1
• Aperture angle: 4 to 26 °
• Red light output: 1,197 W/m²
• Measuring point distance: 100 mm
• Temperature Range: 14°F to 104°F
• Storage temperature: -4°F to 140°F
• Atmospheric humidity: < 80%, non-condensing
• Supply Voltage: 21.6 to 26.4 V DC
• Current consumption flash mode OverDrive (operating voltage = 24 V): 0.55 A
• Current Consumption Continuous Mode (Ub = 24 V): 0.2 A
• Flash duration (max.): 10 ms
• Duty cycle (max.): < 0,2
• Dimming: 0 to 10 V ≙ 100 to 30%
• OverDrive: yes
• Rise time: 4 µs
• Fall time: 25 µs
• Input signal: NPN, PNP
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Aluminum, anodised, Glass, Plastic, PMMA
• Optic Cover: Plastic, PMMA
• Degree of Protection: IP67

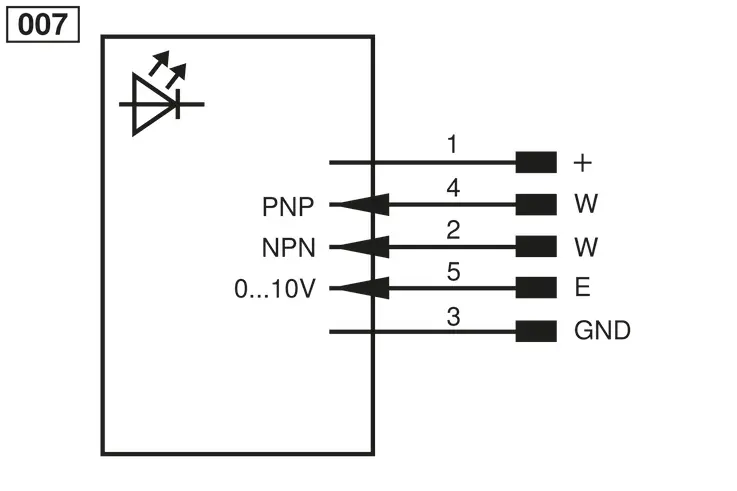

• Connection: M12 × 1; 5-pin
• Weight: 115 g
• Complementary Products: Connection cables, Mounting adapter, Lens accessory, Polarization filter
