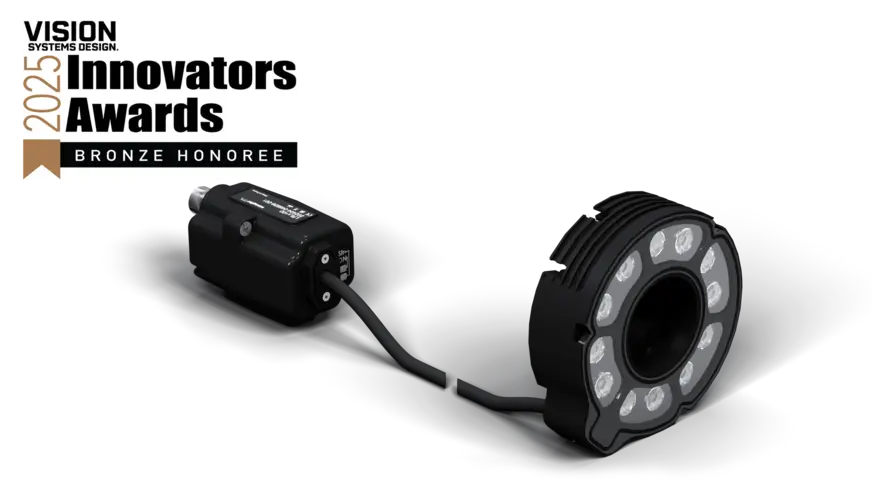

Wenglor LRLR100 Ring Light red light, 37 mm

Ring Light red light, 37 mm.

$1,049.00
Part Number
  • LRLR100
Highlights...

Features

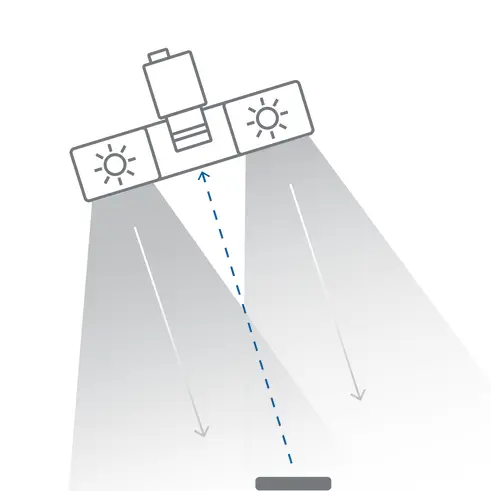

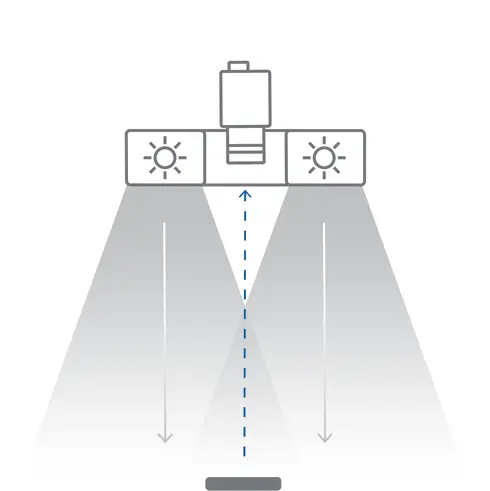

  • Flexibility: expand the beam angle with an Angle Changer
  • Auto strobe (OverDrive) light with robust housing & integrated current control
  • Compact and powerful, designed for easy installation
  • IP67-certified LED ring light
  • Light Source: Red Light
  • Wavelength: 630 nm
  • Beam angle: ± 5 °
  • Red light output: 482.4 W/m²
  • Measuring point distance: 200 mm
  • Compatible with: Angle Changer
  • Temperature Range: 14°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 15.4 W
  • Peak power: 63.36 W
  • Current Consumption Continuous Mode (Ub = 24 V): 0.66 A
  • Current consumption flash mode OverDrive (operating voltage = 24 V): 2.64 A
  • Flash duration (max.): 10 ms
  • Duty cycle (max.): < 0,1
  • Rise time: 15 µs
  • Fall time: 15 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0 to 10 V ≙ 100 to 30%
  • OverDrive: yes

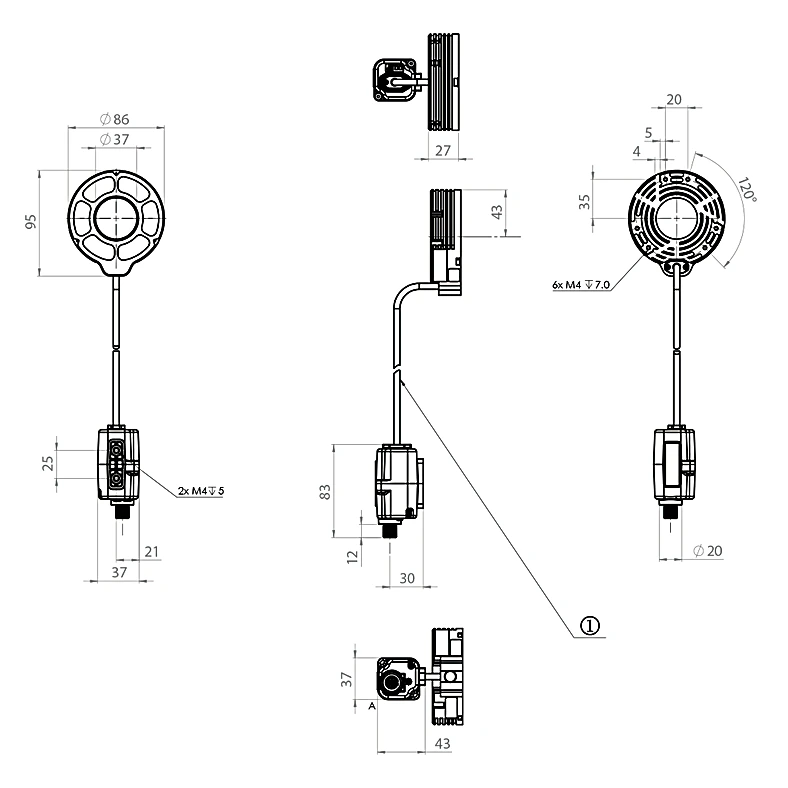

  • Luminous Field: Ø 86 mm
  • Housing Material: Aluminum, anodised, Plastic, PMMA
  • Degree of Protection: IP67

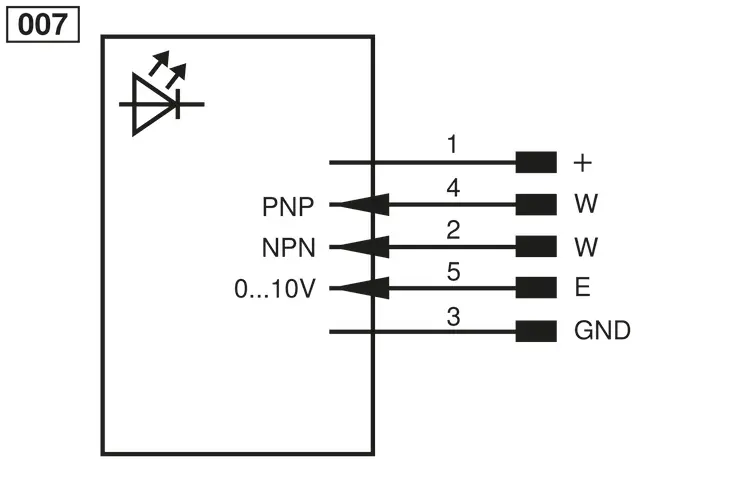

  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 10 m
  • Weight: 280 g
  • Operating modes: Continuous, strobe overdrive
  • Complementary Products: Connection cables, ZRLG angle changer, Mounting adapter
wenglor LRLx100 ring lights are compact and bright ring lights with two operating modes: Continuous mode and strobe OverDrive. The robust IP67 housing is equipped with magnets and fixing points for mounting angle changers, providing unparalleled flexibility in ring light illumination.
