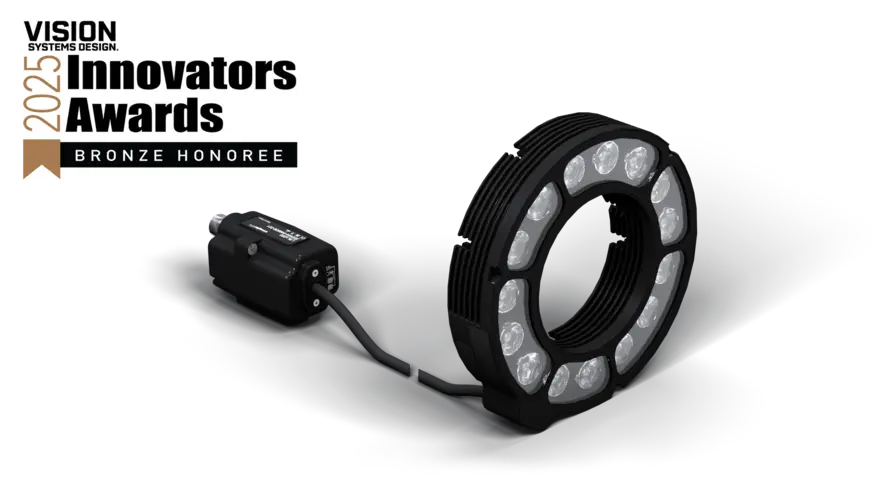

Wenglor LRLI200 Ring Light infrared, 76 mm

Features

• Flexibility: expand the beam angle with an Angle Changer
• Auto strobe (OverDrive) light with robust housing & integrated current control
• IP67-certified LED ring light
• Powerful ring light with a variety of mounting options for easy integration
• Light Source: Infrared Light
• Wavelength: 850 nm
• Risk Group (EN 62471): 1
• Beam angle: ± 7 °
• Infrared light output: 640.56 W/m²
• Measuring point distance: 500 mm
• Compatible with: Angle Changer
• Temperature Range: 14°F to 104°F
• Storage temperature: -4°F to 140°F
• Atmospheric humidity: < 80%, non-condensing
• Supply Voltage: 21.6 to 26.4 V DC
• Power: 21.6 W
• Peak power: 86.4 W
• Current Consumption Continuous Mode (Ub = 24 V): 0.9 A
• Current consumption flash mode OverDrive (operating voltage = 24 V): 3.6 A
• Flash duration (max.): 10 ms
• Duty cycle (max.): < 0,1
• Rise time: 15 µs
• Fall time: 15 µs
• Input signal: NPN, PNP
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Dimming: 0 to 10 V ≙ 100 to 30%
• OverDrive: yes
• Luminous Field: Ø 136 mm
• Housing Material: Aluminum, anodised, Plastic, PMMA
• Degree of Protection: IP67

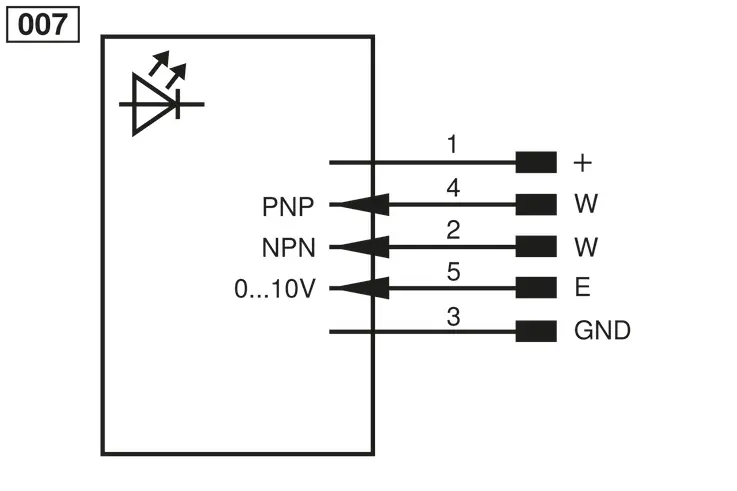

• Connection: M12 × 1; 5-pin
• Max. cable lenght: 10 m
• Weight: 450 g
• Operating modes: Continuous, strobe overdrive
• Complementary Products: Connection cables, ZRLG angle changer, Mounting adapter
