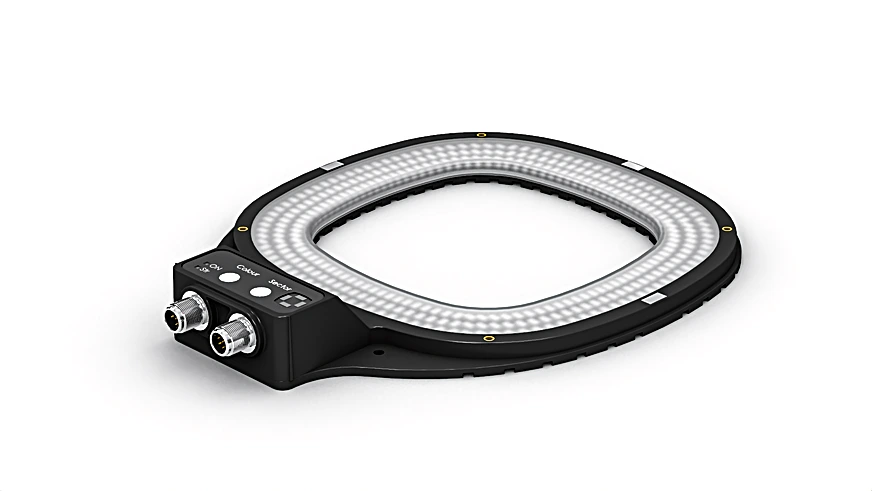

Wenglor LMRX201 Modular Ring Light Red-cyan light, 130 mm

Modular Ring Light Red-cyan light, 130 mm.

$1,517.00
Part Number
  • LMRX201
Highlights...

Features

  • No external control required
  • 4 sectors selectable
  • Bicolor
  • Quick and easy replacement of accessories
  • OverDrive
  • Light Source: Red-cyan light
  • Wavelength: 625 to 505 nm
  • Beam angle: ± 65 °
  • Red light output: 73 W/m²
  • Cyan light output: 44 W/m²
  • Measuring point distance: 100 mm
  • Temperature Range: 14°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 11.04 W
  • Peak power: 82.08 W
  • Current Consumption Continuous Mode (Ub = 24 V): 0.46 A
  • Current consumption flash mode OverDrive (operating voltage = 24 V): 3.42 A
  • Flash duration (max.): 2 ms
  • Duty cycle (max.): < 0,1
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0....10 V ≙ 100 to 30%
  • OverDrive: yes
  • Housing Material: Aluminum, anodised, Plastic, ABS, Plastic, PMMA
  • Degree of Protection: IP65
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA
  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 40 m
  • Camera aperture inner diameter: 130 mm
  • Weight: 550 g
  • Operating modes: Continuous, strobe overdrive
  • Complementary Products: Dome accessory ZMRG002, Low angle accessory ZMRG004, ZC4G003 connection cable, ZDCG004 connection cable, ZDCG005 connection cable

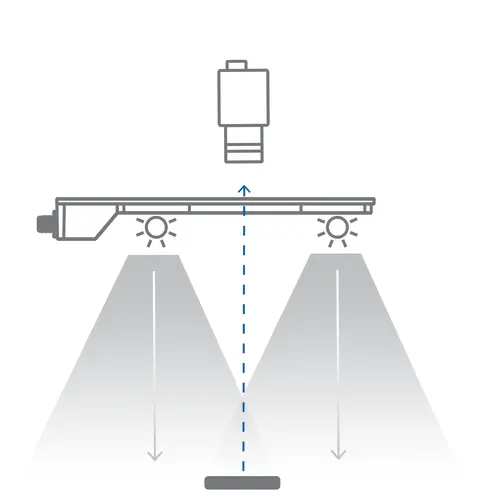

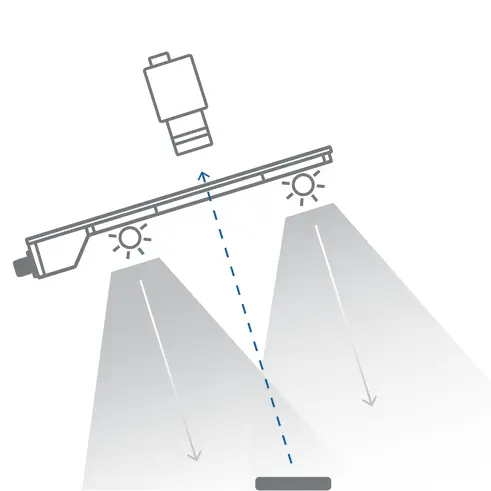

The modular ring lights of the LMRX series are suitable for many illumination forms on a smaller visual field < Ø 130 mm. Based on the diffuse ring light, the way the light is scattered and directed at the target can be changed by adding various attachments. Each ring light has two light colors: Red/Cyan or White/IR. The lights can be operated in continuous mode or synchronized with the machine vision camera in strobe mode or strobe mode with increased intensity (OverDrive).
