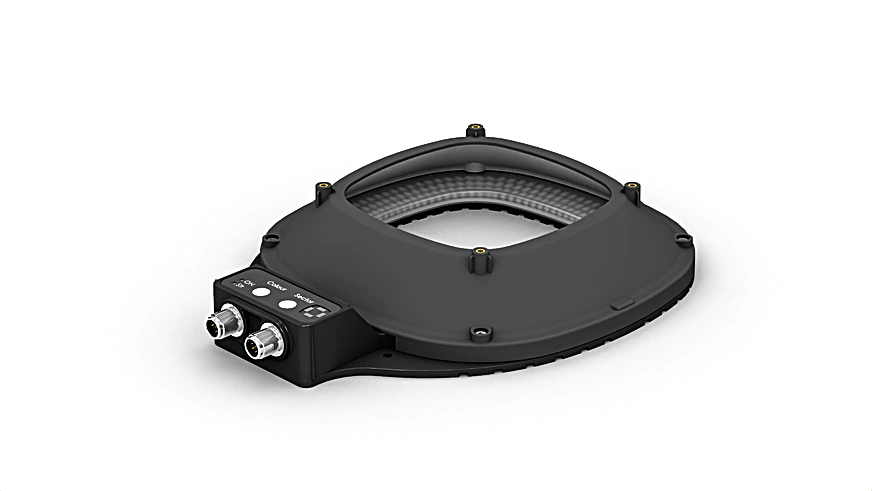

Wenglor LMLX202 Low Angle Light White infrared light, 130 mm

Low Angle Light White infrared light, 130 mm.

$1,647.00
Part Number
  • LMLX202
Highlights...

Features

  • No external control required
  • 4 sectors selectable
  • Bicolor
  • Quick and easy replacement of accessories
  • OverDrive
  • Light Source: White-infrared light
  • Color temperature: 5,000 K
  • Wavelength: 860 nm
  • White light output: 63,600 Lux
  • Infrared light output: 38 W/m²
  • Measuring point distance: 20 mm
  • Temperature Range: 14°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 10.08 W
  • Peak power: 42 W
  • Current Consumption Continuous Mode (Ub = 24 V): 0.42 A
  • Current consumption flash mode OverDrive (operating voltage = 24 V): 1.75 A
  • Flash duration (max.): 2 ms
  • Duty cycle (max.): < 0,1
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0....10 V ≙ 100 to 30%
  • OverDrive: yes
  • Housing Material: Aluminum, Plastic, ABS, Plastic, PMMA
  • Degree of Protection: IP65
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA
  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 40 m
  • Camera aperture inner diameter: 130 mm
  • Weight: 673 g
  • Operating modes: Continuous, strobe overdrive
  • Complementary Products: ZC4G003 connection cable, ZDCG004 connection cable, ZDCG005 connection cable

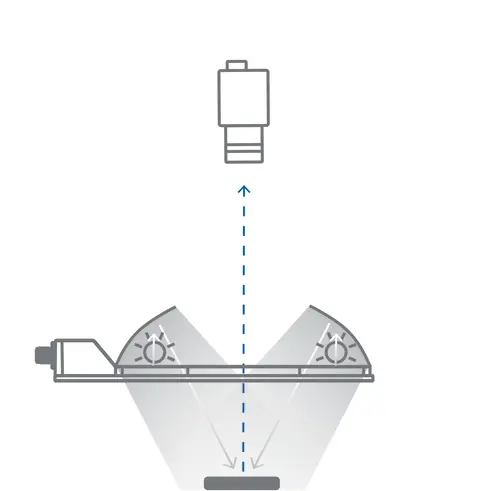

The LMLX lights are a series of low angle lights. In this case, "low angle" means that the light enters with an angle of incidence of 45°. This light is therefore perfect for inspecting edges and scratches on all types of surfaces. The light can be operated in continuous mode or synchronized with the machine vision camera in strobe mode or strobe mode with increased intensity (OverDrive).
