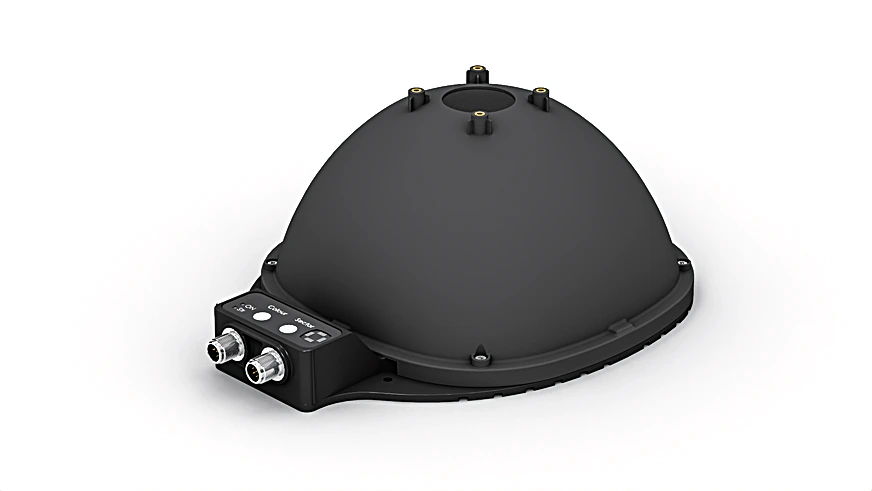

Wenglor LMDX201 Dome Light Red-cyan light, 130 mm

Dome Light Red-cyan light, 130 mm.

$1,647.00
Part Number
  • LMDX201
Highlights...

Features

  • No external control required

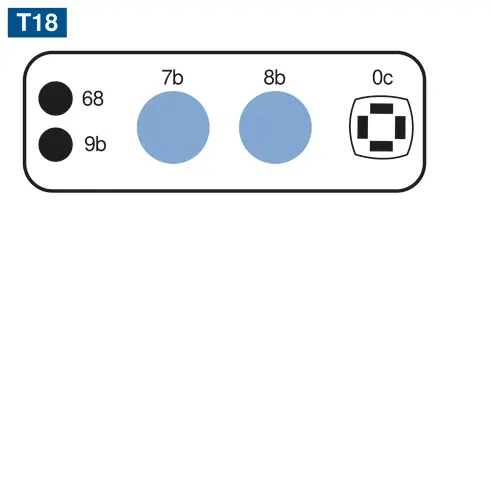

  • 4 sectors selectable
  • Bicolor
  • Quick and easy replacement of accessories
  • OverDrive
  • Light Source: Red-cyan light
  • Wavelength: 625 to 505 nm
  • Red light output: 123 W/m²
  • Cyan light output: 64 W/m²
  • Measuring point distance: 20 mm
  • Temperature Range: 14°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 11.04 W
  • Peak power: 82.08 W
  • Current Consumption Continuous Mode (Ub = 24 V): 0.46 A
  • Current consumption flash mode OverDrive (operating voltage = 24 V): 3.42 A
  • Flash duration (max.): 2 ms
  • Duty cycle (max.): < 0,1
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0....10 V ≙ 100 to 30%
  • OverDrive: yes
  • Housing Material: Aluminum, anodised, Plastic, ABS, Plastic, PMMA
  • Degree of Protection: IP65
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA

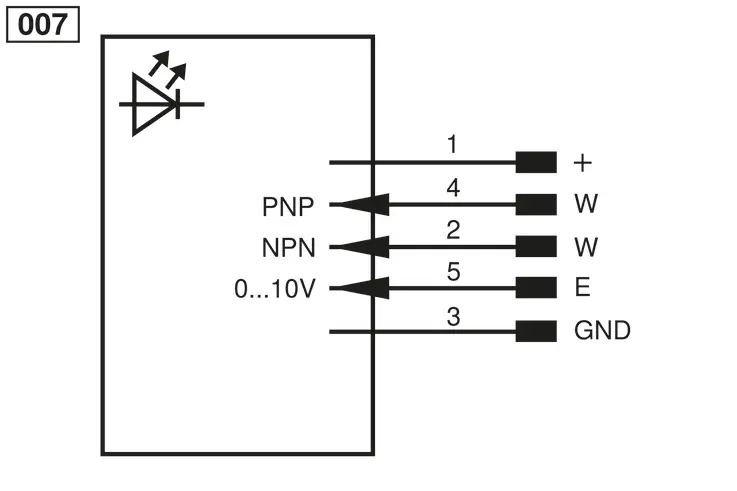

  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 40 m

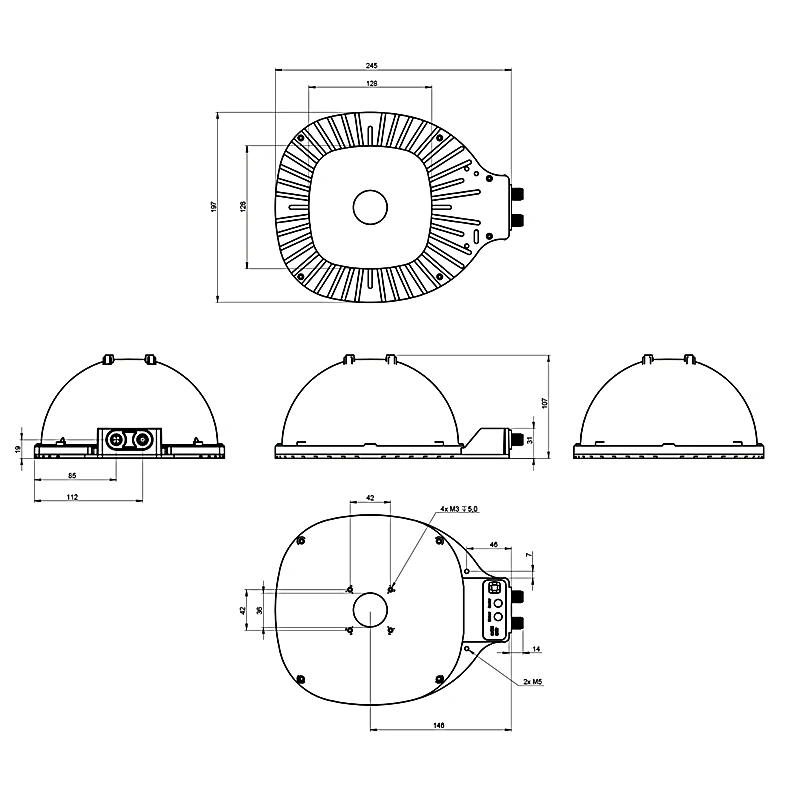

  • Camera aperture inner diameter: 130 mm
  • Weight: 673 g
  • Operating modes: Continuous, strobe overdrive
  • Complementary Products: ZC4G003 connection cable, ZDCG004 connection cable, ZDCG005 connection cable

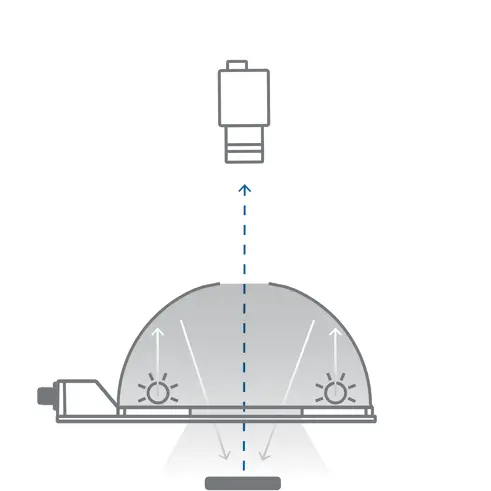

wenglor LMDX series dome lights are particularly suited for homogeneous illumination of glossy parts and demanding surfaces, such as bent metal. The dome is designed to shield the environment and efficiently capture all the light emitted by the ring-shaped light source. This makes it the ideal product for applications with exposure times as low as 100 μs. The product can be operated in continuous mode or synchronized with the machine vision camera in strobe mode with increased intensity (OverDrive).
