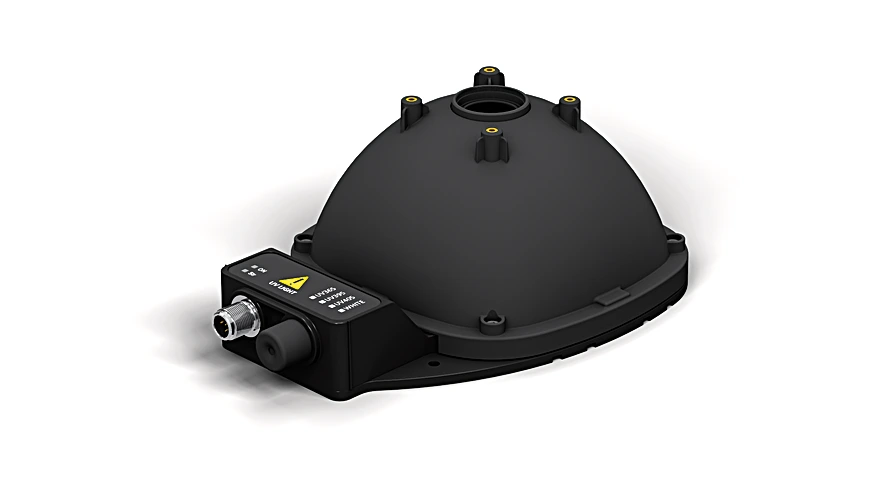

Wenglor LMDX103 Multi-UV Dome Light 365 nm, 395 nm, 405 nm, white light, 80 mm

Multi-UV Dome Light 365 nm, 395 nm, 405 nm, white light, 80 mm.

$3,915.00
Part Number
  • LMDX103
Highlights...

Features

  • All-in-one UV solution
  • Homogeneous dome effect
  • Integrated controller for easy setup
  • Powerful flash mode
  • Light Source: UV white light
  • Wavelength spectrum: 365 nm, 395 nm, 405 nm, white light
  • Risk Group (EN 62471): 2
  • Temperature Range: 14°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 1.8 W
  • Peak power: 18 W
  • Current Consumption Continuous Mode (Ub = 24 V): 0.3 A
  • Current consumption flash mode OverDrive (operating voltage = 24 V): 0.75 A
  • Flash duration (max.): 10 ms
  • Duty cycle (max.): < 0,1
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0....10 V ≙ 100 to 40%
  • Housing Material: Aluminum, anodised, Plastic, ABS, Plastic, PMMA, Glass
  • Degree of Protection: IP65
  • UL Enclosure Type: 1

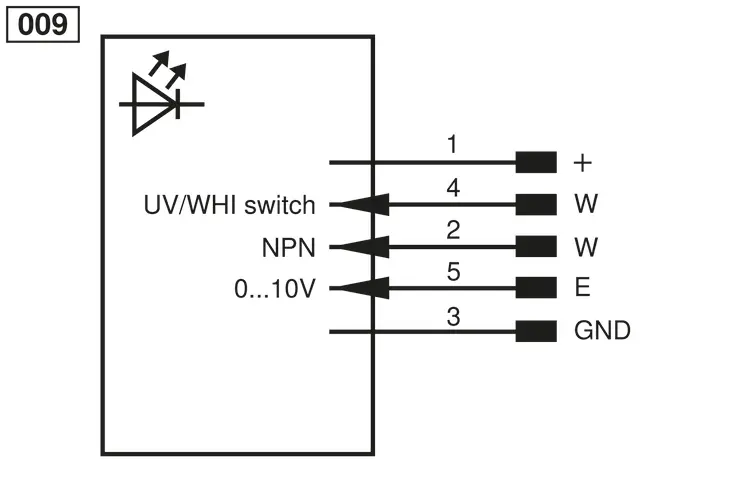

  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 5 m
  • Camera aperture inner diameter: 80 mm
  • Weight: 450 g
  • Operating modes: Continuous, Strobe
  • Complementary Products: Connection cables, ZDNG001 PNP-NPN converter

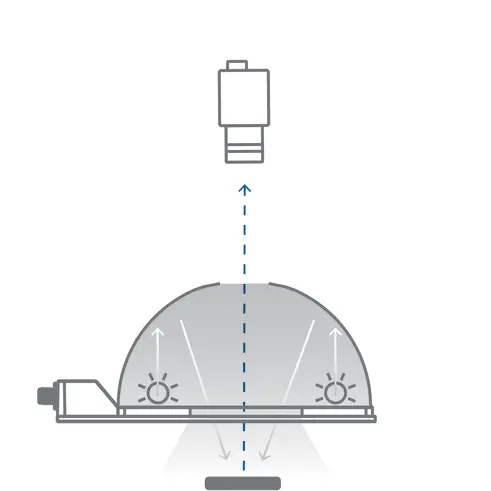

wenglor dome lights from the LMDXxx3 series are ideal for homogeneous illumination of glossy parts, demanding surfaces and fluorescent materials. The multi-UV dome light allows users to test multiple wavelengths (UV365, UV395, UV405 and white light) and select the most effective option. Operator safety is maximized by blocking direct UV radiation through the dome and an integrated filter. The dome light can be operated in continuous mode (white light only) or synchronized in strobe mode (UV and white light).
