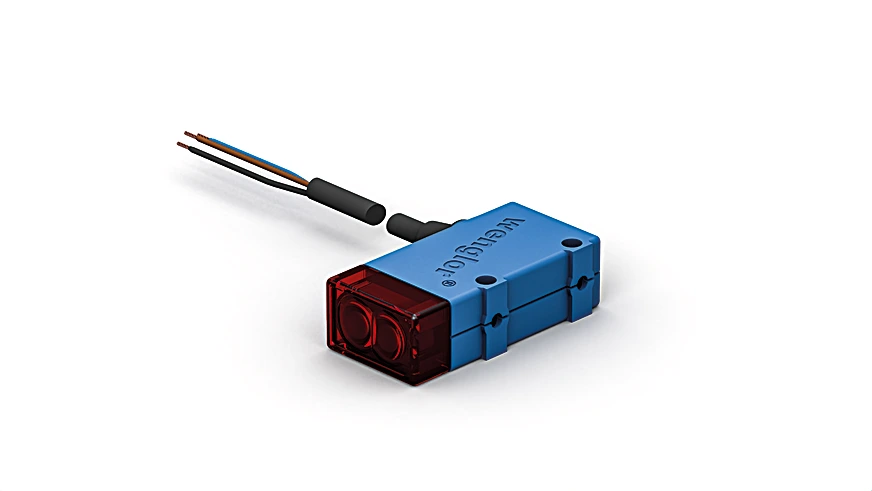

Wenglor LM89PA Retro-Reflex Sensor Universal

Features

• Low-cost
• Switching distance adjuster
• Range: 6,500 mm
• Reference Reflector/Reflector Foil: RQ100BA
• Switching Hysteresis: < 15 %
• Light Source: Red Light
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 5 °
• Optics: Two-Lens Optic
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 1 kHz
• Response Time: 500 µs
• Temperature Drift: < 10 %
• Temperature Range: 14°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III

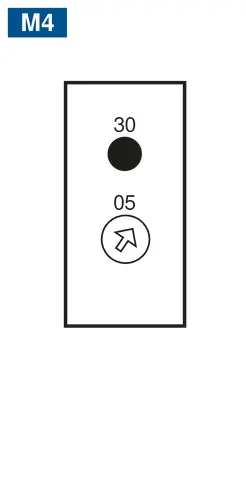

• Setting Method: Potentiometer
• Housing Material: Plastic, PBT
• Full Encapsulation: yes
• Degree of Protection: IP67

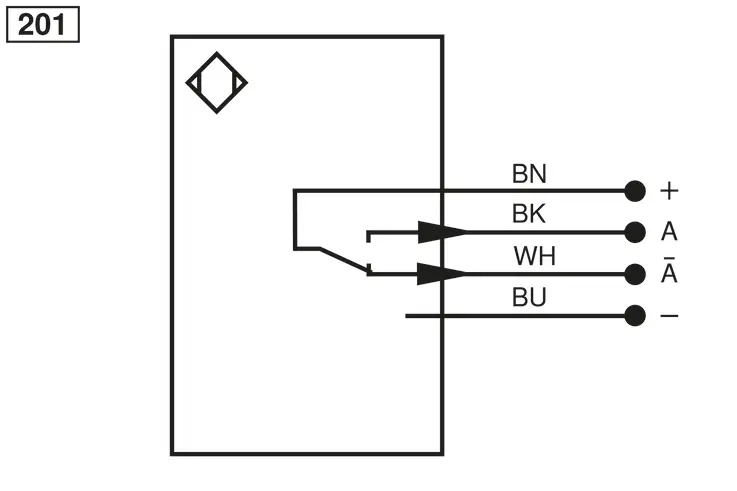

• Connection: Cable; 4-wire
• Cable length (L): 2 m
• Cable Jacket Material: PVC
• Weight: 162 g
• MTTFd (EN ISO 13849-1): 3,220.14 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• PNP NC, PNP NO: yes
• Circuit: NC, NC+NO, NO
• RQ100BA: 0.04 to 6.5 m
• RE18040BA: 0.12 to 3 m
• RQ84BA: 0.06 to 5 m
• RR84BA: 0.06 to 4.5 m
• RE9538BA: 0.12 to 1.5 m
• RE6151BM: 0.14 to 4 m
• RE6151BA: 0.07 to 2 m
• RR50_A: 0.03 to 3.3 m
• RE6040BA: 0.05 to 4 m
• RE8222BA: 0.08 to 2 m
• RR34_M: 0.16 to 2.2 m
• RE3220BM: 0.2 to 1.5 m
• RE6210BM: 0.2 to 1.7 m
• RR25_M: 0.15 to 1.8 m
• RR25KP: 0.14 to 1 m
• RR21_M: 0.14 to 1.9 m
• ZRAE02B01: 0.15 to 2.5 m
• ZRME01B01: 0.2 to 0.9 m
• ZRME03B01: 0.2 to 2.3 m
• ZRMR02K01: 0.16 to 1 m
• ZRMS02_01: 0.2 to 1 m
• RF505: 0.19 to 1.5 m
• RF255: 0.16 to 1.4 m
• RF508: 0.21 to 1.4 m
• RF258: 0.31 to 1.4 m
• ZRDF03K01: 0.16 to 4 m
• ZRDF10K01: 0.16 to 4.5 m
• Complementary Products: Reflector, Reflector Foil, Protective Housing ZSV-0x-01, Set Protective Housing ZSM-NN-02
