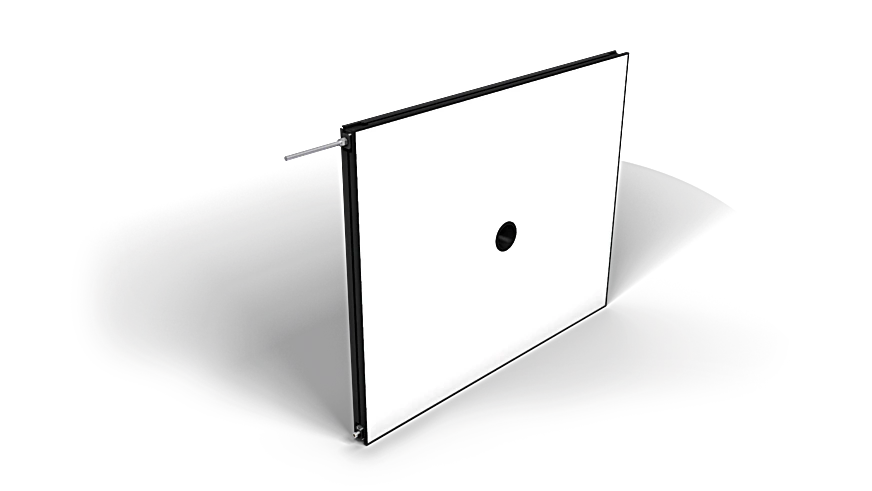

Wenglor LFDW908 Flat Dome Light white light, 1000 × 800 mm

Flat Dome Light white light, 1000 × 800 mm.

$11,674.00
Part Number
  • LFDW908
Highlights...

Features

  • High homogeneity
  • No external control required
  • High performance: high intensity even in continuous mode
  • Easy and flexible installation
  • Light Source: White Light
  • Color temperature: 6,500 K
  • White light output: 44,300 Lux
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 432 W
  • Current Consumption Continuous Mode (Ub = 24 V): 18 A
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN, PNP
  • Temperature Range: 14°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0....10 V ≙ 100 to 30%
  • OverDrive: no

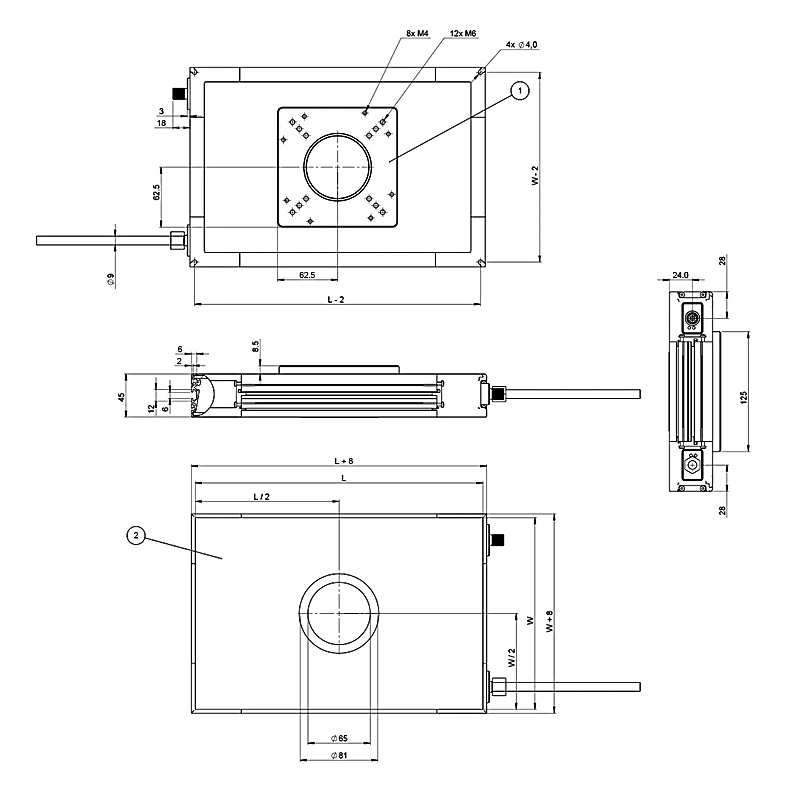

  • Luminous Field Length (L): 1,000 mm
  • Luminous Field Width (W): 800 mm
  • Luminous Field: 1,000 × 800 mm
  • Housing Material: Aluminum, anodised, Plastic, ABS-GF
  • Degree of Protection: IP50
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA

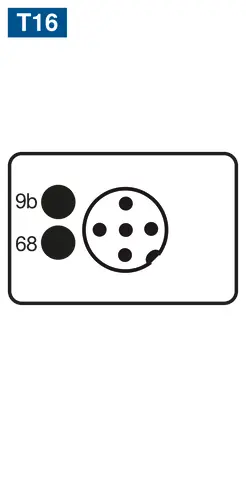

  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 10 m
  • Camera aperture inner diameter: 65 mm
  • Weight: 17,000 g
  • Operating modes: Continuous, Strobe
  • Complementary Products: ZC4G003 connection cable, ZDCG004 connection cable, ZDCG005 connection cable

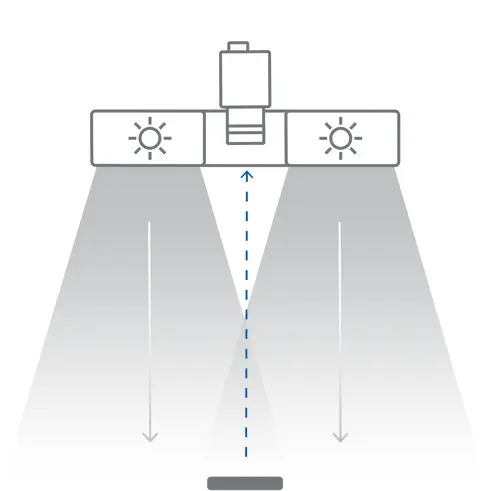

The LFD series flat dome lights are high-diffuse lights with a camera connection. Due to their intense luminous flux and high homogeneity, they are perfectly suited for large-area applications such as robot-assisted pick-and-place. They can be used in continuous mode or synchronized with the machine vision camera in strobe mode via PNP or NPN inputs. The light is characterized by its narrow edges (4 mm) and easy mounting thanks to the T-slot fastener and the anchor point around the housing. Cameras can be connected easily on the rear of the light.
