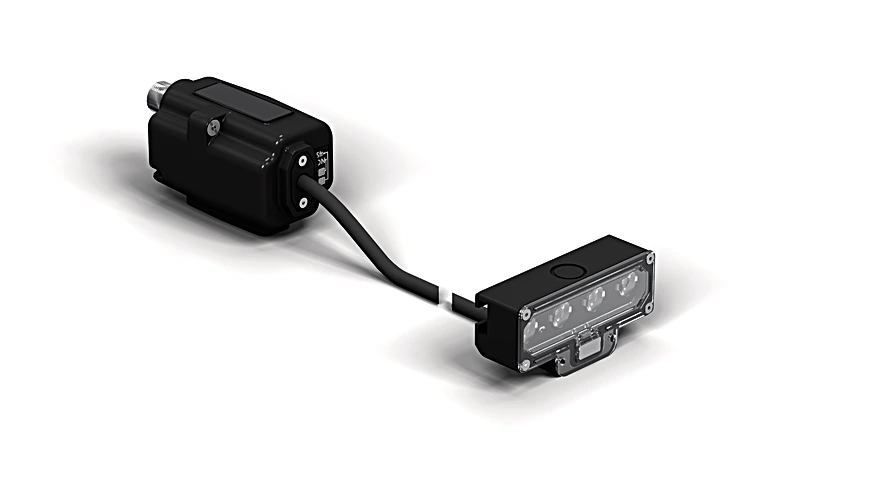

Wenglor LBTW101 Mini Bar Light white light, 59 mm

$633.00

Part Number

LBTW101

Highlights...

LBTW101
By Wenglor
FREE Shipping on orders of $2,000 or more
Limited to in-stock inventory

Features

Flexibility: expand the beam angle with an Angle Changer
Auto strobe (OverDrive) light with robust housing & integrated current control
IP67-certified LED bar light
Compact and powerful, designed for easy installation
Light Source: White Light
Color temperature: 4,500 K
Beam angle: ± 5 °
White light output: 220,000 Lux
Measuring point distance: 100 mm
Compatible with: Angle Changer
Temperature Range: 14°F to 104°F
Storage temperature: -4°F to 140°F
Atmospheric humidity: < 80%, non-condensing
Supply Voltage: 21.6 to 26.4 V DC
Power: 7.2 W
Peak power: 36 W
Current Consumption Continuous Mode (Ub = 24 V): 0.3 A
Current consumption flash mode OverDrive (operating voltage = 24 V): 1.2 A
Flash duration (max.): 10 ms
Duty cycle (max.): < 0,1
Rise time: 15 µs
Fall time: 15 µs
Input signal: NPN, PNP
Short Circuit Protection: yes
Reverse Polarity Protection: yes
Overload Protection: yes
Protection Class: III
Dimming: 0 to 10 V ≙ 100 to 30%
OverDrive: yes

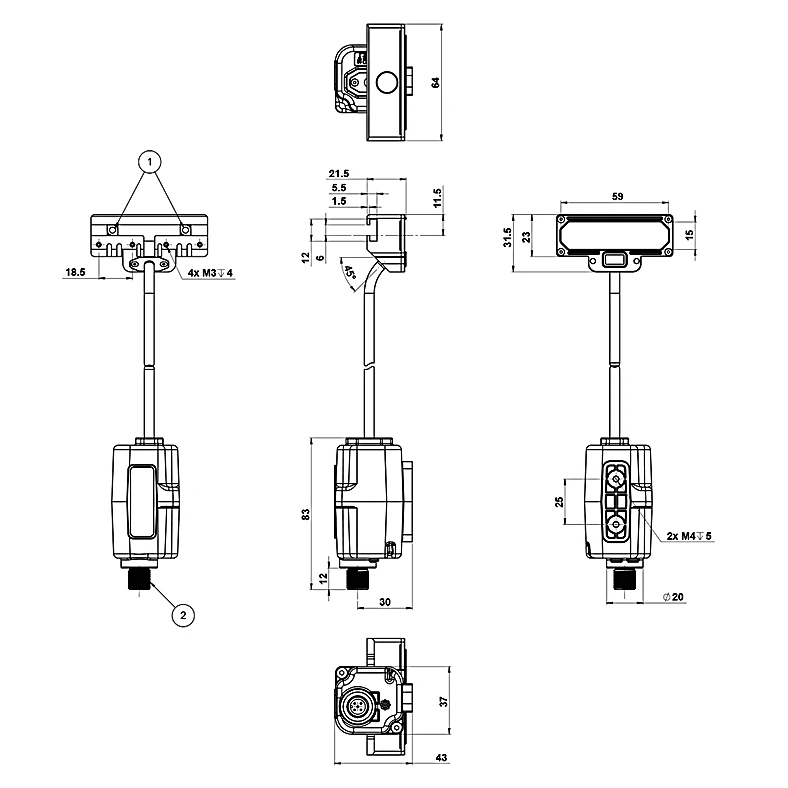

Luminous Field Length (L): 59 mm
Housing Material: Aluminum, anodised, Plastic, ABS
Degree of Protection: IP67
Connection: M12 × 1; 5-pin
Max. cable lenght: 20 m
Weight: 150 g
Operating modes: Continuous, Strobe
Complementary Products: ZBAG angle changer, Connection cables

wenglor mini bar lights from the LBT series can be configured for almost any application. Their compact, robust and flexible design makes these direct lights ideal for image processing applications with limited space. The mini bar lights can be operated in continuous mode or synchronized with the machine vision camera in strobe mode with increased luminosity (OverDrive). When combined with the ZBTG angle changers, the beam angle can be increased and the lighting can be designed flexibly and controlled via the visual field.
