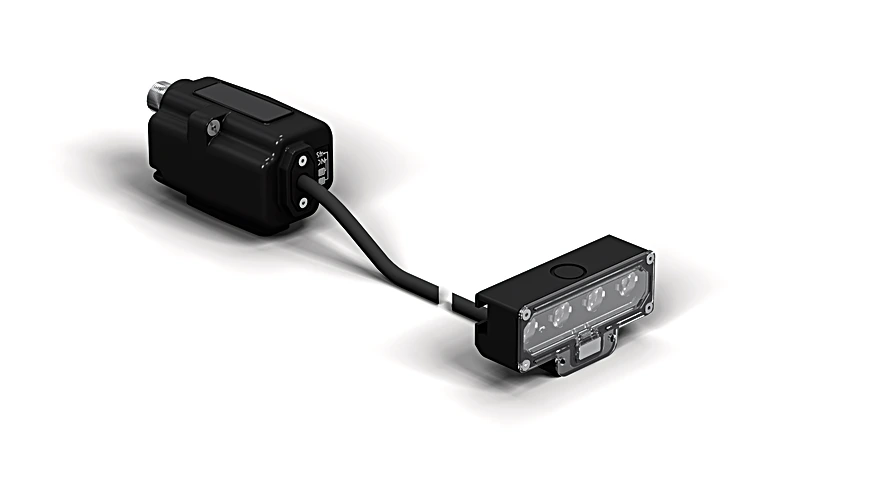

Wenglor LBTR101 Mini Bar Light red light, 59 mm

Mini Bar Light red light, 59 mm.

$633.00
Part Number
  • LBTR101
Highlights...

Features

  • Flexibility: expand the beam angle with an Angle Changer
  • Auto strobe (OverDrive) light with robust housing & integrated current control
  • IP67-certified LED bar light
  • Compact and powerful, designed for easy installation
  • Light Source: Red Light
  • Wavelength: 630 nm
  • Beam angle: ± 41°Fompatible with: Angle Changer
  • Temperature Range: 14°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 7.2 W
  • Peak power: 36 W
  • Current Consumption Continuous Mode (Ub = 24 V): 0.3 A
  • Current consumption flash mode OverDrive (operating voltage = 24 V): 1.2 A
  • Flash duration (max.): 10 ms
  • Duty cycle (max.): < 0,1
  • Rise time: 15 µs
  • Fall time: 15 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0 to 10 V ≙ 100 to 30%
  • OverDrive: yes

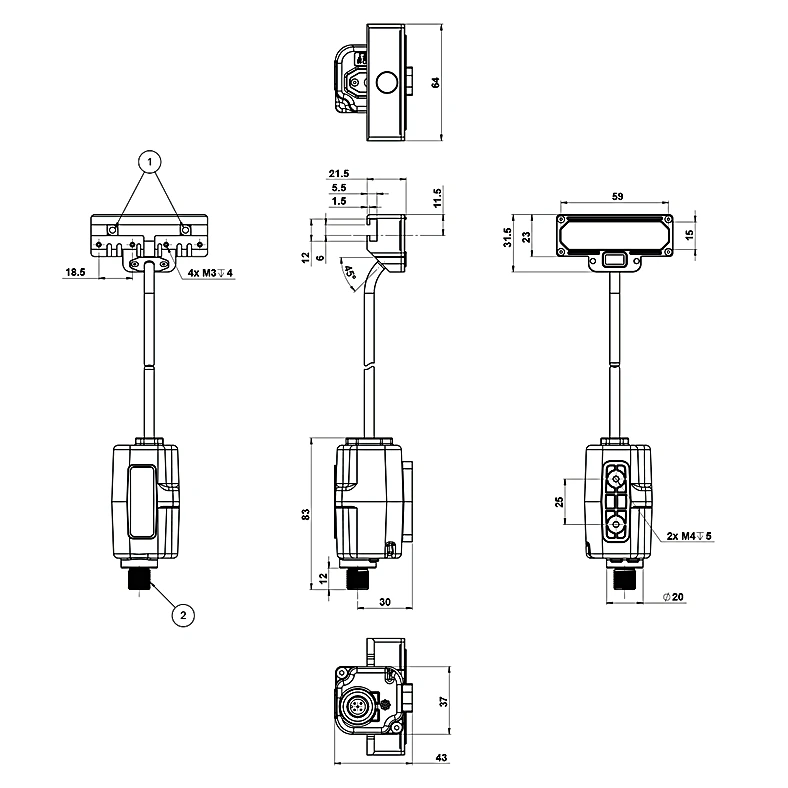

  • Luminous Field Length (L): 59 mm
  • Housing Material: Aluminum, anodised, Plastic, ABS
  • Degree of Protection: IP67
  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 20 m
  • Weight: 150 g
  • Operating modes: Continuous, Strobe
  • Complementary Products: ZBAG angle changer, Connection cables
wenglor mini bar lights from the LBT series can be configured for almost any application. Their compact, robust and flexible design makes these direct lights ideal for image processing applications with limited space. The mini bar lights can be operated in continuous mode or synchronized with the machine vision camera in strobe mode with increased luminosity (OverDrive). When combined with the ZBTG angle changers, the beam angle can be increased and the lighting can be designed flexibly and controlled via the visual field.
