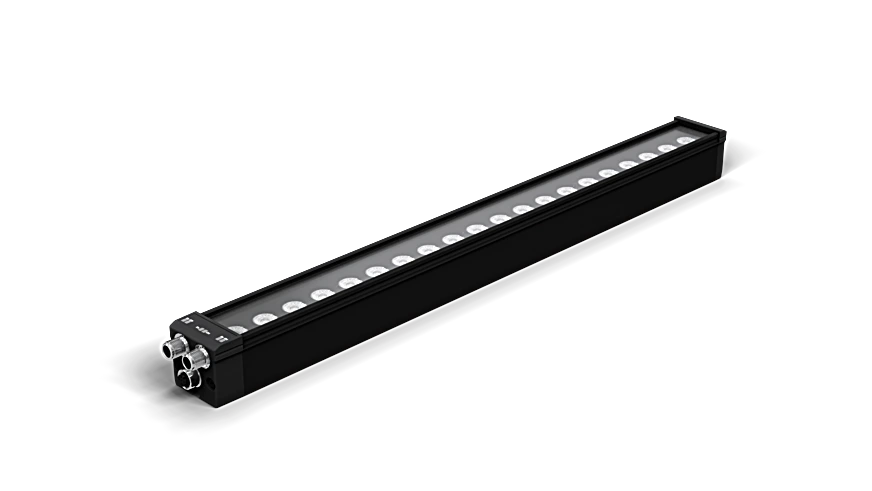

Wenglor LBLR501 Bar Light Link Red light, 500 mm

Bar Light Link Red light, 500 mm.

$1,275.00
Part Number
  • LBLR501
Highlights...

Features

  • Daisy chain
  • Flexibility: expand the beam angle with an Angle Changer
  • No external control required
  • Create patented curve effect to reduce LED hot spots
  • Light Source: Red Light
  • Wavelength: 630 nm
  • Beam angle: ± 7 °
  • Red light output: 237.5 W/m²
  • Measuring point distance: 200 mm
  • Compatible with: Angle Changer
  • Temperature Range: 32°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 38.4 W
  • Current Consumption Continuous Mode (Ub = 24 V): 1.6 A
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0 to 10 V ≙ 100 to 30%
  • OverDrive: no

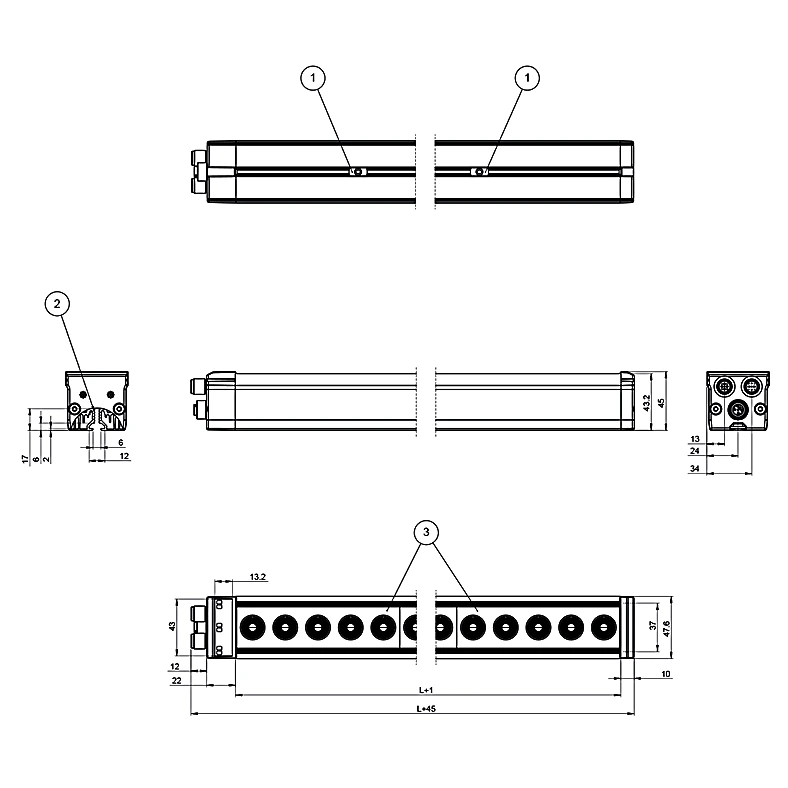

  • Luminous Field Length (L): 500 mm
  • Luminous Field Width (W): 31.5 mm
  • Luminous Field: 500 × 31.5 mm
  • Housing Material: Aluminum, anodised, Plastic, ABS, Plastic, PC
  • Degree of Protection: IP65
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA
  • Connection: 3 × M12 × 1; 5-pin
  • Max. cable lenght: 43 m
  • Weight: 1,050 g
  • Operating modes: Continuous, Strobe
  • Complementary Products: ZBAG angle changer, ZBAZ001 bar clamp, Connection cables

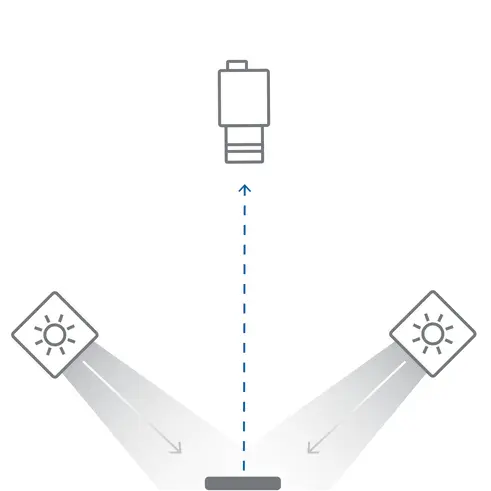

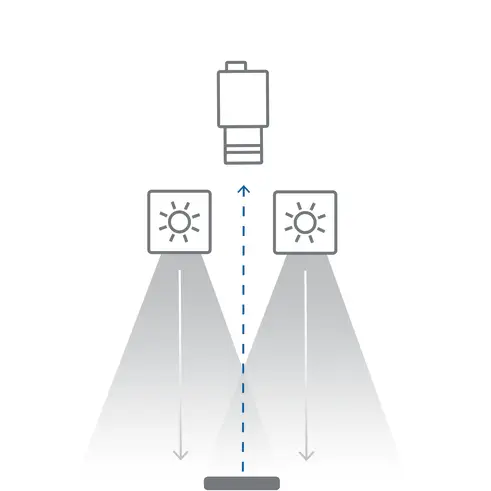

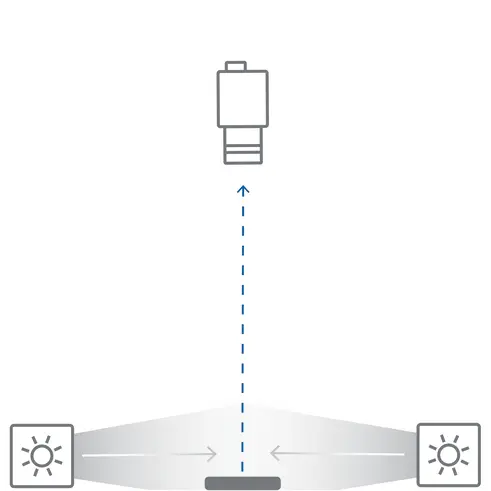

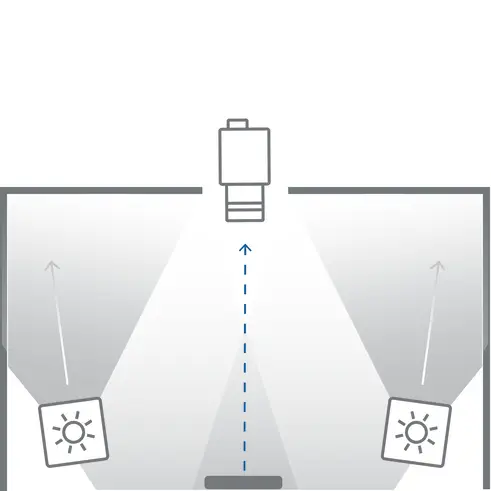

wenglor bar lights from the LBL series are suitable for both small and large working distances. The direct lights can create lighting effects like bright field, low angle of incidence, dark field and dome lighting. Some line scanning applications are also possible. The LBL bar lights can be synchronized in continuous mode or in strobe mode with the machine vision camera and other LBL lights and operated without an additional power supply. In combination with the ZBAG angle changers, the beam angle can be enlarged and designed flexibly.
