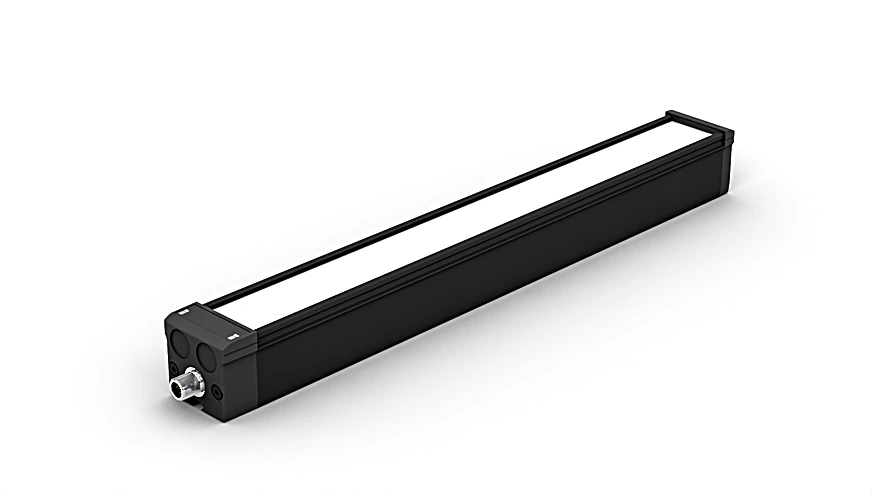

Wenglor LBDR301 Bar Light Diffuse Red light, 375 mm

Bar Light Diffuse Red light, 375 mm.

$1,446.00
Part Number
  • LBDR301
Highlights...

Features

  • No external control required
  • No LED hot spots
  • Very diffuse light
  • Light Source: Red Light
  • Wavelength: 630 nm
  • Beam angle: ± 65 °
  • Red light output: 230 W/m²
  • Temperature Range: 32°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 28.8 W
  • Current Consumption Continuous Mode (Ub = 24 V): 1.2 A
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0 to 10 V ≙ 100 to 30%
  • OverDrive: no

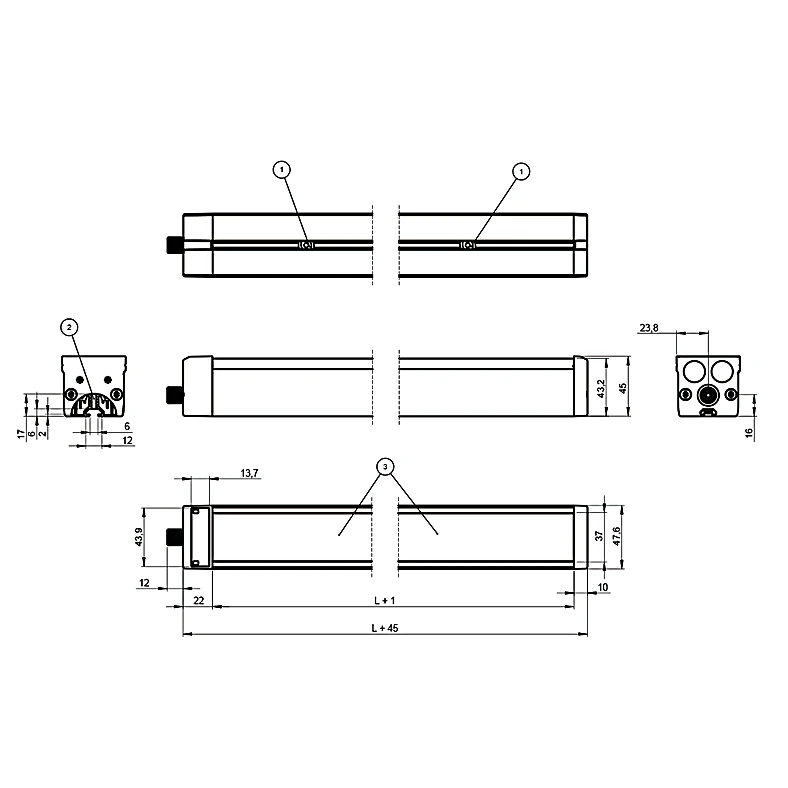

  • Luminous Field Length (L): 375 mm
  • Luminous Field Width (W): 31.5 mm
  • Luminous Field: 375 × 31.5 mm
  • Housing Material: Aluminum, anodised, Plastic, ABS-GF
  • Degree of Protection: IP65
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA
  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 60 m
  • Weight: 698 g
  • Operating modes: Continuous, Strobe
  • Complementary Products: ZBAZ001 bar clamp, ZC4G003 connection cable, ZDCG004 connection cable, ZDCG005 connection cable

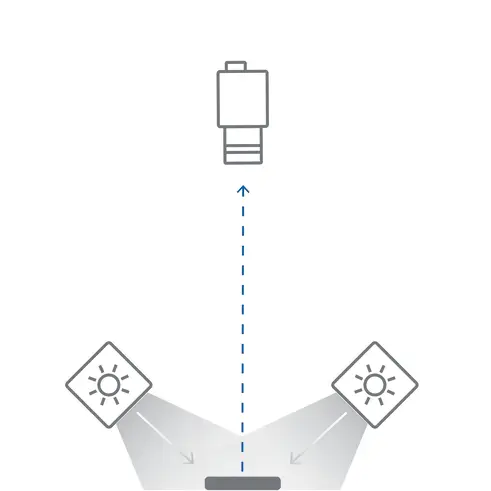

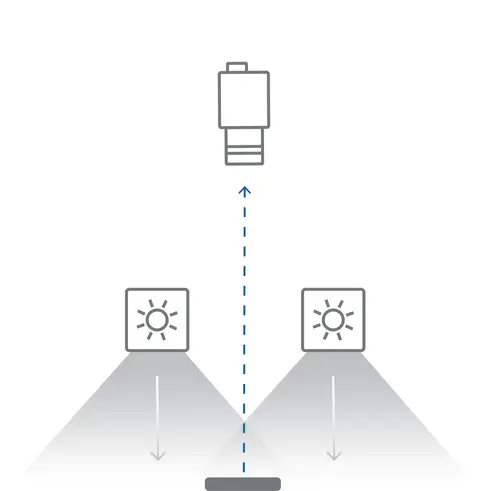

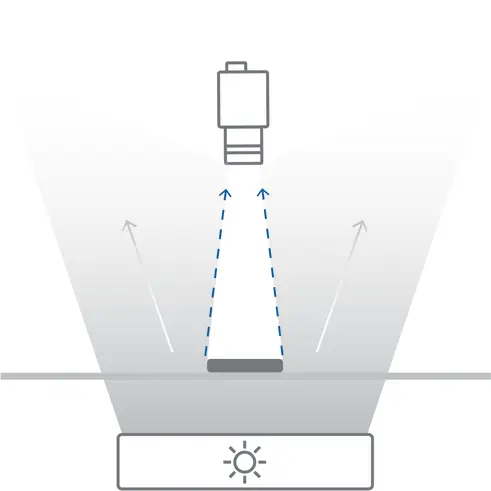

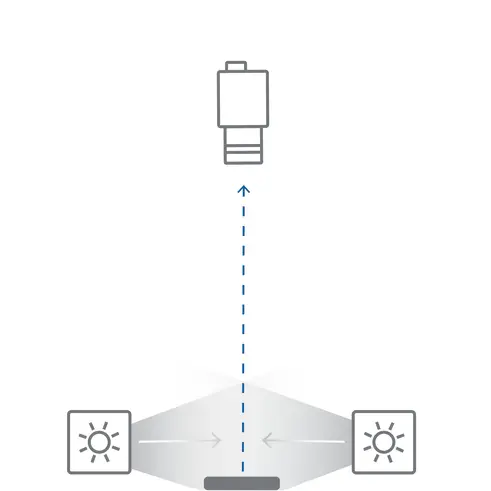

wenglor's LBD series bar lights are highly diffuse luminaires that are perfect for diffuse illumination at low angles of incidence, direct illumination at low working distances, and backlight illumination of specific features in the visual field. The LBD bar lights can be used in continuous mode or synchronized with the Machine Vision Camera in strobe mode via PNP or NPN inputs. The integrated power control and flexible mounting options make the illumination very easy to install and perfect for a wide range of applications in industrial image processing and identification.
