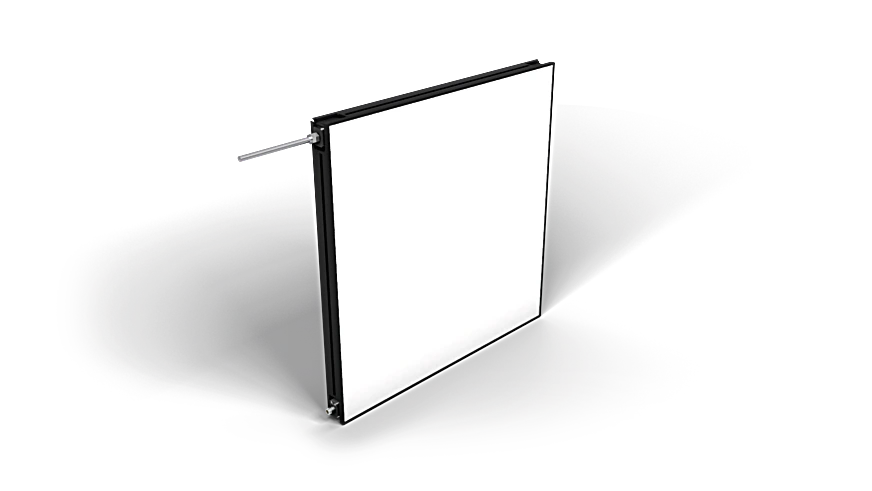

Wenglor LBBW601 Flat Light white light, 600 × 600 mm

Flat Light white light, 600 × 600 mm.

$5,828.00
Part Number
  • LBBW601
Highlights...

Features

  • High homogeneity
  • No external control required
  • High performance: high intensity even in continuous mode
  • Easy and flexible installation
  • Light Source: White Light
  • Color temperature: 6,500 K
  • White light output: 44,300 Lux
  • Temperature Range: 14°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 194.4 W
  • Current Consumption Continuous Mode (Ub = 24 V): 8.1 A
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0....10 V ≙ 100 to 30%
  • OverDrive: no

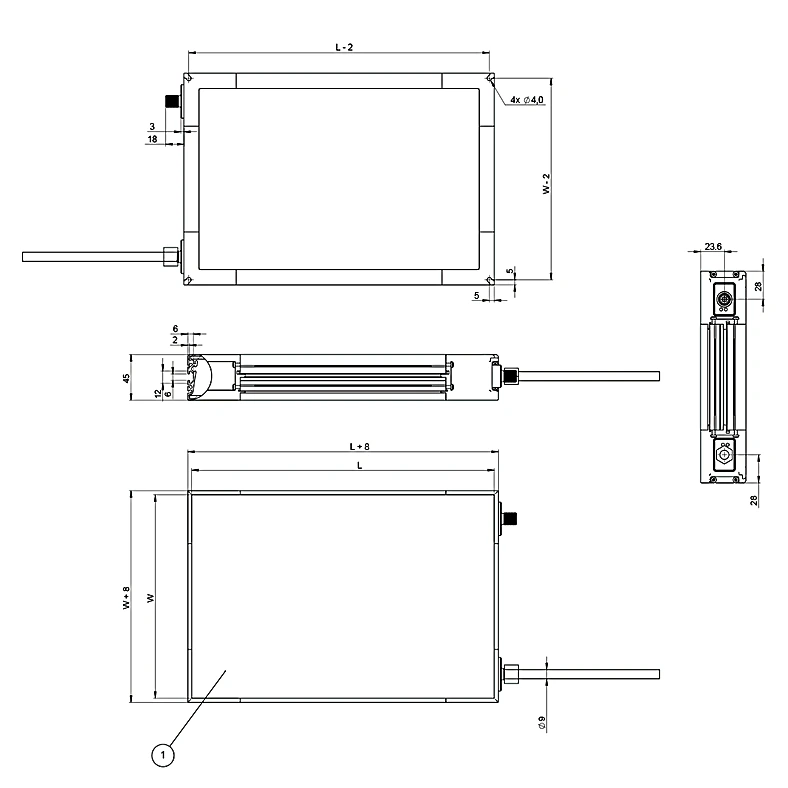

  • Luminous Field Length (L): 600 mm
  • Luminous Field Width (W): 600 mm
  • Luminous Field: 600 × 600 mm
  • Housing Material: Aluminum, anodised, Plastic, ABS-GF
  • Degree of Protection: IP50
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA

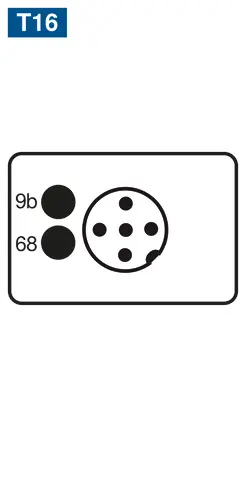

  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 10 m
  • Weight: 7,000 g
  • Operating modes: Continuous, Strobe
  • Complementary Products: ZBBX001 Mounting bracket

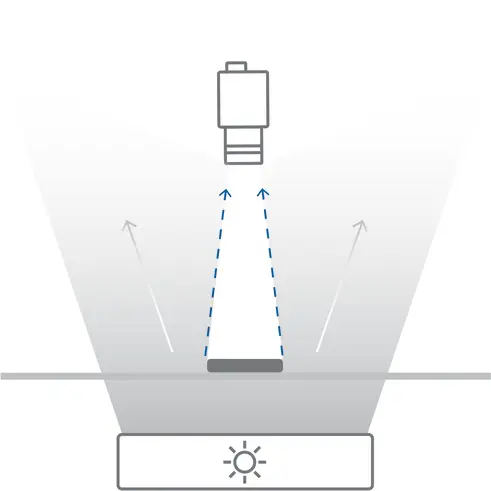

wenglor LBB backlights are ideally suited for Vision applications (e.g. silhouette lighting) in areas from 200 × 200 mm. They can be used in continuous mode or synchronized with the Machine Vision Camera in strobe mode via PNP or NPN inputs. Thanks to their diffused light, the backlights are ideal for applications with transmitted light or incident light. The illumination is extremely homogeneous with very small edges (4°mm), so the usable surface is very large and integration is very easy – thanks, among other things, to the T-slot mounting and anchor point on the entire housing of the illumination.
