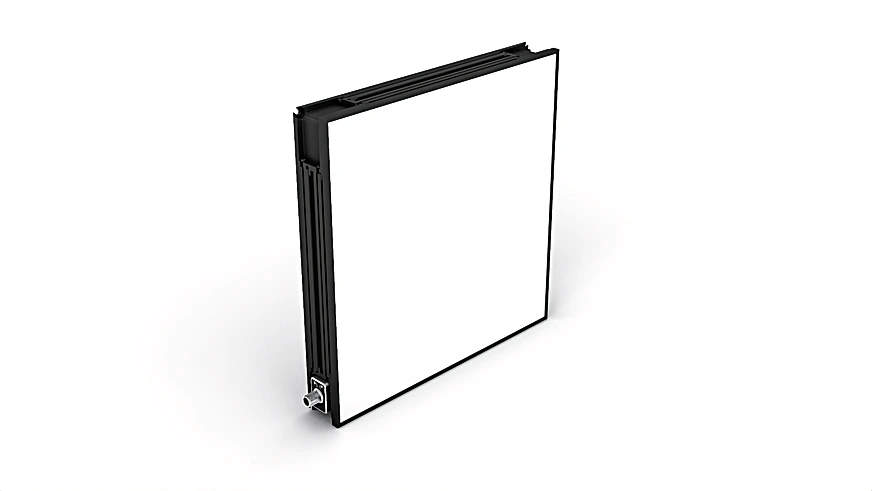

Wenglor LBBR301 Flat Light Red light, 300 × 300 mm

Flat Light Red light, 300 × 300 mm.

$1,713.00
Part Number
  • LBBR301
Highlights...

Features

  • High homogeneity
  • No external control required
  • High performance: high intensity even in continuous mode
  • Easy and flexible installation
  • Light Source: Red Light
  • Wavelength: 630 nm
  • Red light output: 144 W/m²
  • Temperature Range: 14°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 50.76 W
  • Current Consumption Continuous Mode (Ub = 24 V): 2.12 A
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0....10 V ≙ 100 to 30%
  • OverDrive: no

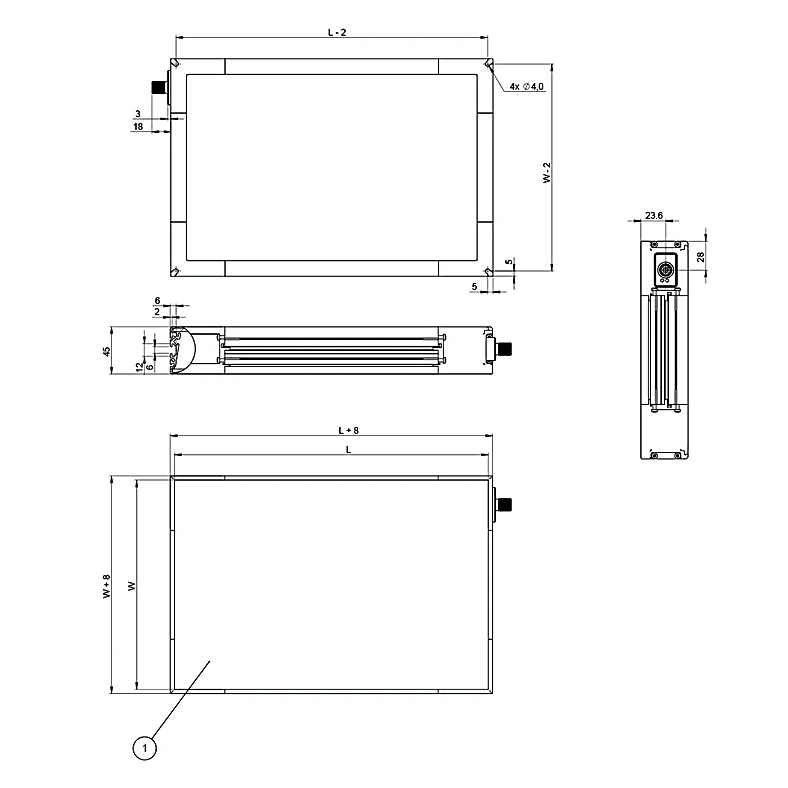

  • Luminous Field Length (L): 300 mm
  • Luminous Field Width (W): 300 mm
  • Luminous Field: 300 × 300 mm
  • Housing Material: Aluminum, anodised, Plastic, ABS-GF
  • Degree of Protection: IP50
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA

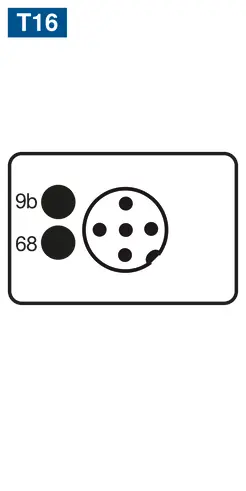

  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 10 m
  • Weight: 2,088 g
  • Operating modes: Continuous, Strobe
  • Complementary Products: ZC4G003 connection cable, ZDCG004 connection cable, ZDCG005 connection cable

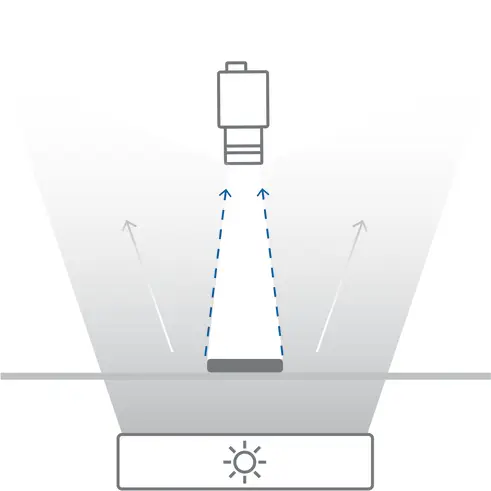

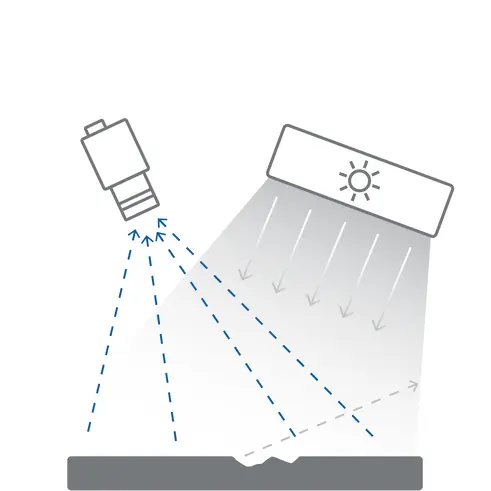

wenglor LBB backlights are ideally suited for Vision applications (e.g. silhouette lighting) in areas from 200 × 200 mm. They can be used in continuous mode or synchronized with the Machine Vision Camera in strobe mode via PNP or NPN inputs. Thanks to their diffused light, the backlights are ideal for applications with transmitted light or incident light. The illumination is extremely homogeneous with very small edges (4°mm), so the usable surface is very large and integration is very easy – thanks, among other things, to the T-slot mounting and anchor point on the entire housing of the illumination.
