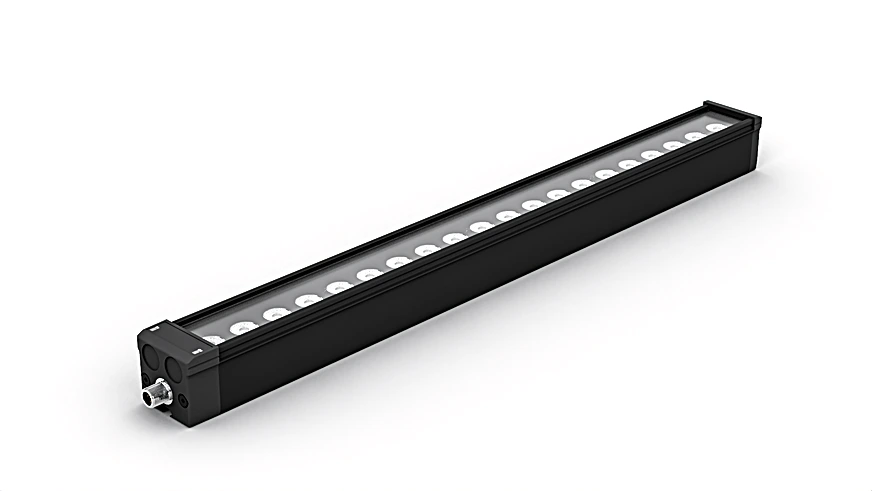

Wenglor LBAR501 Bar Light Red light, 500 mm

Bar Light Red light, 500 mm.

$1,131.00
Part Number
  • LBAR501
Highlights...

Features

  • Flexibility: expand the beam angle with an Angle Changer
  • No external control required
  • OverDrive
  • Create patented curve effect to reduce LED hot spots
  • Light Source: Red Light
  • Wavelength: 630 nm
  • Beam angle: ± 7 °
  • Red light output: 950 W/m²
  • Measuring point distance: 200 mm
  • Compatible with: Angle Changer
  • Temperature Range: -22°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 28.8 W
  • Peak power: 115.2 W
  • Current Consumption Continuous Mode (Ub = 24 V): 1.2 A
  • Current consumption flash mode OverDrive (operating voltage = 24 V): 4.8 A
  • Flash duration (max.): 30 ms
  • Duty cycle (max.): < 0,2
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0 to 10 V ≙ 100 to 30%
  • OverDrive: yes

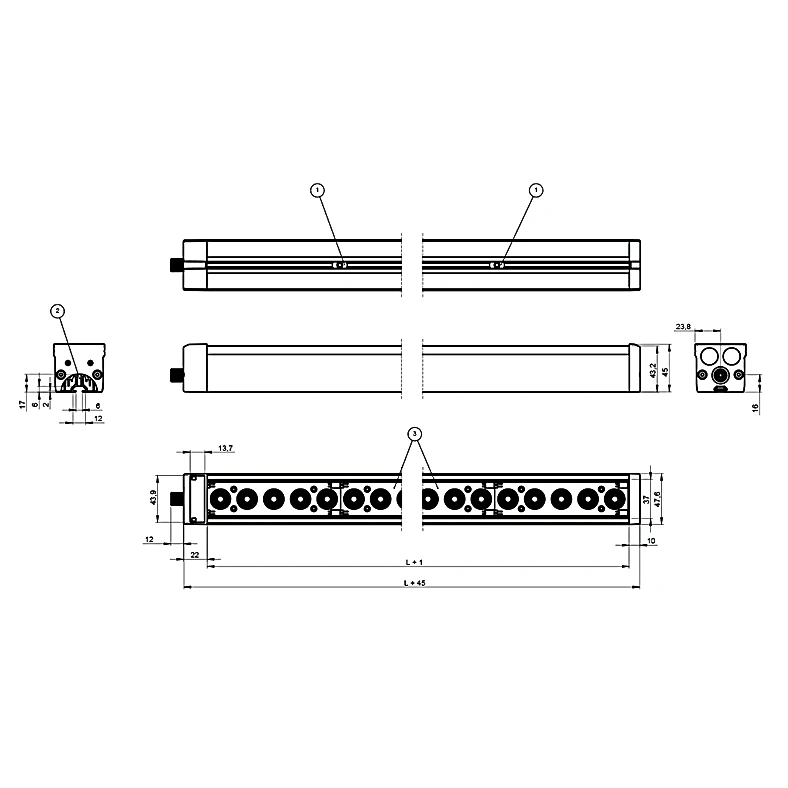

  • Luminous Field Length (L): 500 mm
  • Luminous Field Width (W): 31.5 mm
  • Luminous Field: 500 × 31.5 mm
  • Housing Material: Aluminum, anodised, Plastic, ABS, Plastic, PC
  • Degree of Protection: IP65
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA

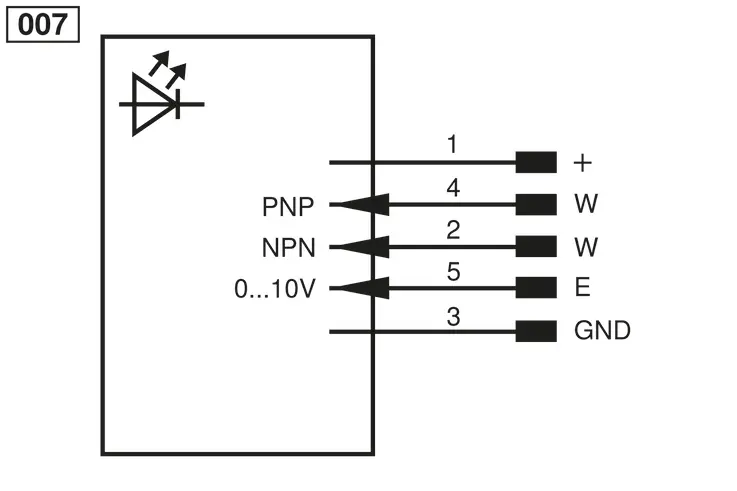

  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 150 m
  • Weight: 919 g
  • Operating modes: Continuous, Strobe
  • Complementary Products: ZBAG angle changer, ZBAZ001 bar clamp, ZC4G003 connection cable, ZDCG004 connection cable, ZDCG005 connection cable

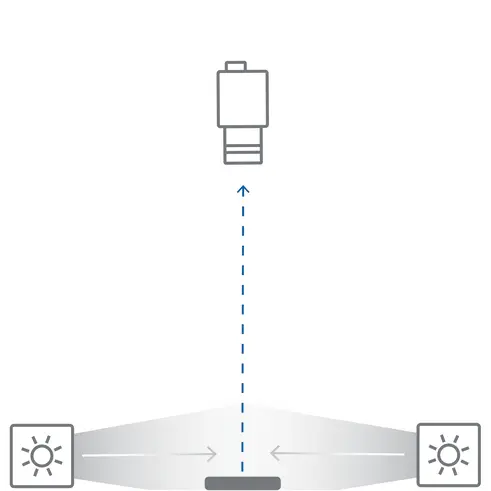

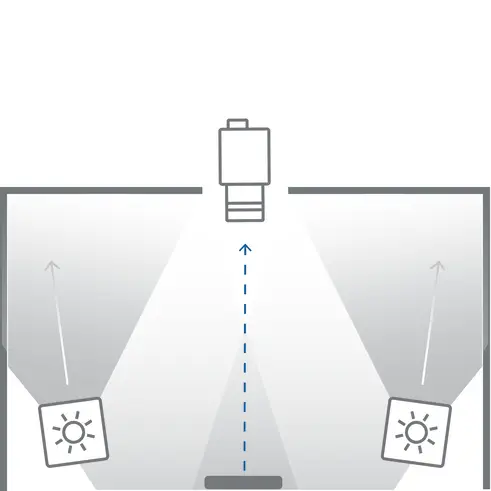

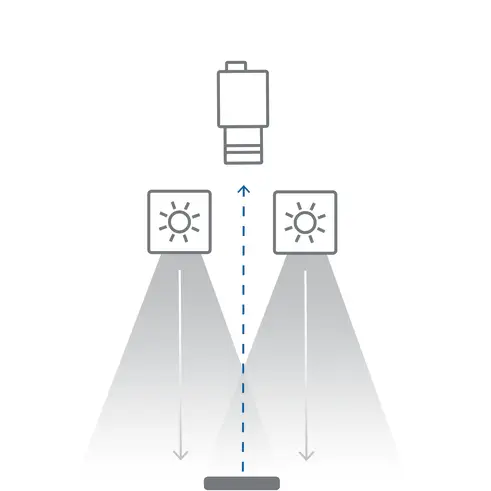

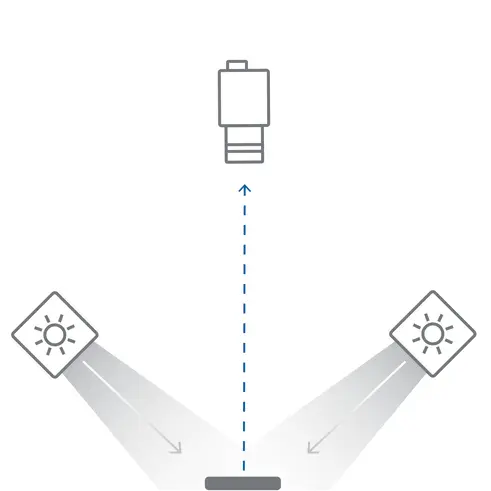

wenglor bar lights from the LBA series are suitable for both small and large working distances. The direct lights can create lighting effects like bright field, low angle of incidence, dark field and dome lighting. Some line scanning applications are also possible. The LBA bar lights can be operated in continuous mode with high intensity or synchronized with the machine vision camera in strobe mode with increased luminosity (OverDrive). In combination with the ZBAG angle changers, the beam angle can be enlarged and designed flexibly.
