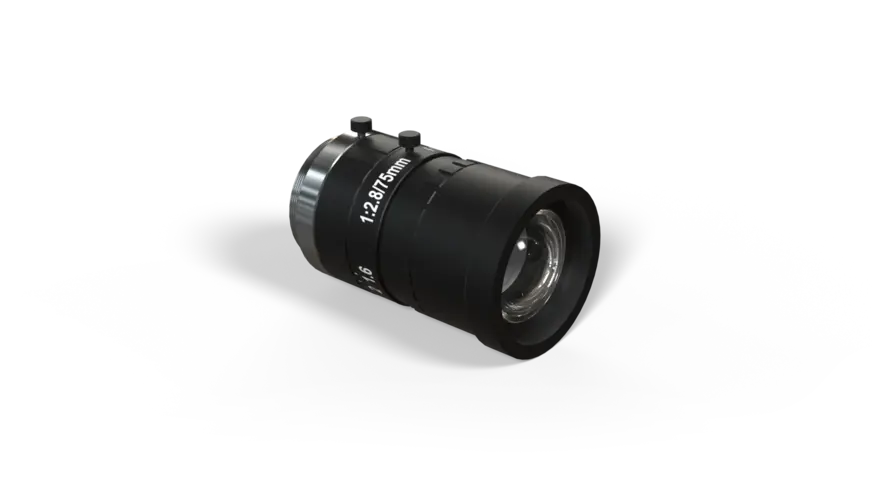

Wenglor LAC75-28-K01 Lens for weQube with C mount

Lens for weQube with C mount.

$540.00
Part Number
  • LAC75-28-K01
Highlights...

Features

  • Adjustable aperture
  • Adjustable focus
  • Fixed focal length lens with C mount threaded connection
  • Focal distance: 75 mm
  • Maximum sensor size: 2/3''
  • Minimum pixel size: 6.2 µm
  • Lens thread: C-Mount
  • Housing Material: Aluminum, anodised, Plastic, PE
  • Optic Cover: Glass
  • Aperture: arrestable, adjustable
  • Setting range aperture: F 2,8 to 22
  • Minimum object distance: 1,100 mm
  • Filter Screw Size: M30.5 × 0.5 mm
  • Temperature Range: 14°F to 122°F
  • Weight: 81 g
  • Packaging unit: 1 Piece
  • Working Distance: 1500 mm, 2000 mm
  • Visual Field: 85 × 54 mm, 115 × 73 mm
  • Complementary Products: Allen Key with Threaded Pins Z0070, Filter
Fixed focal length lenses with C mount threaded connection can be used, for example, on Smart Cameras with C mount connection. Adjustable aperture values and adjustable focus offer the greatest possible variability for the implementation of complex vision applications.
