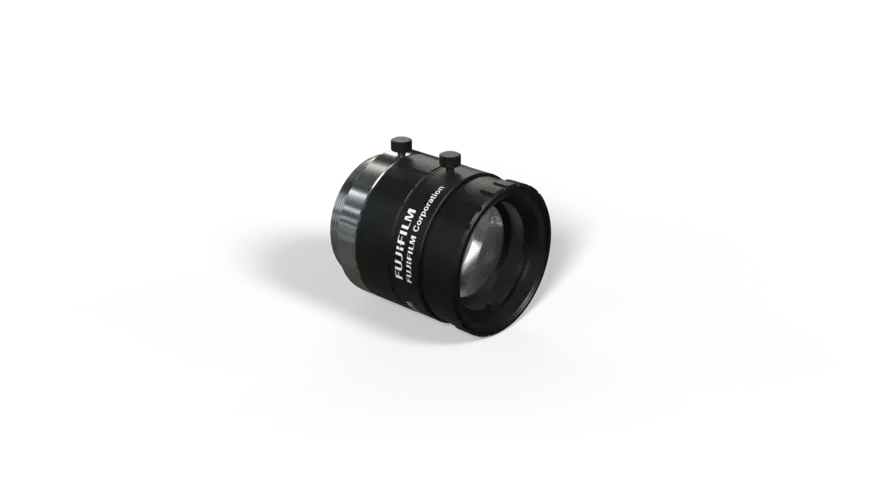

Wenglor LAC16-14-K01 Lens for weQube

Lens for weQube.

$540.00
Part Number
  • LAC16-14-K01
Highlights...

Features

  • Adjustable aperture
  • Adjustable focus
  • Fixed focal length lens with C mount threaded connection
  • Focal distance: 16 mm
  • Maximum sensor size: 2/3''
  • Minimum pixel size: 6.2 µm
  • Lens thread: C-Mount
  • Housing Material: Aluminum, anodised, Plastic, PE
  • Optic Cover: Glass
  • Aperture: arrestable, adjustable
  • Setting range aperture: F 1,4 to 16
  • Minimum object distance: 100 mm
  • Filter Screw Size: M25.5 × 0.5 mm
  • Temperature Range: 14°F to 122°F
  • Weight: 45 g
  • Packaging unit: 1 Piece
  • Working Distance: 100 mm, 200 mm, 600 mm
  • Visual Field: 23 × 15 mm, 51 × 33 mm, 164 × 105 mm
  • Complementary Products: Allen Key with Threaded Pins Z0070, Protective Housing ZSZ-0x-01
Fixed focal length lenses with C mount threaded connection can be used, for example, on Smart Cameras with C mount connection. Adjustable aperture values and adjustable focus offer the greatest possible variability for the implementation of complex vision applications.
