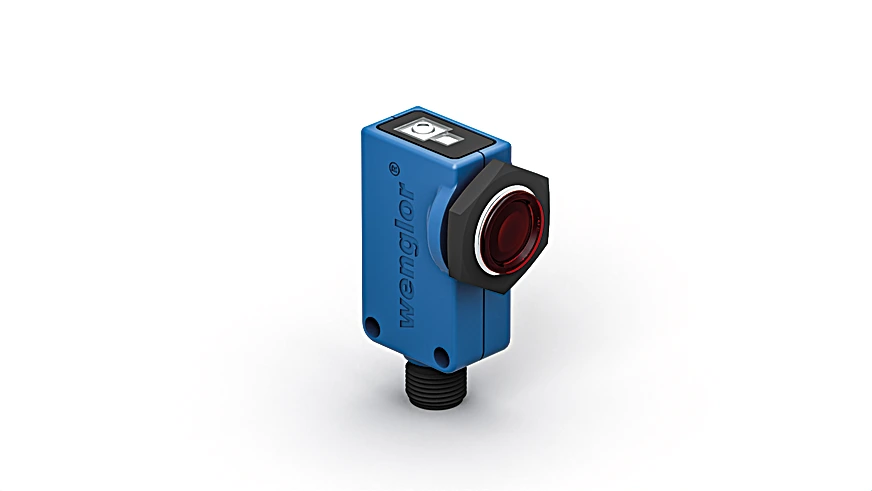

Wenglor KR87PCT2 Retro-Reflex Sensor for Transparent Objects

Retro-Reflex Sensor for Transparent Objects.

$260.00
Part Number
  • KR87PCT2
Highlights...

Features

  • Recognition of clear glass
  • Simple installation
  • Teach-in, external teach-in
  • Range: 4,000 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Clear Glass Recognition: yes
  • Switching Hysteresis: < 5 %
  • Light Source: Red Light
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Opening Angle: 5 °
  • Optics: Single-Lens Optic
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 2 kHz
  • Response Time: 250 µs
  • On-/Off-Delay (RS-232): 0 to 5 s
  • Temperature Drift: < 5 %
  • Temperature Range: 14°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: NT, MT
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Plastic, PBT, Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M12 × 1; 4-pin
  • Weight: 28 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
  • PNP NO: yes
  • External teach-in input: yes
  • RS-232 with Adapterbox: yes
  • Circuit: NC, NC/NO, NO
  • Other parameters: Off-delay, On-delay
  • RQ100BA: 0 to 4 m
  • RE18040BA: 0 to 3 m
  • RQ84BA: 0 to 4 m
  • RR84BA: 0 to 4 m
  • RE9538BA: 0 to 1.5 m
  • RE6151BM: 0 to 3.6 m
  • RR50_A: 0 to 3 m
  • RE6040BA: 0 to 3.5 m
  • RE8222BA: 0 to 2 m
  • RR34_M: 0 to 1.8 m
  • RE3220BM: 0 to 1.8 m
  • RE6210BM: 0 to 1.2 m
  • RR25_M: 0 to 1.4 m
  • RR25KP: 0 to 1 m
  • RR21_M: 0 to 1 m
  • ZRAE02B01: 0 to 2 m
  • ZRME01B01: 0 to 0.6 m
  • ZRME03B01: 0 to 2.8 m
  • ZRMR02K01: 0 to 0.8 m
  • ZRMS02_01: 0 to 0.9 m
  • RF505: 0 to 1.2 m
  • RF508: 0 to 1.1 m
  • RF258: 0 to 1 m
  • ZRDF__K01: 0 to 4 m
  • Z90R012: 0 to 1.1 m
  • Z90R013: 0 to 2.43 m
  • Z90R014: 0 to 2.1 m
  • Z90R015: 0 to 1.3 m
  • Complementary Products: Reflector, Reflector Foil, Adapterbox A232, Dust Extraction Tube STAUBTUBUS-01, PNP-NPN Converter BG2V1P-N-2M, Software
A reflector must be used in combination with these sensors. wenglor has the right retro-reflex light barrier for every application. Even crystal-clear objects and sheet products can be reliably recognized. The sensor is easy to install with its integrated M18 threaded fixation, and can be easily protected as well. Time delay can be activated by RS-232 interface.
