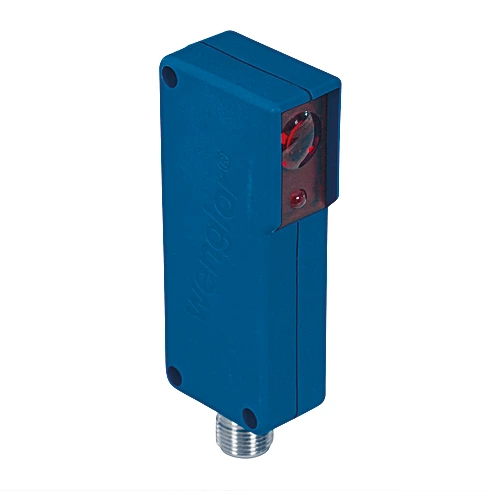

Wenglor KN88PA3 Retro-Reflex Sensor for Transparent Objects

Features

• Foil detection
• Recognition of clear glass
• Recognition of PET bottles
• Range: 2,600 mm
• Reference Reflector/Reflector Foil: RQ100BA
• Clear Glass Recognition: yes
• Switching Hysteresis: < 5 %
• Light Source: Red Light
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 3 °
• Optics: Single-Lens Optic
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 40 mA
• Switching Frequency: 2,500 Hz
• Response Time: 200 µs
• Temperature Drift: < 3 %
• Temperature Range: 14°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III

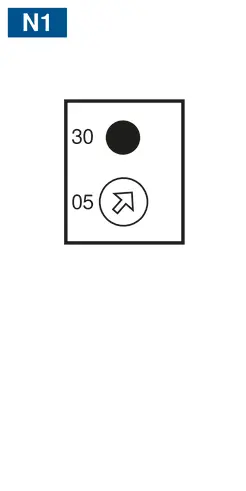

• Setting Method: Potentiometer
• Housing Material: Plastic
• Full Encapsulation: yes
• Degree of Protection: IP67
• Connection: M12 × 1; 4-pin
• Weight: 49 g
• Scope of delivery: 1 × operating instructions, 1 × BEF-SET-02 mounting set, 1 × sensor
• PNP NC, PNP NO: yes
• Circuit: NC, NC+NO, NO
• RQ100BA: 0 to 2.6 m
• RE18040BA: 0 to 1.4 m
• RQ84BA: 0 to 2.4 m
• RR84BA: 0 to 2.3 m
• RE9538BA: 0 to 0.9 m
• RE6151BM: 0 to 2.3 m
• RR50_A: 0 to 2.3 m
• RE6040BA: 0 to 2.5 m
• RE8222BA: 0 to 0.95 m
• RR34_M: 0 to 1.3 m
• RE3220BM: 0 to 0.9 m
• RE6210BM: 0 to 0.75 m
• RR25_M: 0 to 1 m
• RR25KP: 0 to 0.7 m
• RR21_M: 0 to 0.75 m
• ZRAE02B01: 0 to 1.2 m
• ZRME01B01: 0 to 0.4 m
• ZRME03B01: 0 to 1 m
• ZRMR02K01: 0 to 0.5 m
• ZRMS02_01: 0 to 0.6 m
• RF505: 0 to 0.8 m
• RF508: 0 to 0.8 m
• RF258: 0 to 0.6 m
• ZRDF__K01: 0 to 1.8 m
• Complementary Products: Reflector, Reflector Foil, Dust Extraction Tube STAUBTUBUS-03, Set Protective Housing ZSN-NN-02, PNP-NPN Converter BG2V1P-N-2M
