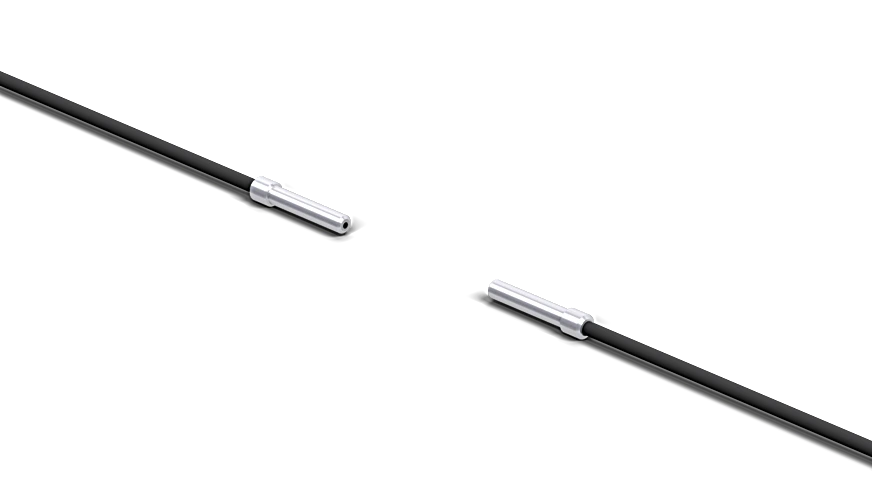

Wenglor K16 Plastic Fiber-Optic Cable Through-Beam Mode

Features

• Especially suitable in applications where only minimal space is available
• Fiber-optic cable can be cut to length by the cutting tool
• Fiber Core Diameter: 1 mm
• Fiber: Step Index
• Fiber Distribution: parallel arrangement
• Range with Sensor Type: 350 mm
• Range with LA27: 1,400 mm
• Range with LA27 (2 pieces): 2,800 mm
• Opening Angle: 55 °
• Light Spot Diameter with LA27: see table 1
• Temperature Range: -40°F to 185°F
• Bending Radius: 20 mm
• Fiber-Optic Length L: 2 m
• Jacket Material: Plastic, PE
• Fiber Optic Material: Plastic, PMMA
• Material End Sleeve: Stainless steel, V2A (1.4305/303)
• Jacket Diameter: 2.2 mm
• Light Emission: straight
• Weight: 22 g
• Packaging unit: 1 Piece
• Scope of delivery: 1 × Z0015 cutting tool, 2 × fiber-optic cables
• Range: 10 mm, 20 mm, 30 mm
• Light Spot Diameter: 1 mm, 2 mm, 4 mm
• Complementary Products: Lens LA27
