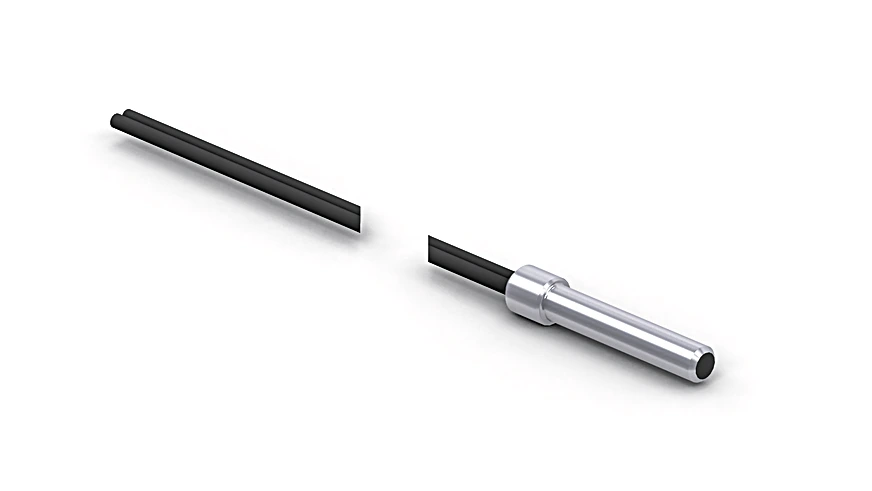

Wenglor K15 Plastic Fiber-Optic Cable Reflex Mode

Features

• Especially suitable in applications where only minimal space is available
• Fiber-optic cable can be cut to length by the cutting tool
• Fiber Core Diameter: 0.5 mm
• Fiber: Step Index
• Fiber Distribution: coaxial arrangement
• Range with Sensor Type: 60 mm
• Range with LA27: 10 to 30 mm
• Opening Angle: 55 °
• Light Spot Diameter with LA27: see table 1
• Temperature Range: -40°F to 185°F
• Bending Radius: 15 mm
• Fiber-Optic Length L: 2 m
• Jacket Material: Plastic, PE
• Fiber Optic Material: Plastic, PMMA
• Material End Sleeve: Stainless steel, V2A (1.4305/303)
• Jacket Diameter: 1.3 mm *
• Light Emission: straight
• Weight: 16 g
• Packaging unit: 1 Piece
• Scope of delivery: 1 × Z0049 mounting adapter, 1 × fiber-optic cable, 1 × Z0015 cutting tool
• Detection Range: 10 mm, 20 mm, 30 mm
• Light Spot Diameter: 0,5 mm, 1 mm, 2 mm
• Complementary Products: Lens LA27
