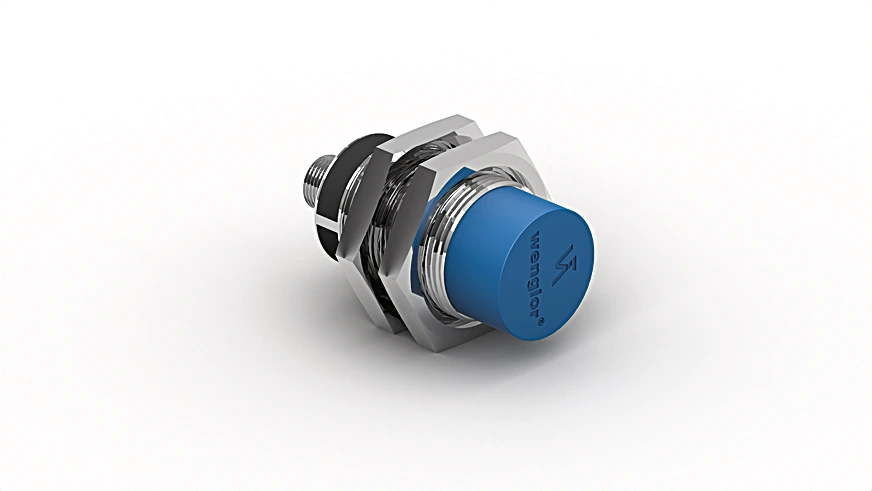

Wenglor IX130RM65MG3 Inductive Sensor with Analog Output

Features

• Working Range: 3 to 13 mm
• Measuring Distance: 8 mm
• Measuring Range: 10 mm
• Correction Factors Stainless Steel V2A/CuZn/Al: 1/1/1
• Mounting: Non-flush

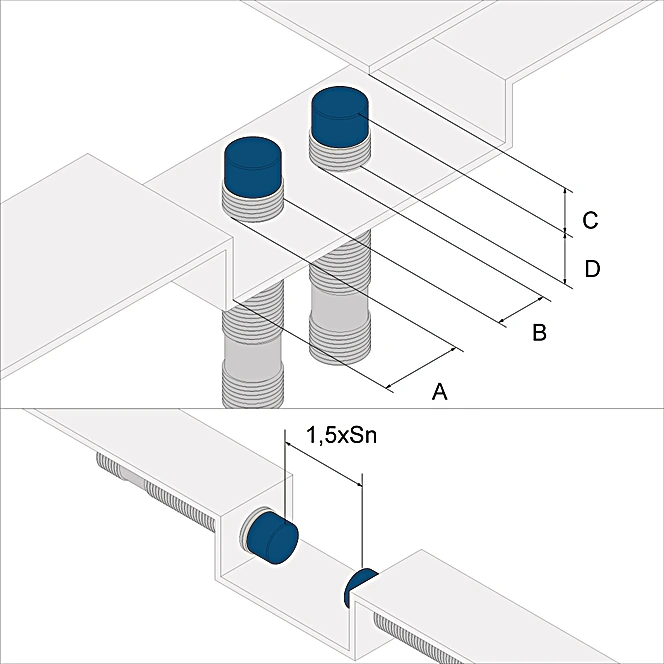

• Mounting A/B/C/D in mm: 30/30/36/20
• Standard Target FE360, thickness 1 mm: 39 × 39 mm
• Linearity: < 1 %
• Resolution: 4 µm
• Supply Voltage: 18 to 30 V DC
• Current Consumption (Ub = 24 V): < 30 mA
• Cut-Off Frequency: 900 Hz
• Temperature Drift: 10 µm/K
• Temperature Range: 14°F to 158°F
• Analog Output: 0 to 10 V
• Load Current Voltage Output: < 1 mA
• Resistant to Magnetic Fields: yes
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III
• Housing Material: Brass, nickel-plated
• Sensing face: Plastic, PBT
• Full Encapsulation: yes
• Degree of Protection: IP67

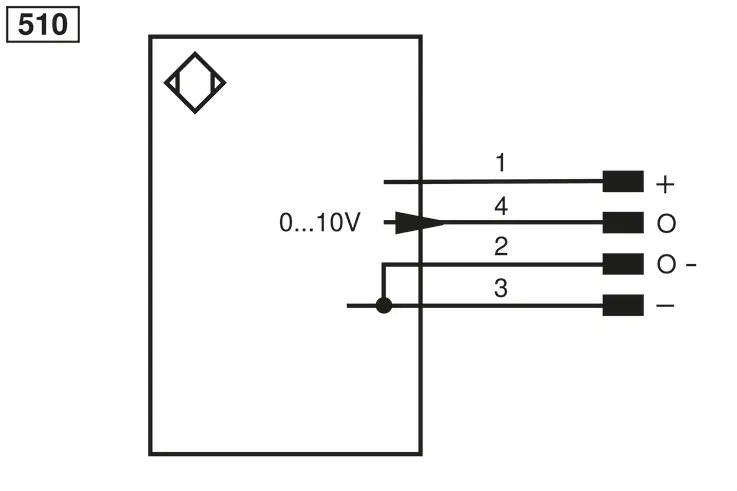

• Connection: M12 × 1; 4-pin
• Weight: 80 g
• Stock Type: X
• Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M30-E001 hex nut, 1 × sensor
• Packaging unit: 1 Piece
• Analog Output: yes
• Complementary Products: Analog Evaluation Unit AW02, IO-Link converter
