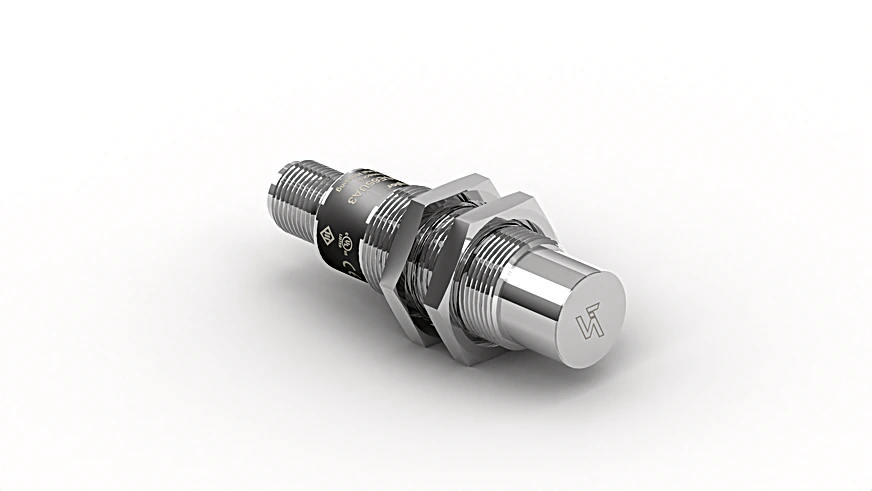

Wenglor IW120SE65UA3 Inductive Sensor with Full-Metal Housing

Inductive Sensor with Full-Metal Housing.

$216.00
Part Number
  • IW120SE65UA3
Highlights...

Features

  • Pressure resistant
  • Stainless steel housing
  • IP68/IP69K
  • Switching Distance: 10 mm
  • Correction Factors Stainless Steel V2A/CuZn/Al: 0,94/0,35/0,31
  • Mounting: Non-flush

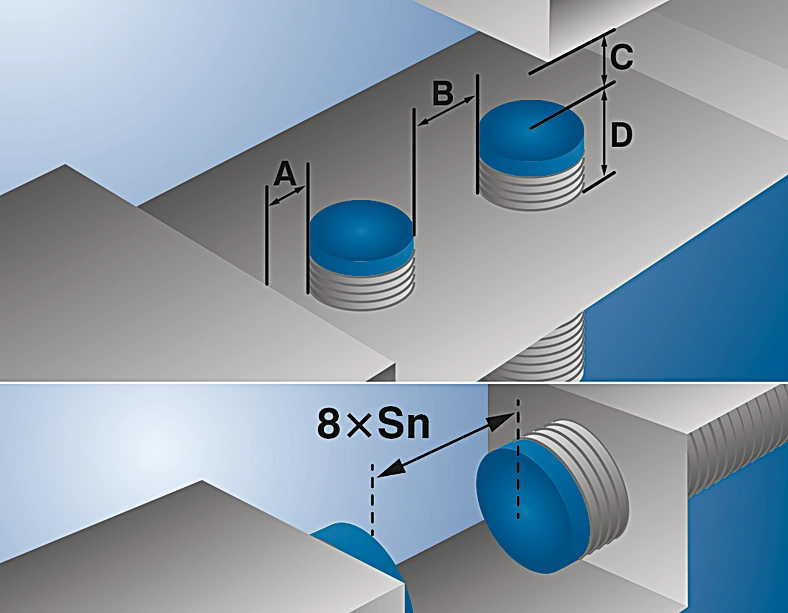

  • Mounting A/B/C/D in mm: 18/52/36/16
  • Mounting A/B/C/D (V2A) in mm: 18/52/36/12
  • Switching Hysteresis: < 15 %
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 400 Hz
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 176°F
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 400 mA
  • Residual Current Switching Output: < 100 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Stainless steel, V4A
  • Sensing face: Stainless steel, V4A
  • Full Encapsulation: yes
  • Degree of Protection: IP69K, IP68
  • Connection: M12 × 1; 4-pin
  • Pressure Resistance Sensor Area: 45 bar
  • Ex II 3G Ex nA IIC T5 Gc X: yes
  • Ex II 3D Ex tc IIIC T194°F Dc IP6X X: yes
  • Weight: 70 g
  • MTTFd (EN ISO 13849-1): 2,206.08 a
  • Stock Type: X
  • Scope of delivery: 1 × information label ATEX Z0002, 1 × Z0005 hex nut, 1 × sensor
  • Packaging unit: 1 Piece
  • PNP NC, PNP NO: yes
  • Complementary Products: Circlip Z0007, PNP-NPN Converter BG2V1P-N-2M
The inductive sensors with full-metal housing are suitable for harsh ambient conditions thanks to the 316L stainless steel housing. In addition, the sensors are ATEX-certified, which means that they can also be used in potentially explosive areas. The sensors with full-metal housing impress with their easy installation and reliable switching behavior.
