Wenglor IPTH002 Inductive Sensor with Standard Switching Distances

Inductive Sensor with Standard Switching Distances.

$129.00
Part Number
  • IPTH002
Highlights...

Features

  • Switching Distance: 2 mm
  • Switching Hysteresis: < 15 %
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 800 Hz
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 158°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 2 V DC
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Housing Material: Plastic, PBT

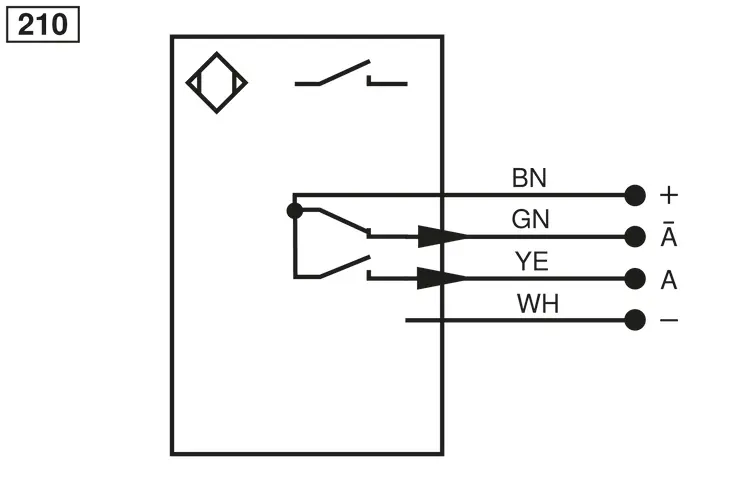

  • Connection: Cable; 4-wire
  • Cable length (L): 700 mm
  • Cable Jacket Material: Plastic, PUR
  • Wire cross-section: 0.25 mm²
  • Weight: 30 g
  • MTTFd (EN ISO 13849-1): 2,418.19 a
  • Scope of delivery: 1 × sensor
  • PNP NO: yes
  • PNP NC: yes
