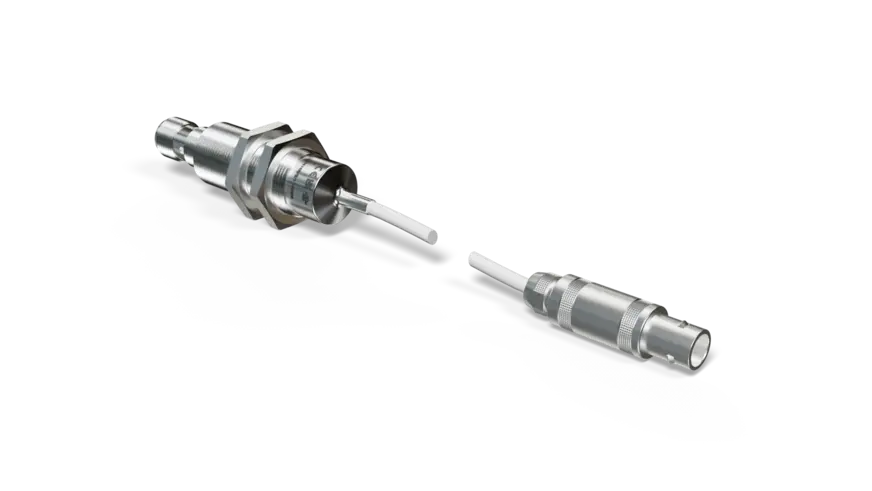

Wenglor INTT351 Inductive Analysis Module for Extreme Temperature Ranges

Features

• Interchangeable sensor head
• Minimal mounting clearance thanks to wenglor weproTec
• Long service life at temperatures of up to 482°F
• Switching distance configurable via IO-Link
• Special cable for dynamic applications
• Switching Distance: 40 mm
• Use: With INTT320
• Intended use: For dynamic applications
• Supply Voltage: 10 to 30 V DC
• Supply Voltage with IO-Link: 18 to 30 V DC
• Current Consumption (Ub = 24 V): < 15 mA
• Switching Frequency: 50 Hz
• Temperature Drift: < 10 %
• Analysis module temperature range: 32°F to 158°F
• Number of Switching Outputs: 2
• Switching Output Voltage Drop: < 1.5 V
• Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 100 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Interface: IO-Link V1.1
• Protection Class: III
• Analysis module material: Stainless steel, V2A (1.4305/303)
• Degree of protection, analysis module: IP65
• Degree of protection for push-pull connector: IP50, IP51*

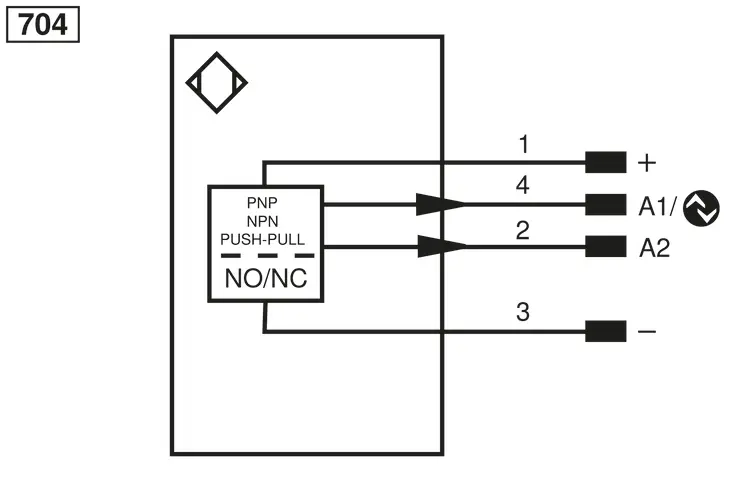

• Connection: M12 × 1; 4-pin

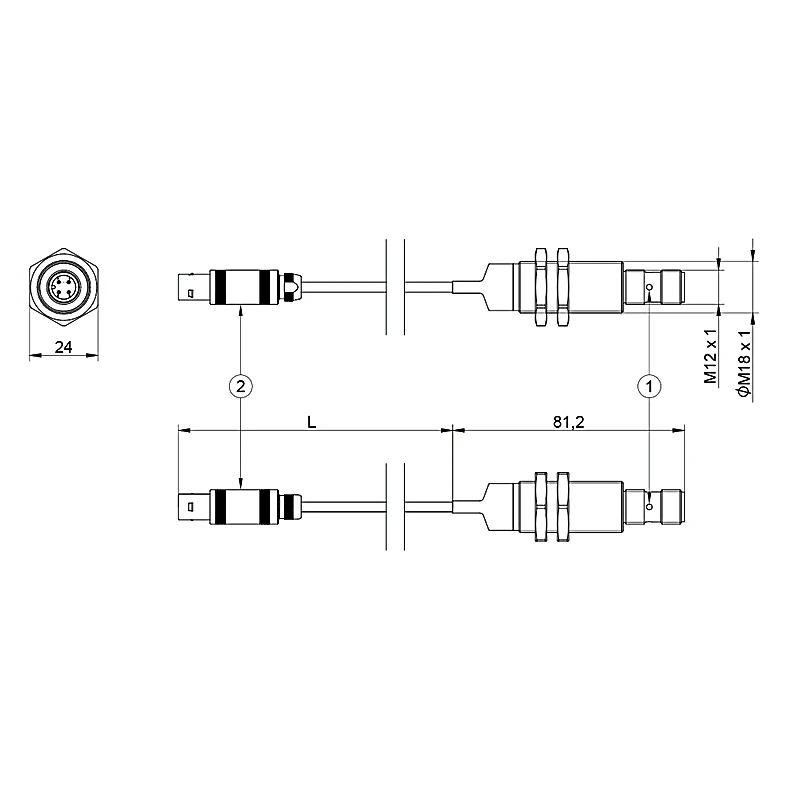

• Cable length (L): 20 m
• Cable Jacket Material: Plastic, PFA
• Outer diameter cable: 3.7 mm
• Bending Radius: > 18.5 mm
• PWIS-free: yes
• Weight: 971 g
• MTTFd (EN ISO 13849-1): 3,706.54 a
• Scope of delivery: 1 × analysis module, 1 × initial start-up instructions, 1 × MUTTER-M18-E003 hex nut

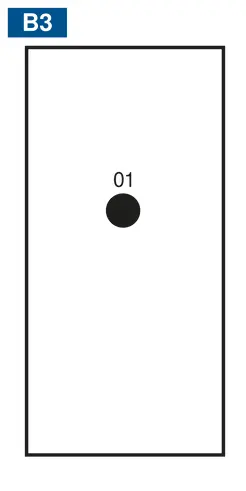

• Error Indicator: yes
• Programmable switching distance: 30/35/40 mm
• IO-Link: yes
• Error Output: yes
• PNP NO: yes
• Output: Error Output, Push-pull, NPN, PNP
• Circuit: NC, NC+NO, NO
• Complementary Products: IO-Link Master, Inductive sensor head, Software
