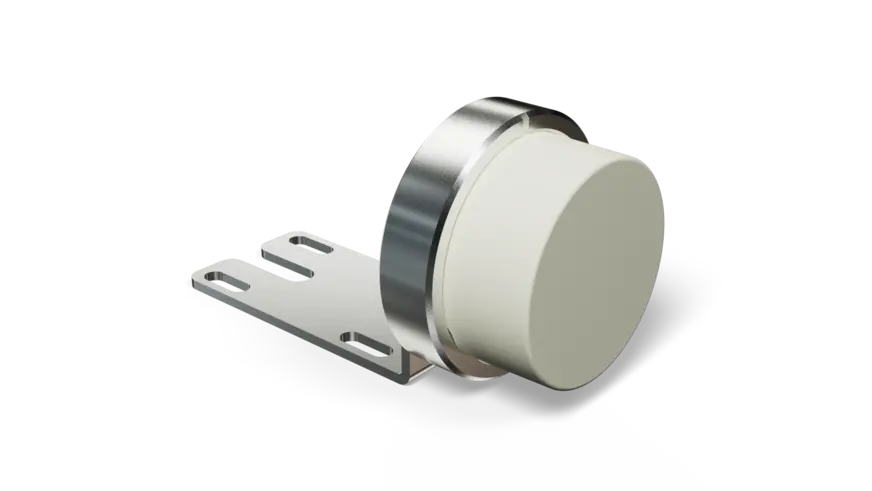

Wenglor INTT320 Inductive Sensor Head for Extreme Temperature Ranges

Inductive Sensor Head for Extreme Temperature Ranges.

$1,076.00
Part Number
  • INTT320
Highlights...

Features

  • Interchangeable sensor head
  • Easy replacement thanks to quick-release fastener
  • Minimal mounting clearance thanks to wenglor weproTec
  • Long service life at temperatures of up to 482°F
  • Switching distance configurable via IO-Link
  • Switching Distance: 40 mm
  • Standard Target: 120 × 120 mm
  • Correction Factors Stainless Steel V2A/CuZn/Al: 1,10/0,65/0,58
  • Mounting: Non-flush

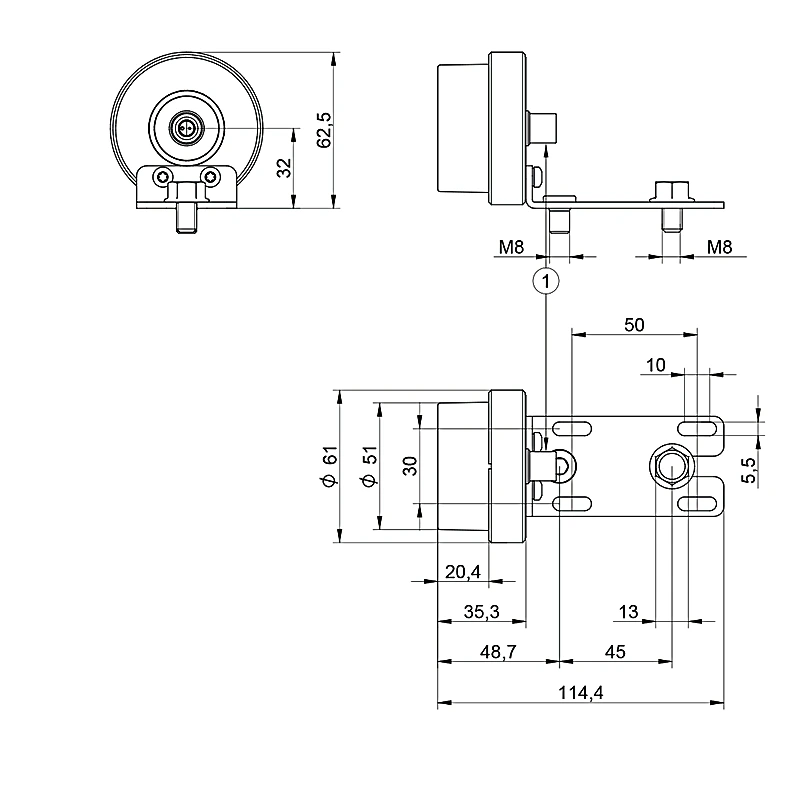

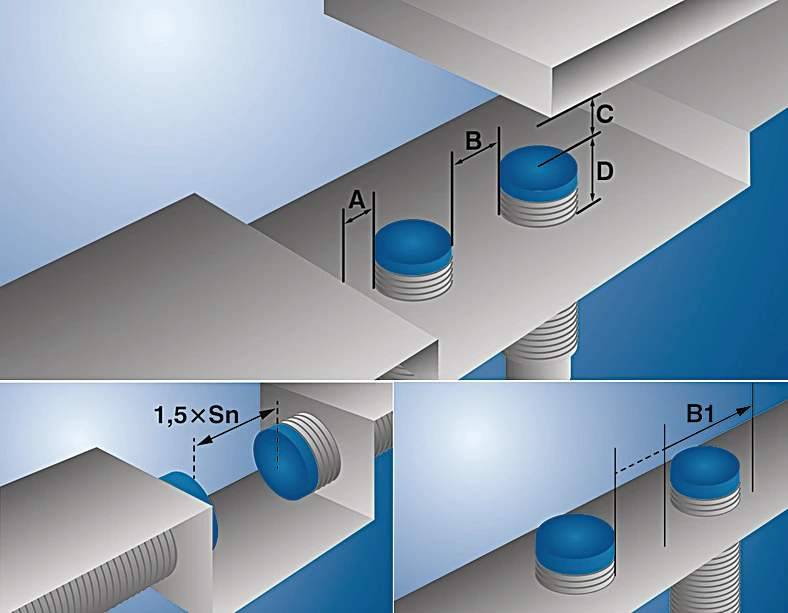

  • Mounting A/B/C/D in mm: 30/130/80/20
  • Mounting B1 in mm: 0 to 70
  • Switching Hysteresis: < 10 %
  • Use: With INTT3xx analysis module
  • Sensor head temperature range: 14°F to 482°F
  • Service Life (T = 392°F): 100,000 h
  • Service Life (T = 482°F): 60,000 h
  • Sensing face: Plastic, PEEK
  • Sensor head material: Stainless steel, V2A (1.4305/303)
  • Degree of Protection: IP50, IP51*
  • PWIS-free: yes
  • Weight: 519 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor head, 2 × M8 screws
  • Programmable switching distance: 30/35/40 mm
  • IO-Link: yes
  • Error Output: yes
  • PNP NO: yes
  • Complementary Products: Inductive analysis module, IO-Link Master, Software
The high-temperature inductive sensors are designed for use in very hot work environments and consist of a sensor head and a separate analysis module with cable. Long switching distances and a long service life in hot areas ensure maximum system reliability. Interchangeable sensor heads and numerous standard cable lengths with integrated analysis module are available separately. weproTec technology makes it possible to install the sensors directly next to or opposite one another. In addition, IO-Link can be used to individually configure sensor parameters such as switching distances and output functions.
