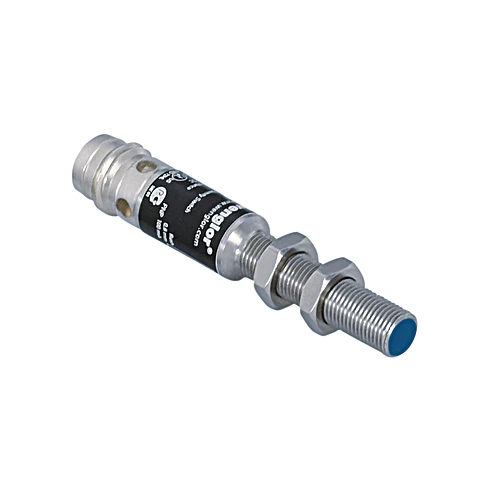

Wenglor IL008BE42VB8 Inductive Sensor with Standard Switching Distances

Inductive Sensor with Standard Switching Distances.

$139.00
Part Number
  • IL008BE42VB8
Highlights...

Features

  • Switching Distance: 0.8 mm
  • Correction Factors Stainless Steel V2A/CuZn/Al: 0,68/0,45/0,36
  • Mounting: Flush

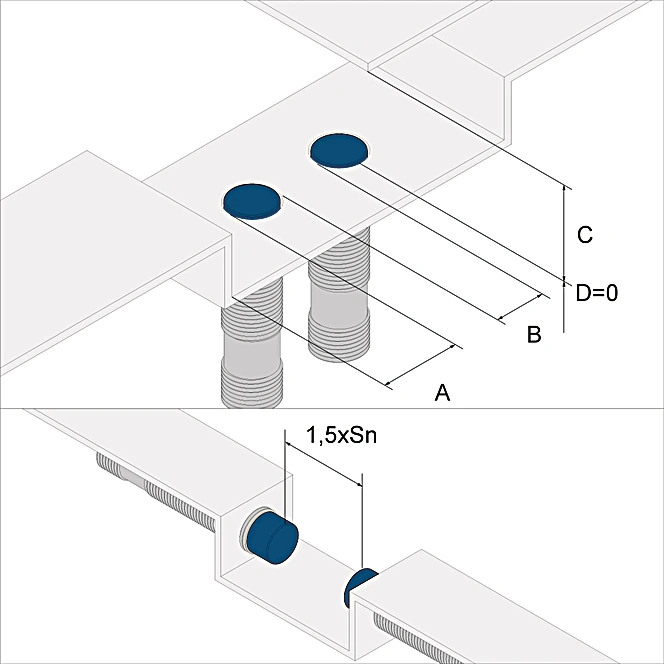

  • Mounting A/B/C/D in mm: 0/5/2,4/0
  • Switching Hysteresis: < 15 %
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 10 mA
  • Switching Frequency: 5 kHz
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 176°F
  • Switching Output Voltage Drop: < 1 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 100 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Stainless steel, V2A (1.4305/303)
  • Sensing face: Plastic, PA
  • Full Encapsulation: yes
  • Degree of Protection: IP67
  • Connection: M8 × 1; 3-pin
  • Weight: 3 g
  • MTTFd (EN ISO 13849-1): 5,680.48 a
  • Packaging unit: 1 Piece
  • PNP NO: yes
  • Complementary Products: PNP-NPN Converter BG8V1P-N-2M
