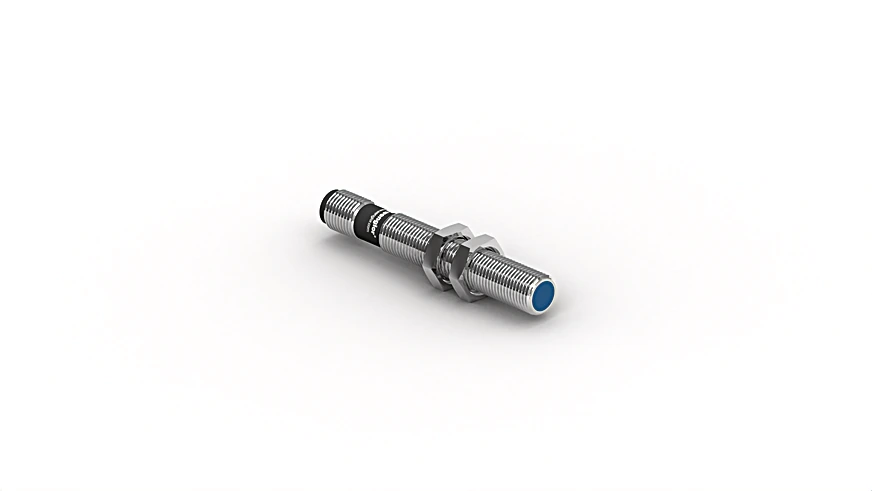

Wenglor IL008BE35VB1 Inductive Sensor with Standard Switching Distances

Features

• Switching Distance: 0.8 mm
• Correction Factors Stainless Steel V2A/CuZn/Al: 0,68/0,45/0,36
• Mounting: Flush

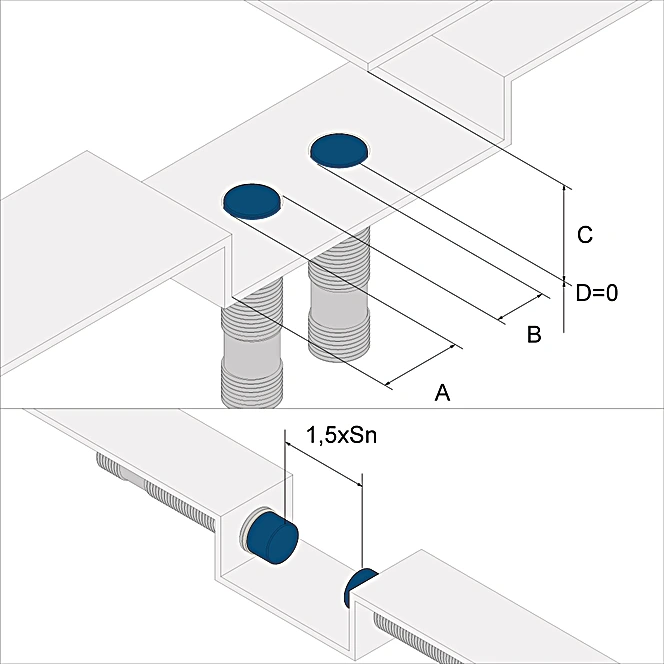

• Mounting A/B/C/D in mm: 0/5/2,4/0
• Switching Hysteresis: < 15 %
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 10 mA
• Switching Frequency: 5 kHz
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 176°F
• Switching Output Voltage Drop: < 1 V
• Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 100 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Stainless steel, V2A (1.4305/303)
• Sensing face: Plastic, PA
• Full Encapsulation: yes
• Degree of Protection: IP67

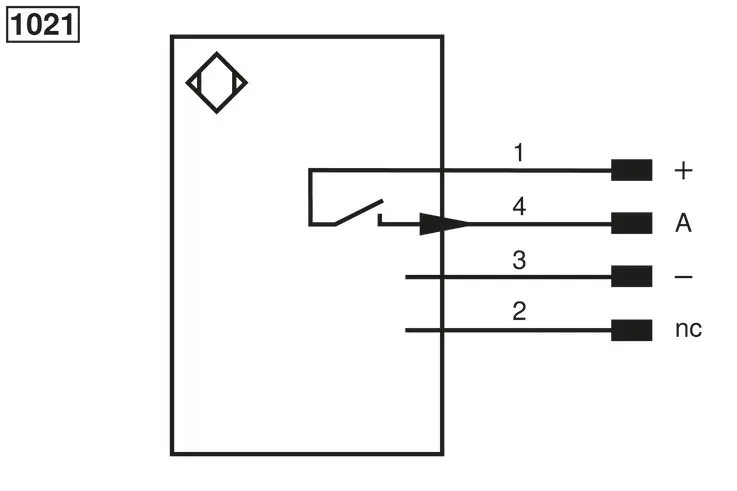

• Connection: M5 × 0,5; 4-pin
• Weight: 7 g
• MTTFd (EN ISO 13849-1): 5,680.48 a
• Packaging unit: 1 Piece
• PNP NO: yes
