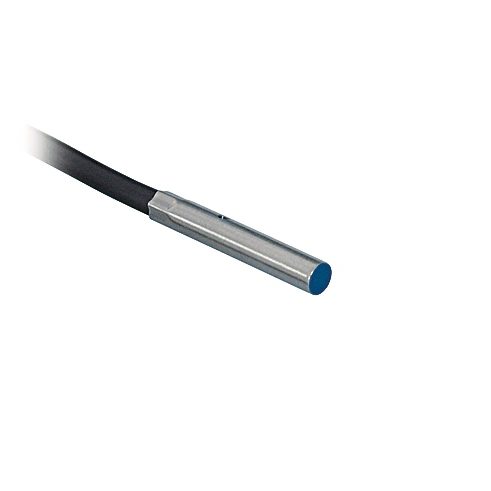

Wenglor IJ008BE25VB Inductive Sensor with Standard Switching Distances

Features

• Switching Distance: 0.8 mm
• Correction Factors Stainless Steel V2A/CuZn/Al: 0,68/0,45/0,36
• Mounting: Flush

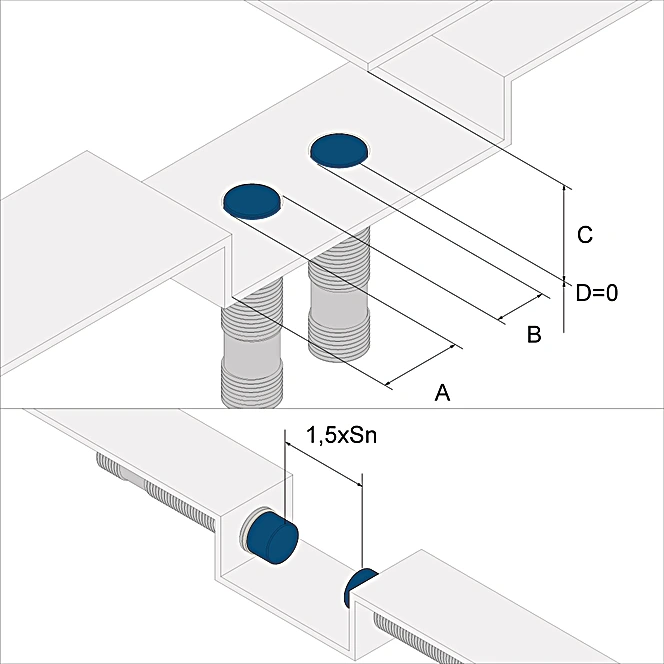

• Mounting A/B/C/D in mm: 0/4/2,4/0
• Switching Hysteresis: < 15 %
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 10 mA
• Switching Frequency: 5 kHz
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 176°F
• Switching Output Voltage Drop: < 1 V
• Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 100 µA
• Short Circuit Protection: yes
• Reverse Polarity and Overload Protection: yes
• Protection Class: III
• Housing Material: Stainless steel, V2A (1.4301/304)
• Sensing face: Plastic, PA
• Full Encapsulation: yes
• Degree of Protection: IP67

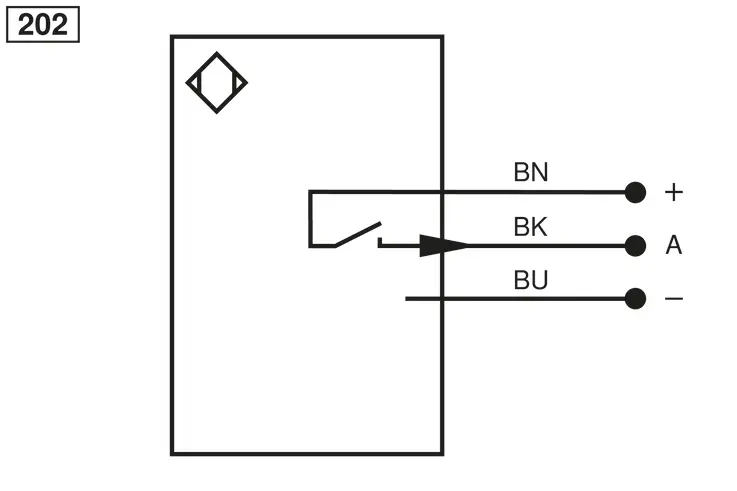

• Connection: Cable; 3-wire
• Cable length (L): 2 m
• Cable Jacket Material: PVC
• Wire cross-section: 0.14 mm²
• Weight: 35 g
• MTTFd (EN ISO 13849-1): 5,680.48 a
• Scope of delivery: 1 × MUTTER-M5-E003 hex nut, 1 × sensor
• Packaging unit: 1 Piece
• PNP NO: yes
