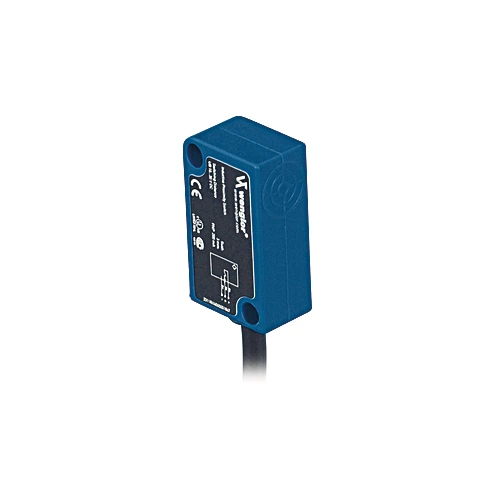

Wenglor IG060NK28VB Inductive Sensor with Standard Switching Distances

Features

• Switching Distance: 6 mm
• Correction Factors Stainless Steel V2A/CuZn/Al: 0,76/0,55/0,54
• Mounting: Non-flush

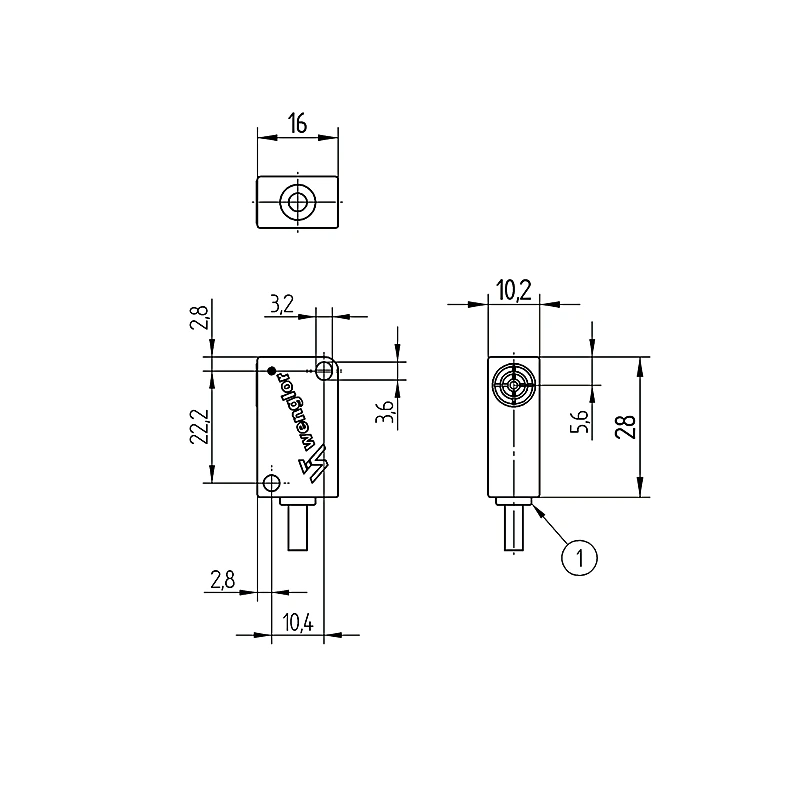

• Mounting A/B/C/D in mm: 25/20/18/16
• Flush mountable in Aluminum: yes
• Switching Hysteresis: < 15 %
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 6 mA
• Switching Frequency: 300 Hz
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 176°F
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 100 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Plastic
• Full Encapsulation: yes
• Degree of Protection: IP67

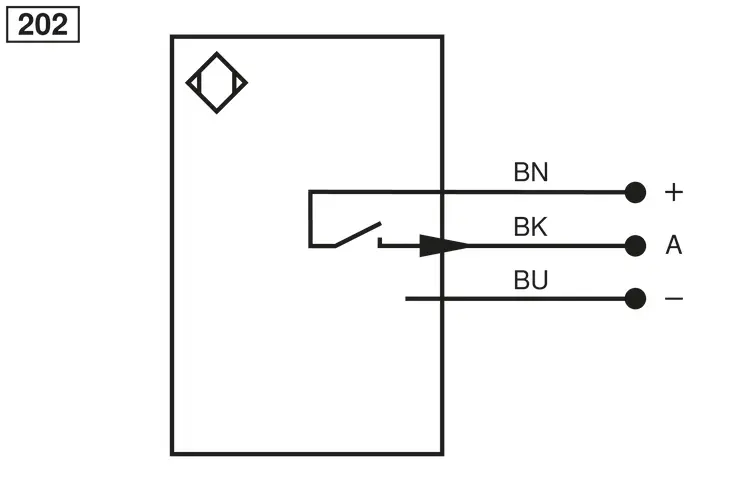

• Connection: Cable; 3-wire
• Cable length (L): 2 m
• Wire cross-section: 0.14 mm²
• Weight: 49 g
• Scope of delivery: 1 × sensor
• PNP NO: yes
