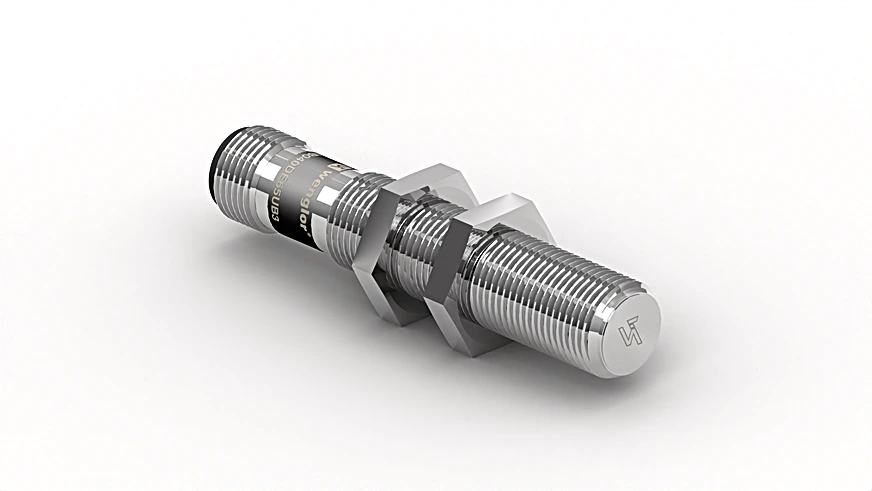

Wenglor IB040DE65UD3 Inductive Sensor with Full-Metal Housing

Features

• Stainless steel housing
• Pressure resistant
• IP68/IP69K
• Switching Distance: 4 mm
• Correction Factors Stainless Steel V2A/CuZn/Al: 0,82/0,35/0,32
• Mounting: Flush

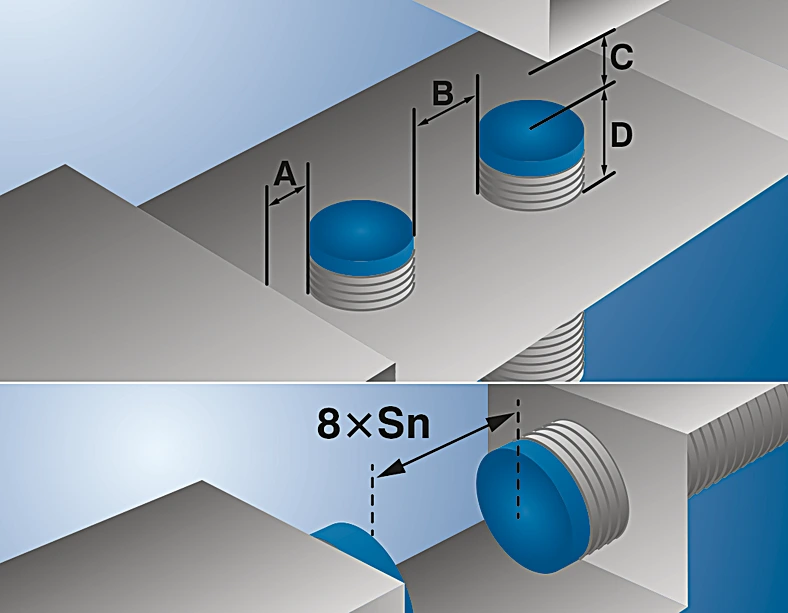

• Mounting A/B/C/D in mm: 0/8/12/0
• Mounting A/B/C/D (V2A) in mm: 0/8/12/0
• Switching Hysteresis: < 15 %
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 15 mA
• Switching Frequency: 500 Hz
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 176°F
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 400 mA
• Residual Current Switching Output: < 100 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Stainless steel, V4A
• Sensing face: Stainless steel, V4A
• Full Encapsulation: yes
• Degree of Protection: IP69K, IP68

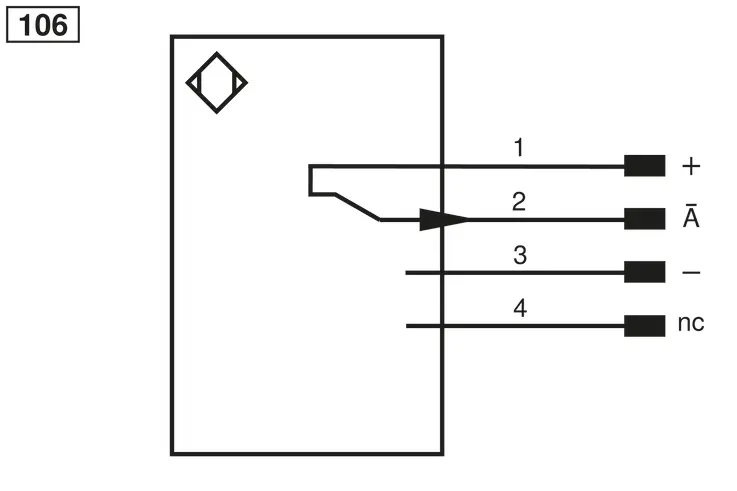

• Connection: M12 × 1; 4-pin
• Pressure Resistance Sensor Area: 60 bar
• Ex II 3G Ex nA IIC T5 Gc X: yes
• Ex II 3D Ex tc IIIC T194°F Dc IP6X X: yes
• Weight: 52 g
• MTTFd (EN ISO 13849-1): 2,065.66 a
• Scope of delivery: 1 × information label ATEX Z0002, 1 × Z0004 hex nut, 1 × sensor
• Packaging unit: 1 Piece
• Approvals: ATEX 3G/3D, Ecolab
• PNP NC: yes
• Complementary Products: Circlip Z0007, PNP-NPN Converter BG2V1P-N-2M
