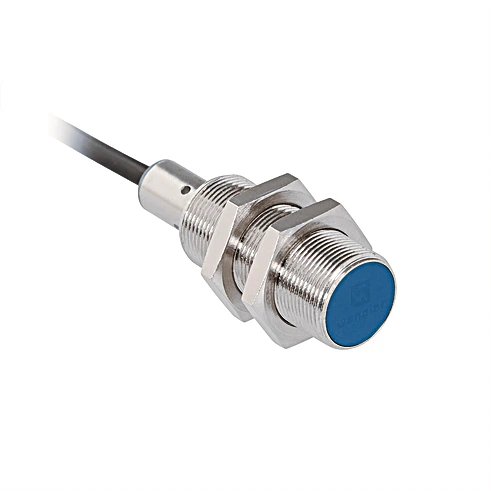

Wenglor I18N006 Inductive Sensor with Standard Switching Distances

Inductive Sensor with Standard Switching Distances.

$79.50
Part Number
  • I18N006
Highlights...

Features

  • Minimal mounting clearance thanks to wenglor weproTec
  • Innovative ASIC circuit technology
  • Integrated error display
  • Switching Distance: 5 mm
  • Correction Factors Stainless Steel V2A/CuZn/Al: 1,10/0,45/0,41
  • Mounting: Flush

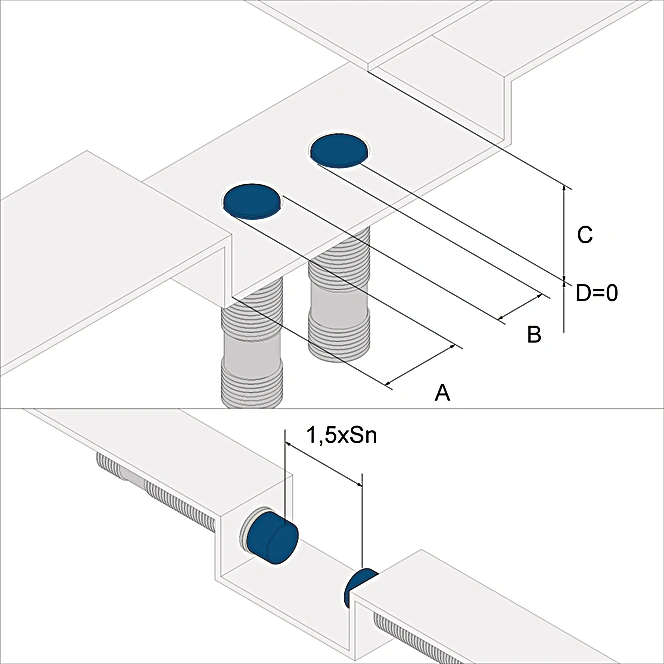

  • Mounting A/B/C/D in mm: 0/24/8/0
  • Mounting B1 in mm: 0 to 12
  • Switching Hysteresis: < 10 %
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 12 mA
  • Switching Frequency: 1,110 Hz
  • Temperature Drift: < 10 %
  • Temperature Range: -40°F to 176°F
  • Switching Output Voltage Drop: < 1 V
  • Switching Output/Switching Current: 150 mA
  • Residual Current Switching Output: < 100 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Brass, nickel-plated
  • Sensing face: Plastic, PBT
  • Degree of Protection: IP67

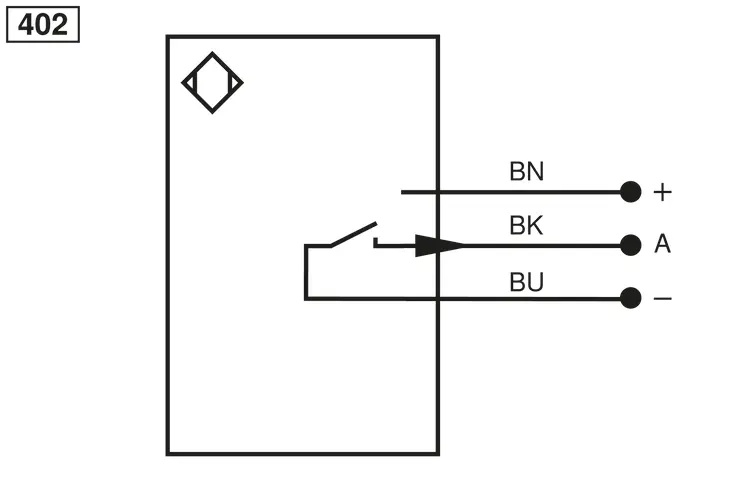

  • Connection: Cable; 3-wire
  • Cable length (L): 2 m
  • Cable Jacket Material: PVC
  • Wire cross-section: 0.22 mm²
  • Weight: 78 g
  • MTTFd (EN ISO 13849-1): 3,706.54 a
  • Scope of delivery: 1 × MUTTER-M18-E001 hex nut, 1 × sensor
  • Packaging unit: 1 Piece
  • Error Indicator: yes
  • NPN NO: yes
Inductive Sensors with standard switching distances are distinguished by rugged design, easy installation and reliable measured values. In addition to error-free operation of several sensors in a very small space, the new generation also provides the possibility of detecting system errors before it's too late thanks to ASIC und wenglor weproTec.
