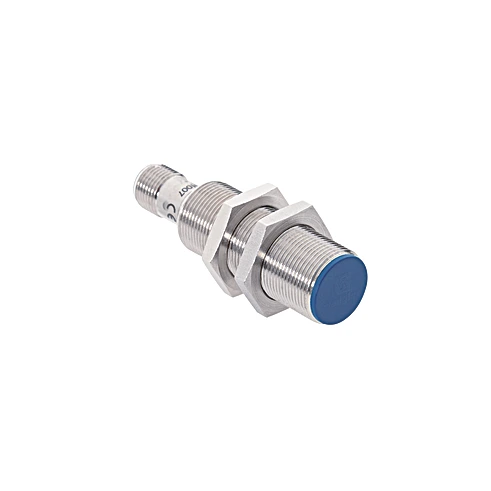

Wenglor I18H013 Inductive Sensor with IO-Link

Inductive Sensor with IO-Link.

$112.00
Part Number
  • I18H013
Highlights...

Features

  • Easy sensor configuration using the IO-Link interface
  • Minimal mounting clearance thanks to wenglor weproTec
  • Innovative ASIC circuit technology
  • Integrated error display and error output
  • Adjustable switching distance
  • Switching Distance: 12 mm
  • Standard Target: 36 × 36 mm
  • Correction Factors Stainless Steel V2A/CuZn/Al: 0,97/0,47/0,43
  • Mounting: semi-flush

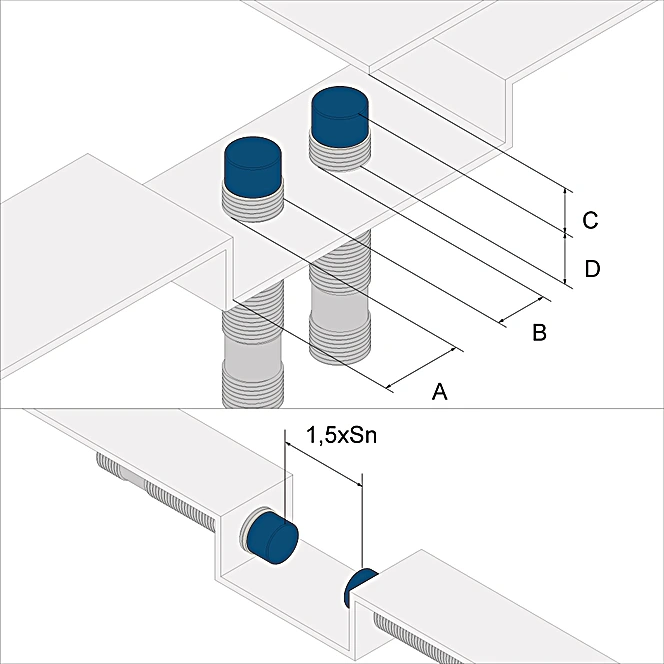

  • Mounting A/B/C/D in mm: 18/46/36/5
  • Mounting B1 in mm: 0 to 28
  • Switching Hysteresis: < 10 %
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 13 mA
  • Switching Frequency: 500 Hz
  • Temperature Drift: < 10 %
  • Temperature Range: -40°F to 176°F
  • Switching Output Voltage Drop: < 1 V
  • Switching Output/Switching Current: 150 mA
  • Residual Current Switching Output: < 100 µA
  • Short Circuit Protection: yes
  • Overload Protection: yes
  • Reverse Polarity Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • Housing Material: Brass, nickel-plated
  • Degree of Protection: IP67

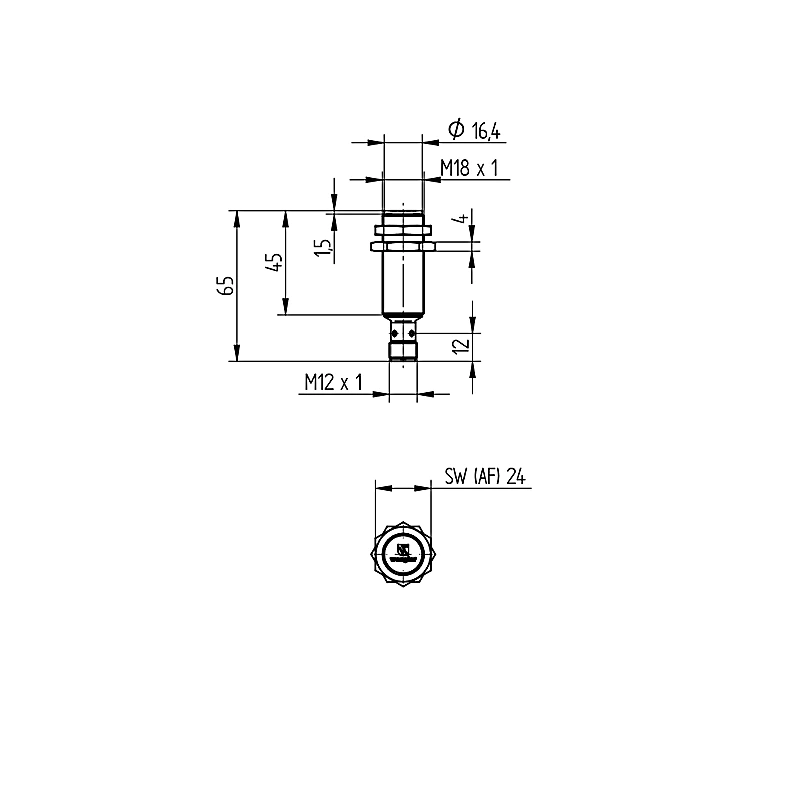

  • Connection: M12 × 1; 4-pin
  • Weight: 55 g
  • MTTFd (EN ISO 13849-1): 3,706.54 a
  • Scope of delivery: 1 × MUTTER-M18-E001 hex nut, 1 × sensor
  • Packaging unit: 1 Piece
  • Error Indicator: yes
  • Programmable switching distance: 8/10/12 mm
  • Programmable switching frequency: yes
  • IO-Link: yes
  • Programmable error output: yes
  • PNP NO: yes

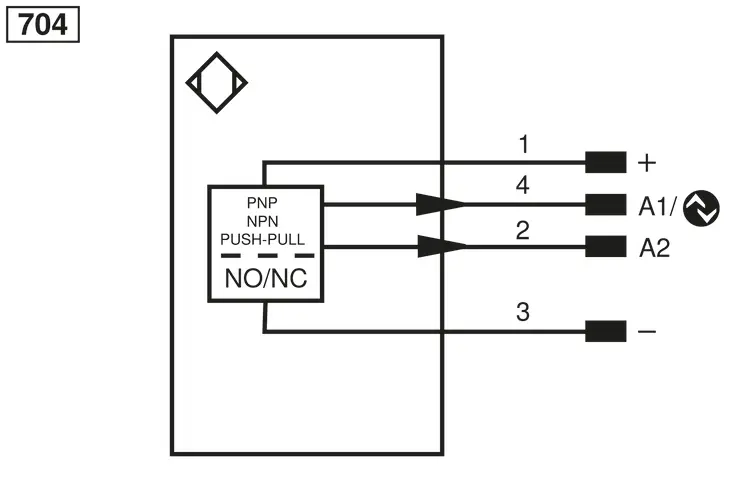

  • Output: Error Output, Push-pull, NPN, PNP
  • Circuit: NC, NC/NO, NO
  • Complementary Products: IO-Link Master, Software
The Inductive Sensors have not only been equipped with ASIC, but rather with an IO-Link interface as well for ideal integration into networks. As a result, a total of three switching distances and two switching frequencies can be selected, and PNP/NPN as well as NO/NC/antivalent options can be set as desired. This reduces the number of variants while simultaneously expanding the scope of functions.
