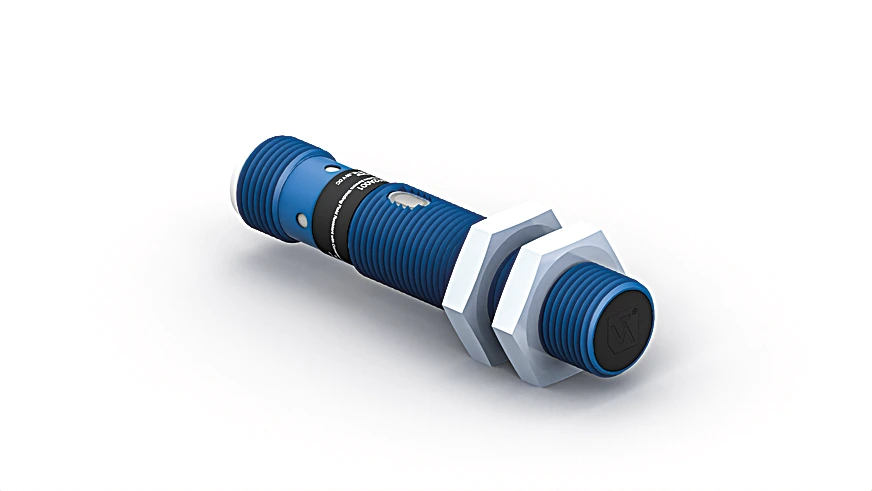

Wenglor I12A001 Inductive Sensor Welding Field Resistant with Correction Factor 1

Inductive Sensor Welding Field Resistant with Correction Factor 1.

$90.10
Part Number
  • I12A001
Highlights...

Features

  • Extended temperature range
  • Greatest possible switching distances with correction factor 1
  • Very good magnetic and electromagnetic immunity
  • Very high switching frequency
  • Welding field resistant thanks to PTFE coating
  • Switching Distance: 4 mm
  • Correction Factors Stainless Steel V2A/CuZn/Al: 1,2/1,21/1,22
  • Mounting: Flush

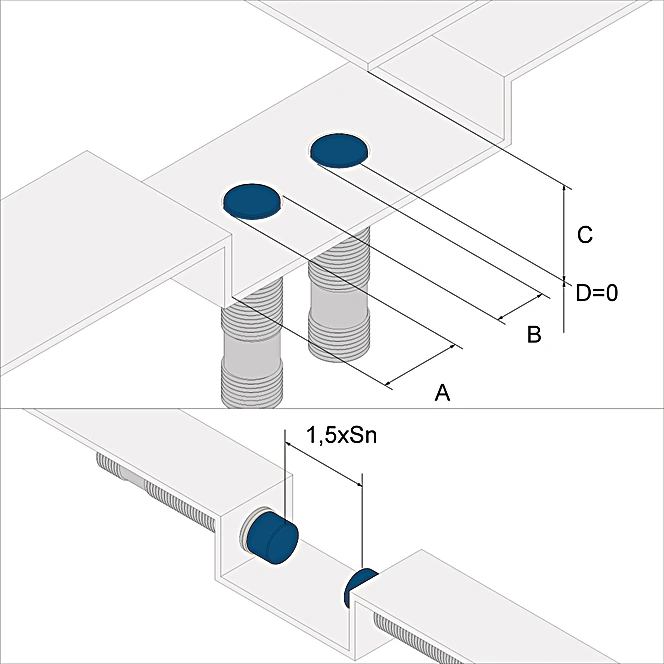

  • Mounting A/B/C/D in mm: 0/5/12/0
  • Switching Hysteresis: < 15 %
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 4,200 Hz
  • Temperature Drift (-13°F < Tu < 140°F): 10 %
  • Temperature Drift (Tu < -13°F, Tu > 140°F): 20 %
  • Temperature Range: -40°F to 176°F
  • Switching Output Voltage Drop: < 2.5 V
  • Switching Output/Switching Current: 200 mA
  • Resistant to Magnetic Fields: 200 mT
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: II
  • Protective Insulation, Rated Voltage: 50 V
  • Housing Material: Brass, nickel-plated, PTFE
  • Sensing face: Plastic, PBT
  • Welding Field Resistant: yes
  • Full Encapsulation: yes
  • Degree of Protection: IP67

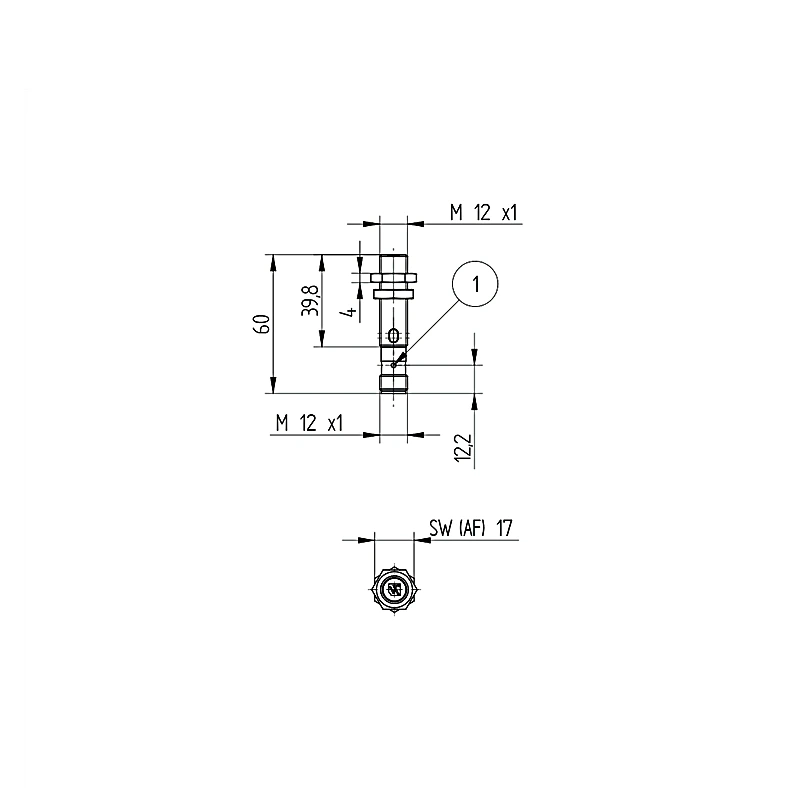

  • Connection: M12 × 1; 4-pin
  • Weight: 28 g
  • MTTFd (EN ISO 13849-1): 2,193.68 a
  • Scope of delivery: 1 × MUTTER-M12-E004 hex nut, 1 × sensor
  • Packaging unit: 1 Piece
  • Error Indicator: yes
  • PNP NC, PNP NO: yes

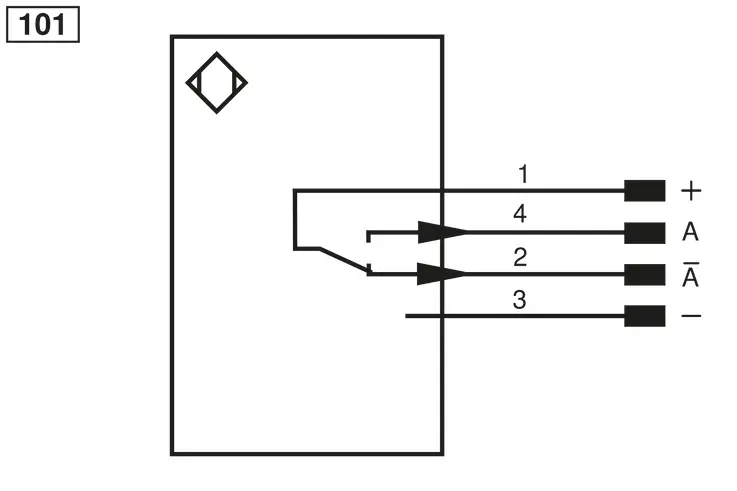

  • Circuit: NC, NC+NO, NO
Welding field resistant inductive sensors with correction factor 1 offer a unique combination of technical performance features: increased switching distances for reliable object detection, high switching frequencies for applications with high process speeds and an extended temperature range for use under various ambient conditions. A switching status LED for diagnosis functions reduces system downtime. In order to simplify integration, all housing designs are available in flush or non-flush mounting variants.
