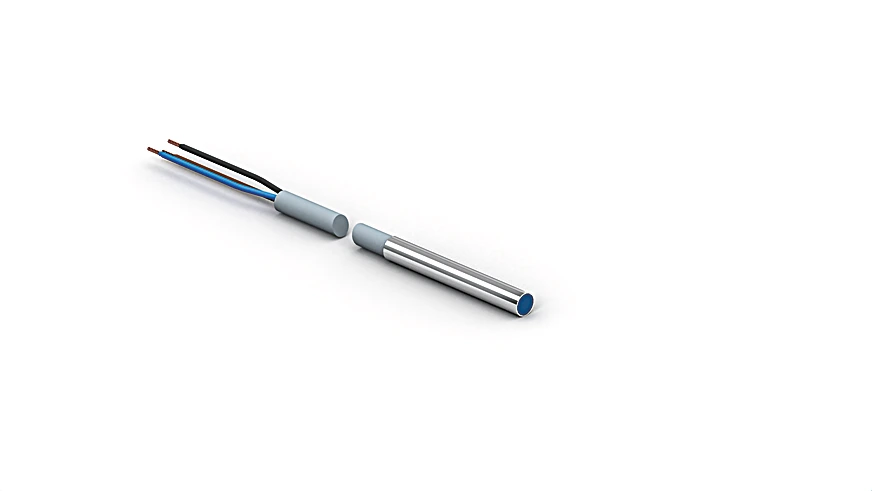

Wenglor I03H004 Inductive Sensor with Increased Switching Distance

Inductive Sensor with Increased Switching Distance.

$104.00
Part Number
  • I03H004
Highlights...

Features

  • Increased switching distance
  • High switching frequency of 3,000 Hz
  • Integrated LED adjustment tool
  • Miniature stainless steel design
  • Switching Distance: 1 mm
  • Correction Factors Stainless Steel V2A/CuZn/Al: 0,80/0,60/0,50
  • Mounting: Flush

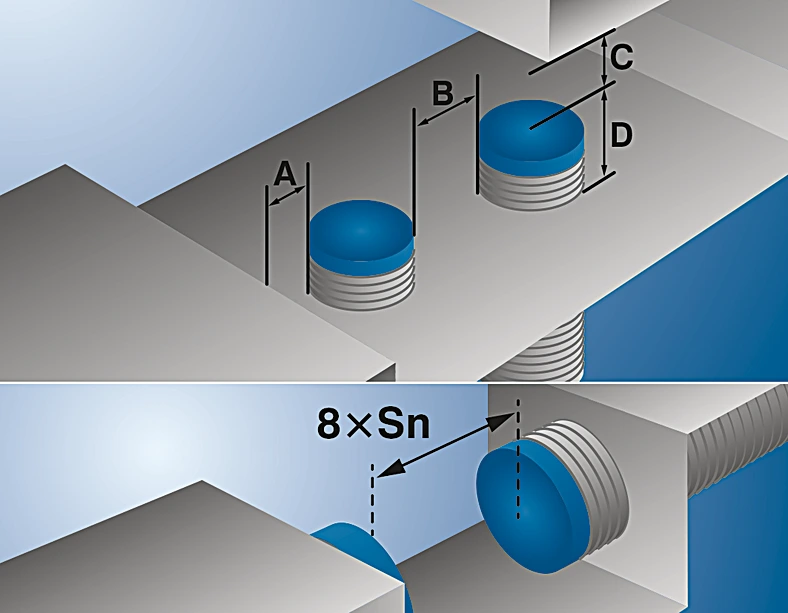

  • Mounting A/B/C/D in mm: 1/2/3/0
  • Switching Hysteresis: < 10 %
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): ≤ 10 mA
  • Switching Frequency: 3,000 Hz
  • Temperature Drift: ≤ 10 %
  • Temperature Range: -13°F to 158°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: ≤ 100 mA
  • Residual Current Switching Output: ≤ 0.1 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Stainless steel, V2A（1.4306/304L）, Plastic, POM
  • Degree of Protection: IP67

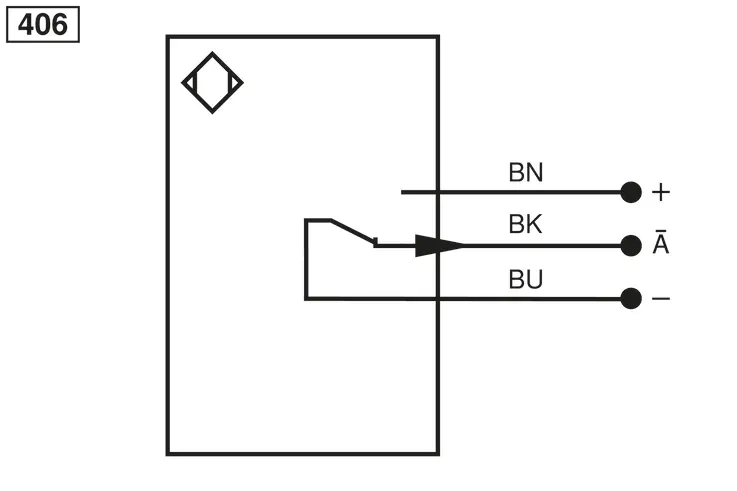

  • Connection: Cable; 3-wire
  • Cable length (L): 2 m
  • Cable Jacket Material: Plastic, PUR
  • Weight: 16 g
  • MTTFd (EN ISO 13849-1): 3,110 a
  • Scope of delivery: 1 × sensor
  • Packaging unit: 1 Piece
  • LED adjustment tool: yes
  • NPN NC: yes
These inductive sensors feature increased switching distances and high switching frequencies in a miniature design. This provides effective detection of end positions and the smallest of parts, even in very confined spaces, and it means they can be used in fast assembly processes. The robust stainless steel housing and the integrated, bright LED adjustment tool ensure easy installation and a long service life.
